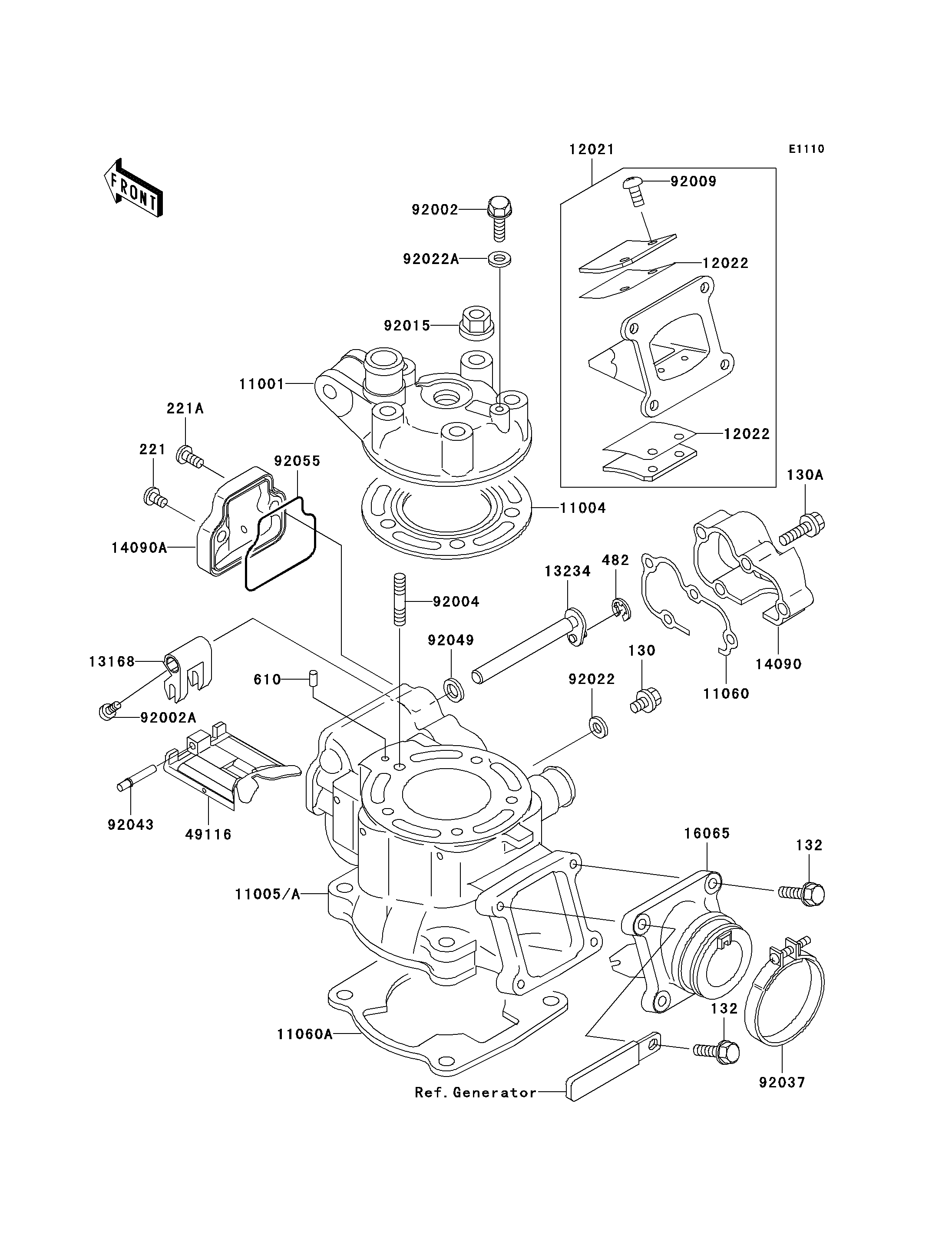

Parts Diagrams |
130
130A
132
132
221
221A
482
610
11001
11004
11005
11060
11060A
12021
12022
12022
13168
13234
14090
14090A
16065
49116
92002
92002A
92004
92009
92015
92022
92022A
92037
92043
92049
92055
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X8 | 130 | 130B0608 | 1 | ||
BOLT-FLANGED | 130A | 130G0525 | 4 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 4 | ||
SCREW-CSK-CROS,6X16 | 221 | 221B0616 | 1 | ||
SCREW-CSK-CROS,6X20 | 221A | 221B0620 | 1 | ||
CIRCLIP-TYPE-E | 482 | 482J5000 | 1 | ||
ROLLER,4X8 | 610 | 610A0408 | 1 | ||
HEAD-CYLINDER | 11001 | 11001-1463 | 1 | ||
GASKET-HEAD | 11004 | 11004-1214 | 1 | ||
CYLINDER-ENGINE | 11005 | 11005-1943 | 1 | ||
GASKET,GOVERNOR COVER | 11060 | 11060-1778 | 1 | ||
GASKET,CYLINDER BASE | 11060A | 11060-1779 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-1123 | 1 | ||
VALVE-REED | 12022 | 12022-1084 | 2 | ||
LEVER,MAIN VALVE | 13168 | 13168-1499 | 1 | ||
SHAFT-COMP | 13234 | 13234-1105 | 1 | ||
COVER | 14090 | 14090-1811 | 1 | ||
COVER | 14090A | 14090-1812 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1372 | 1 | ||
VALVE-ASSY | 49116 | 49116-1158 | 1 | ||
BOLT,6X10 | 92002 | 92002-1222 | 1 | ||
BOLT,SOCKET,4X8 | 92002A | 92002-1403 | 1 | ||
STUD,8X32 | 92004 | 92004-1253 | 5 | ||
SCREW,REED VALVE | 92009 | 92009-1014 | 4 | ||
NUT,8MM | 92015 | 92015-1143 | 5 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
CLAMP | 92037 | 92037-1843 | 1 | ||
PIN,MAIN VALVE | 92043 | 92043-1470 | 1 | ||
SEAL-OIL,SD088144 | 92049 | 92049-1238 | 1 | ||
RING-O | 92055 | 92055-1566 | 1 |
