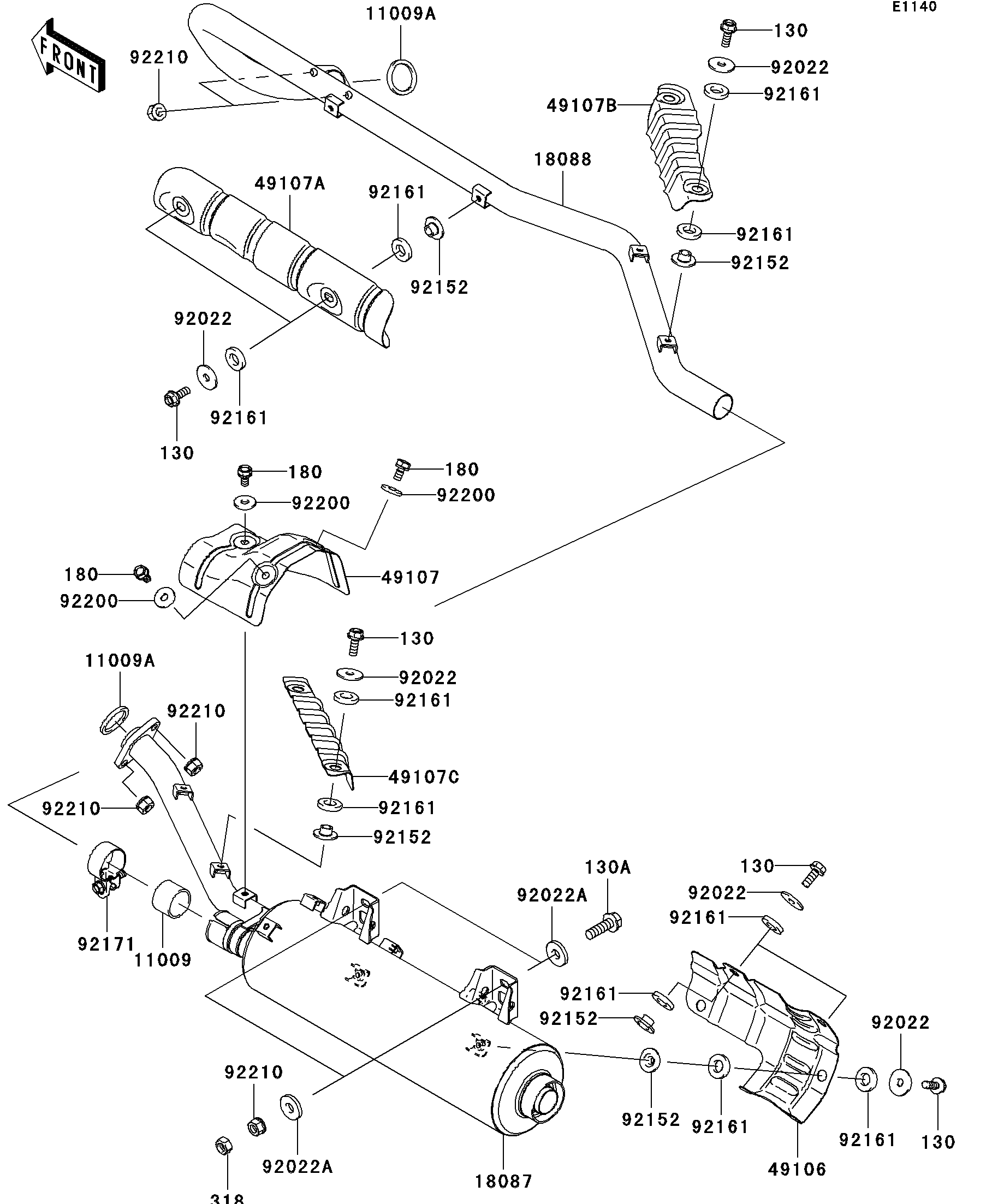

2008 Brute Force® 650 4x4i - Muffler(s)
11009
11009A
11009A
130
130
130
130
130
130A
180
180
180
18087
18088
318
49106
49107
49107A
49107B
49107C
92022
92022
92022
92022
92022
92022A
92022A
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92171
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 1 | ||
| GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130Y0616 | 10 | ||
| BOLT-FLANGED,8X25 | 130A | 130Z0825 | 2 | ||
| BOLT-UPSET-WS,6X12 | 180 | 180Y0612 | 3 | ||
| MUFFLER | 18087 | 18087-0098 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-0146 | 1 | ||
| NUT-HEX-SMALL,8MM | 318 | 318G0800 | 2 | ||
| COVER-MUFFLER | 49106 | 49106-0048 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107 | 49107-0050 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49107A | 49107-0065 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE LH | 49107B | 49107-0066 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE RH | 49107C | 49107-0067 | 1 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 10 | ||
| WASHER,8.5X22X3.2 | 92022A | 92022-276 | 4 | ||
| COLLAR | 92152 | 92152-0423 | 10 | ||
| DAMPER | 92161 | 92161-0319 | 20 | ||
| CLAMP | 92171 | 92171-1330 | 1 | ||
| WASHER,6.5X18X2.0 | 92200 | 92200-2035 | 3 | ||
| NUT,8MM | 92210 | 92210-1242 | 6 |
