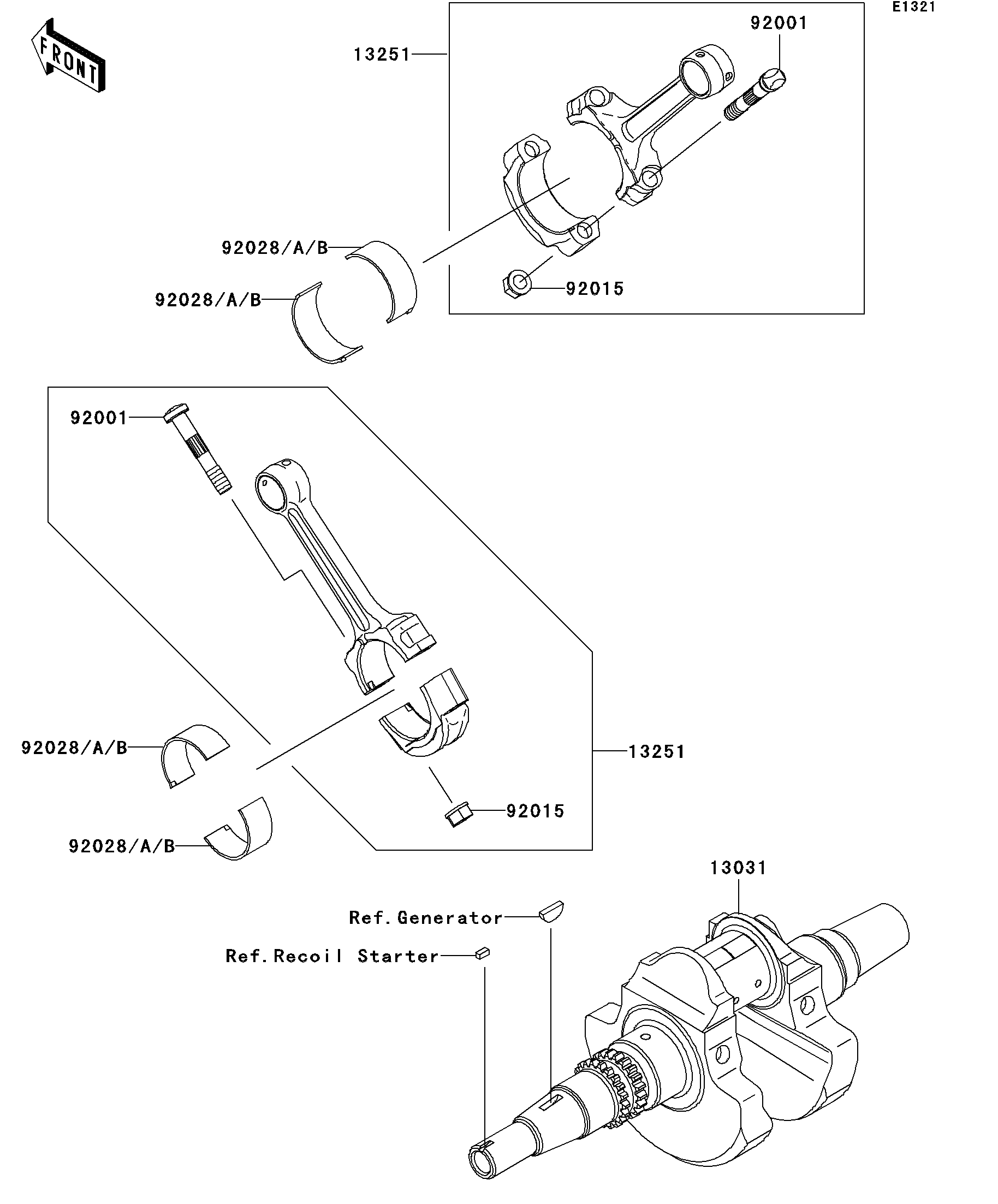

2008 Brute Force® 650 4x4i - Crankshaft
13031
13251
13251
92001
92001
92015
92015
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CRANKSHAFT-COMP | 13031 | 13031-0078 | 1 | ||
ROD-ASSY-CONNECTING | 13251 | 13251-1130 | 2 | ||
BOLT,CONNECTING ROD | 92001 | 92001-1980 | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
BUSHING,CONNECTING ROD,GREEN | 92028 | 92028-1961 | AR | ||
BUSHING,CONNECTING ROD,YELLOW | 92028A | 92028-1962 | 4 | ||
BUSHING,CONNECTING ROD,BROWN | 92028B | 92028-1963 | AR |
CRANKSHAFT-COMP | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING | |
REF # | 13251 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,CONNECTING ROD | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,GREEN | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,YELLOW | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,BROWN | |
REF # | 92028B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
