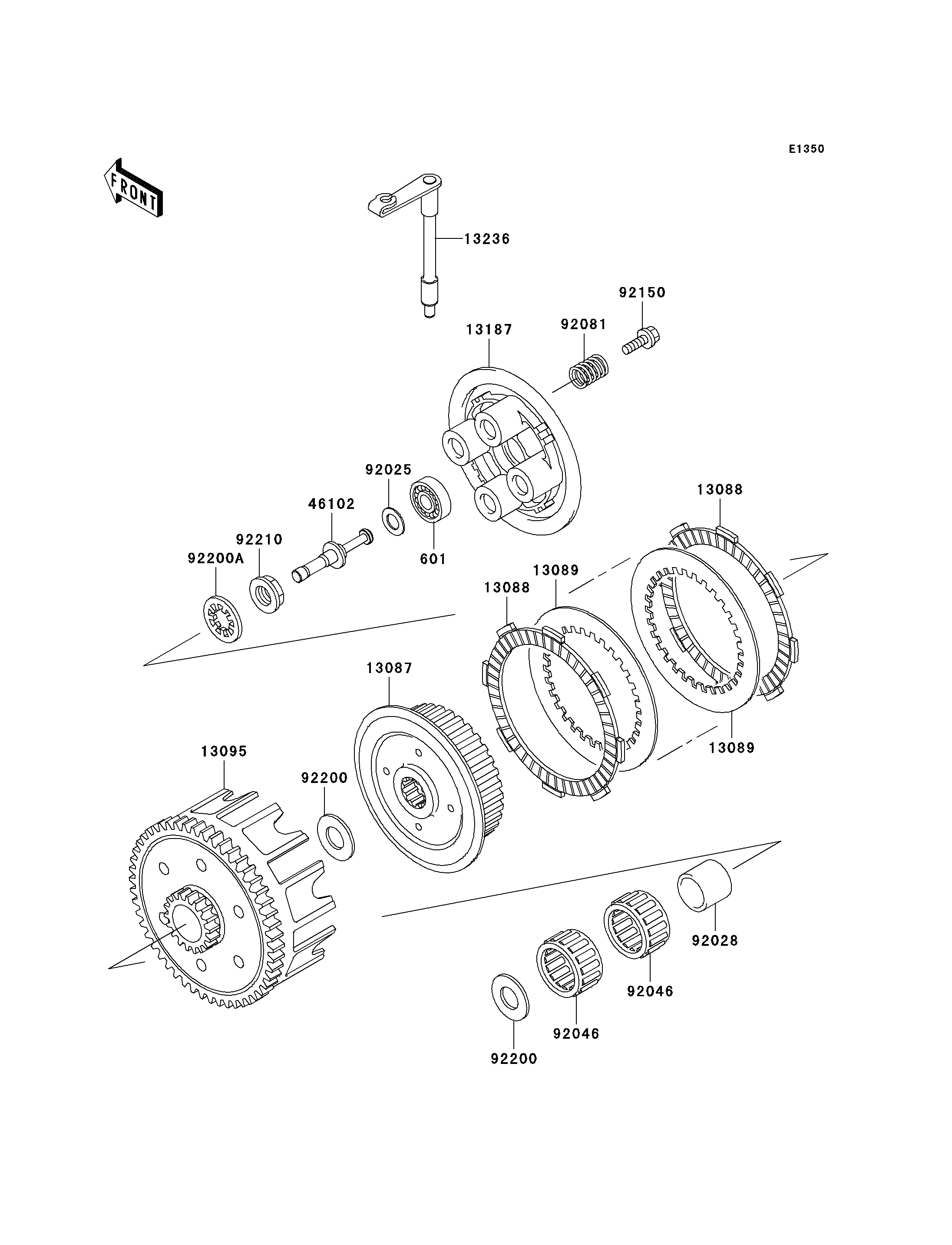

Parts Diagrams |
601
13087
13088
13088
13089
13089
13095
13187
13236
46102
92025
92028
92046
92046
92081
92150
92200
92200
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BEARING-BALL | 601 | 601A6001 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1170 | 1 | ||
| PLATE-FRICTION,ID=91 | 13088 | 13088-1016 | 6 | ||
| PLATE-CLUTCH | 13089 | 13089-1120 | 5 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1406 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1013 | 1 | ||
| LEVER-COMP,RELEASE | 13236 | 13236-1298 | 1 | ||
| ROD,CLUTCH RELEASE | 46102 | 46102-1409 | 1 | ||
| SHIM | 92025 | 92025-1780 | 1 | ||
| BUSHING,20X25X21.1 | 92028 | 92028-1811 | 1 | ||
| BEARING-NEEDLE,KT252910EG | 92046 | 92046-1254 | 2 | ||
| SPRING,CLUTCH | 92081 | 92081-1492 | 4 | ||
| BOLT | 92150 | 92150-1715 | 4 | ||
| WASHER,20.3X33X2.0 | 92200 | 92200-1351 | 2 | ||
| WASHER | 92200A | 92200-1352 | 1 | ||
| NUT,16MM | 92210 | 92210-1113 | 1 |
