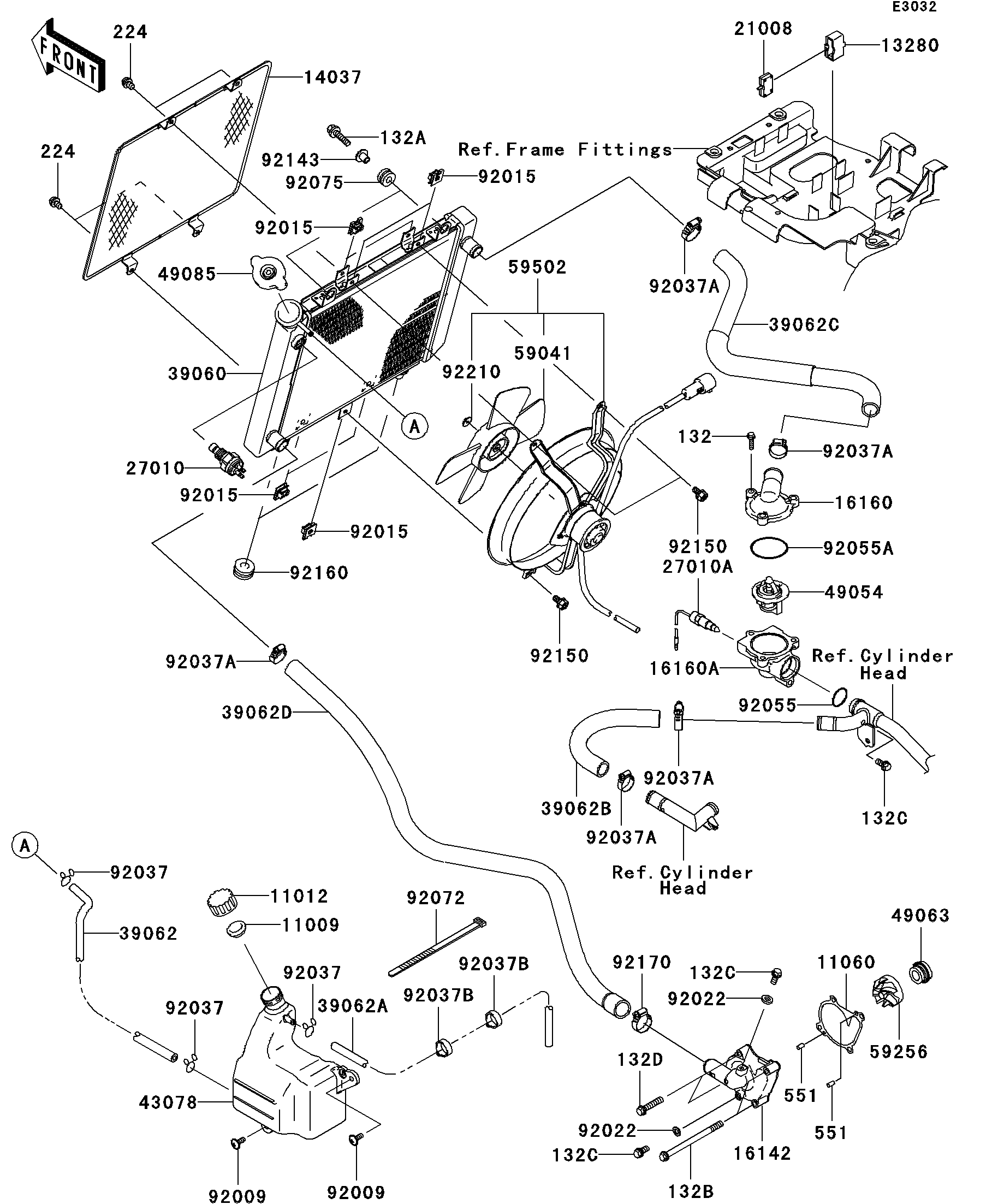

2008 Brute Force® 650 4x4i - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11060
11060
132
132
13280
13280
14037
14037
16142
16142
16160
16160
16160A
16160A
21008
21008
27010
27010
27010A
27010A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
43078
43078
49054
49054
49063
49063
49085
49085
59041
59041
59256
59256
59502
59502
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92055
92055
92055A
92055A
92072
92072
92075
92075
92143
92143
92150
92150
92150
92150
92160
92160
92170
92170
92210
92210
132A
132A
132B
132B
132C
132C
132C
132C
132C
132C
132D
132D
224
224
224
224
551
551
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
GASKET,WATER PUMP 11060 11060-1964 1
BOLT-FLANGED-SMALL,6X20 132 132E0620 3
HOLDER,BREAKER 13280 13280-0082 1
SCREEN 14037 14037-0045 1
COVER-PUMP,WATER 16142 16142-0002 1
BODY,THERMOSTAT,UPP 16160 16160-0046 1
BODY,THERMOSTAT,LWR 16160A 16160-0067 1
BREAKER,CIRCUIT 21008 21008-0002 1
SWITCH,FAN 27010 27010-1202 1
SWITCH,SENSOR WATER 27010A 27010-1346 1
RADIATOR 39060 39060-0016 1
HOSE-COOLING,5.5X10.5X1200 39062 39062-0034 1
HOSE-COOLING,5.5X10.5X890 39062A 39062-0056 1
HOSE-COOLING,FR HEAD-THERMO 39062B 39062-0178 1
HOSE-COOLING,THERMO-RADIATOR 39062C 39062-0179 1
HOSE-COOLING,RAD-WATER PUMP 39062D 39062-0180 1
RESERVOIR 43078 43078-0024 1
THERMOSTAT 49054 49054-1055 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FAN 59041 59041-0003 1
IMPELLER 59256 59256-1069 1
FAN-ASSY 59502 59502-0022 1
SCREW,6X16 92009 92009-1694 2
NUT 92015 92015-1487 7
WASHER,6.2X11X1 92022 92022-304 2
CLAMP,TUBE 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1589 5
CLAMP,HOSE 92037B 92037-1827 2
RING-O,22.1X2.4 92055 92055-1081 1
RING-O,44.7X2.4 92055A 92055-1279 1
BAND,L=123 92072 92072-030 1
DAMPER 92075 92075-209 2
COLLAR 92143 92143-1353 2
BOLT,6X12 92150 92150-1186 3
DAMPER 92160 92160-1007 2
CLAMP 92170 92170-1497 1
NUT 92210 92210-0258 1
BOLT-FLANGED-SMALL,6X25 132A 132H0625 2
BOLT-FLANGED-SMALL,6X90 132B 132J0690 2
BOLT-FLANGED-SMALL,6X12 132C 132Y0612 3
BOLT-FLANGED-SMALL,6X30 132D 132Y0630 2
SCREW-PAN-WP-CROS,6X10 224 224C0610 4
PIN-DOWEL,4X8 551 551A0408 2
