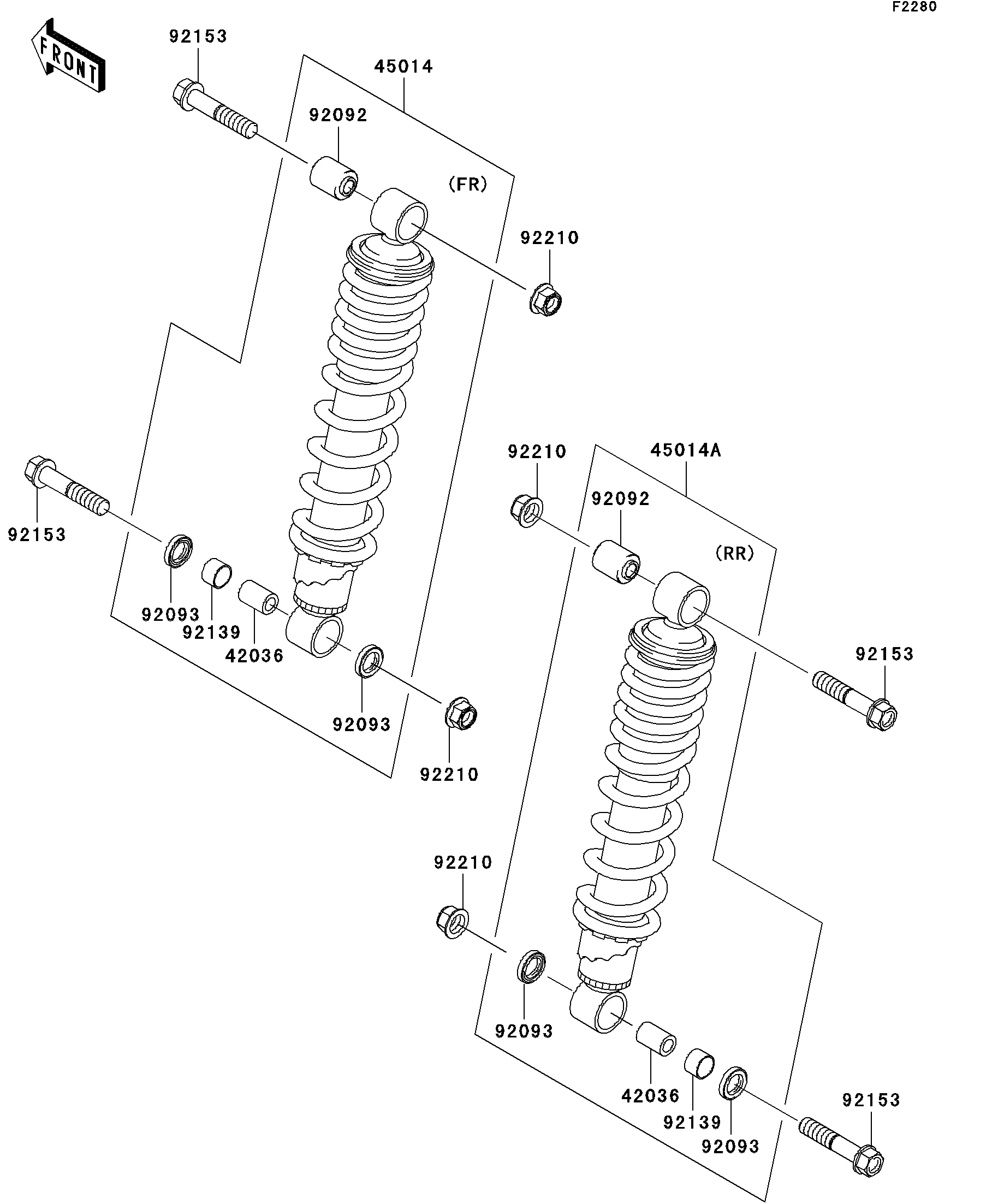

2008 Brute Force® 650 4x4i - Shock Absorber(s)

42036
42036
45014
45014A
92092
92092
92093
92093
92093
92093
92139
92139
92153
92153
92153
92153
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SLEEVE 42036 42036-0018 4
SHOCKABSORBER,FR 45014 45014-0138 2
SHOCKABSORBER,RR 45014A 45014-0139 2
BUSHING-RUBBER 92092 92092-0007 4
SEAL 92093 92093-0033 8
BUSHING 92139 92139-0084 4
BOLT,FLANGED,10X50 92153 92153-1139 8
NUT,LOCK,FLANGED,10MM 92210 92210-0276 8
