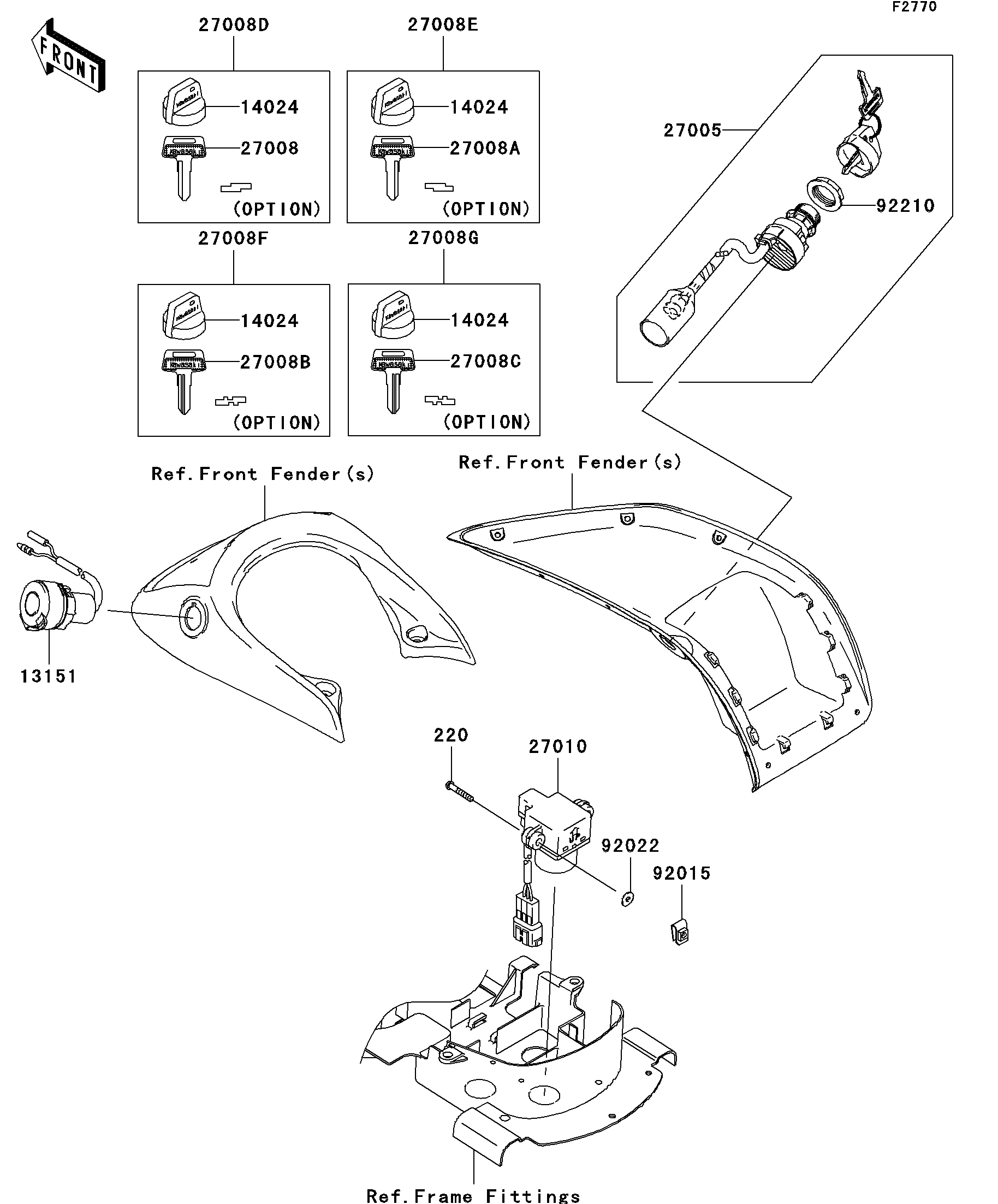

2008 Brute Force® 650 4x4i - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
13151
14024
14024
14024
14024
220
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
92015
92022
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151 13151-0003 1
COVER,KEY 14024 14024-1551 4 (OPTION)
SCREW-PAN-CROS,4X25 220 220B0425 2
SWITCH-ASSY-IGNITION 27005 27005-0019 1
KEY-LOCK,BLANK 27008 27008-1041 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1042 1 (OPTION)
KEY-LOCK,BLANK 27008B 27008-1043 1 (OPTION)
KEY-LOCK,BLANK 27008C 27008-1044 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008D 27008-1132 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008E 27008-1133 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008F 27008-1134 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008G 27008-1135 1 (OPTION)
SWITCH,INVERT SENSOR 27010 27010-1421 1
NUT,4MM 92015 92015-1567 2
WASHER,4.3X12.5X1 92022 92022-1888 2
NUT,IGNITION SWITCH 92210 92210-1109 1
