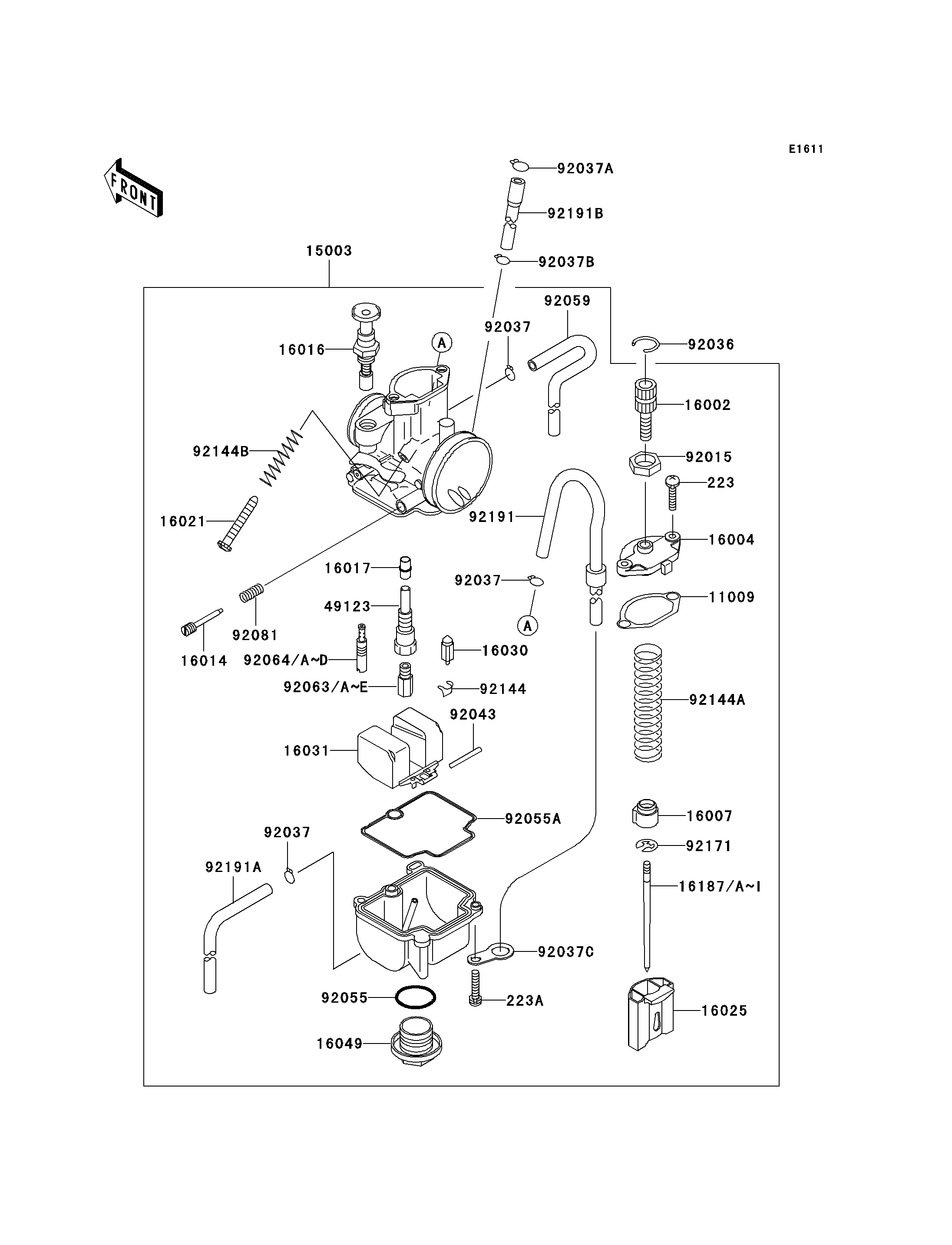

Parts Diagrams |
11009
11009
15003
15003
16002
16002
16004
16004
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16049
16049
16187
16187
16187A
16187A
16187B
16187B
16187C
16187C
16187D
16187D
16187E
16187E
16187F
16187F
16187G
16187G
16187H
16187H
16187I
16187I
49123
49123
92015
92015
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92043
92043
92055
92055
223
223
223A
223A
92055A
92055A
92059
92059
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92081
92081
92144
92144
92144A
92144A
92144B
92144B
92171
92171
92191
92191
92191A
92191A
92191B
92191B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MIXING CHAMBER | 11009 | 11009-1759 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-1643 | 1 | ||
ADJUSTER-CABLE | 16002 | 16002-1056 | 1 | ||
CAP-CHAMBER,MIXING | 16004 | 16004-1065 | 1 | ||
SEAT-SPRING,THROTTLE VALVE | 16007 | 16007-1155 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
PLUNGER,STARTER | 16016 | 16016-1075 | 1 | ||
JET-NEEDLE | 16017 | 16017-1431 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1161 | 1 | ||
VALVE-THROTTLE,CA3.5 | 16025 | 16025-1220 | 1 | ||
VALVE-FLOAT | 16030 | 16030-1064 | 1 | ||
FLOAT | 16031 | 16031-1065 | 1 | ||
COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
NEEDLE-JET,NAPD | 16187 | 16187-1177 | 1 | (OPTION) | |
NEEDLE-JET,NAPE | 16187A | 16187-1178 | 1 | (OPTION) | |
NEEDLE-JET,NAPF | 16187B | 16187-1179 | 1 | ||
NEEDLE-JET,NAPG | 16187C | 16187-1180 | 1 | (OPTION) | |
NEEDLE-JET,NAPH | 16187D | 16187-1181 | 1 | (OPTION) | |
NEEDLE-JET,NAQD | 16187E | 16187-1183 | 1 | (OPTION) | |
NEEDLE-JET,NAQE | 16187F | 16187-1184 | 1 | (OPTION) | |
NEEDLE-JET,NAQF | 16187G | 16187-1185 | 1 | (OPTION) | |
NEEDLE-JET,NAQG | 16187H | 16187-1186 | 1 | (OPTION) | |
NEEDLE-JET,NAQH | 16187I | 16187-1187 | 1 | (OPTION) | |
HOLDER-MAIN JET | 49123 | 49123-1054 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 92015-1574 | 1 | ||
RING-SNAP | 92036 | 92036-018 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1396 | 3 | ||
CLAMP,TUBE | 92037A | 92037-147 | 1 | ||
CLAMP | 92037B | 92037-1712 | 1 | ||
CLAMP,HOSE | 92037C | 92037-1969 | 1 | ||
PIN,FLOAT | 92043 | 92043-1207 | 1 | ||
RING-O,MAIN JET COVER | 92055 | 92055-1167 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223C0414 | 2 | ||
SCREW-PAN-WS-CROS | 223A | 223C0416 | 2 | ||
RING-O,FLOAT CHAMBER | 92055A | 92055-1389 | 1 | ||
TUBE,4X7X360 | 92059 | 92059-1941 | 1 | ||
JET-MAIN,#132 | 92063 | 92063-1337 | 1 | (OPTION) | |
JET-MAIN,#135 | 92063A | 92063-1338 | 1 | (OPTION) | |
JET-MAIN,#138 | 92063B | 92063-1359 | 1 | ||
JET-MAIN,#140 | 92063C | 92063-1360 | 1 | (OPTION) | |
JET-MAIN,#142 | 92063D | 92063-1361 | 1 | (OPTION) | |
JET-MAIN,#148 | 92063E | 92063-1363 | 1 | (OPTION) | |
JET-PILOT,#40 | 92064 | 92064-1140 | 1 | (OPTION) | |
JET-PILOT,#42 | 92064A | 92064-1141 | 1 | (OPTION) | |
JET-PILOT,#45 | 92064B | 92064-1142 | 1 | ||
JET-PILOT,#48 | 92064C | 92064-1143 | 1 | (OPTION) | |
JET-PILOT,#50 | 92064D | 92064-1144 | 1 | (OPTION) | |
SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
SPRING,FLOAT VALVE | 92144 | 92144-1178 | 1 | ||
SPRING,THROTTLE VALVE | 92144A | 92144-1566 | 1 | ||
SPRING,THROTTLE STOP SCREW | 92144B | 92144-1782 | 1 | ||
CLAMP | 92171 | 92171-1323 | 1 | ||
TUBE,4X7X560 | 92191 | 92191-1243 | 1 | ||
TUBE,4X7X420 | 92191A | 92191-1591 | 1 | ||
TUBE | 92191B | 92191-1610 | 1 |
