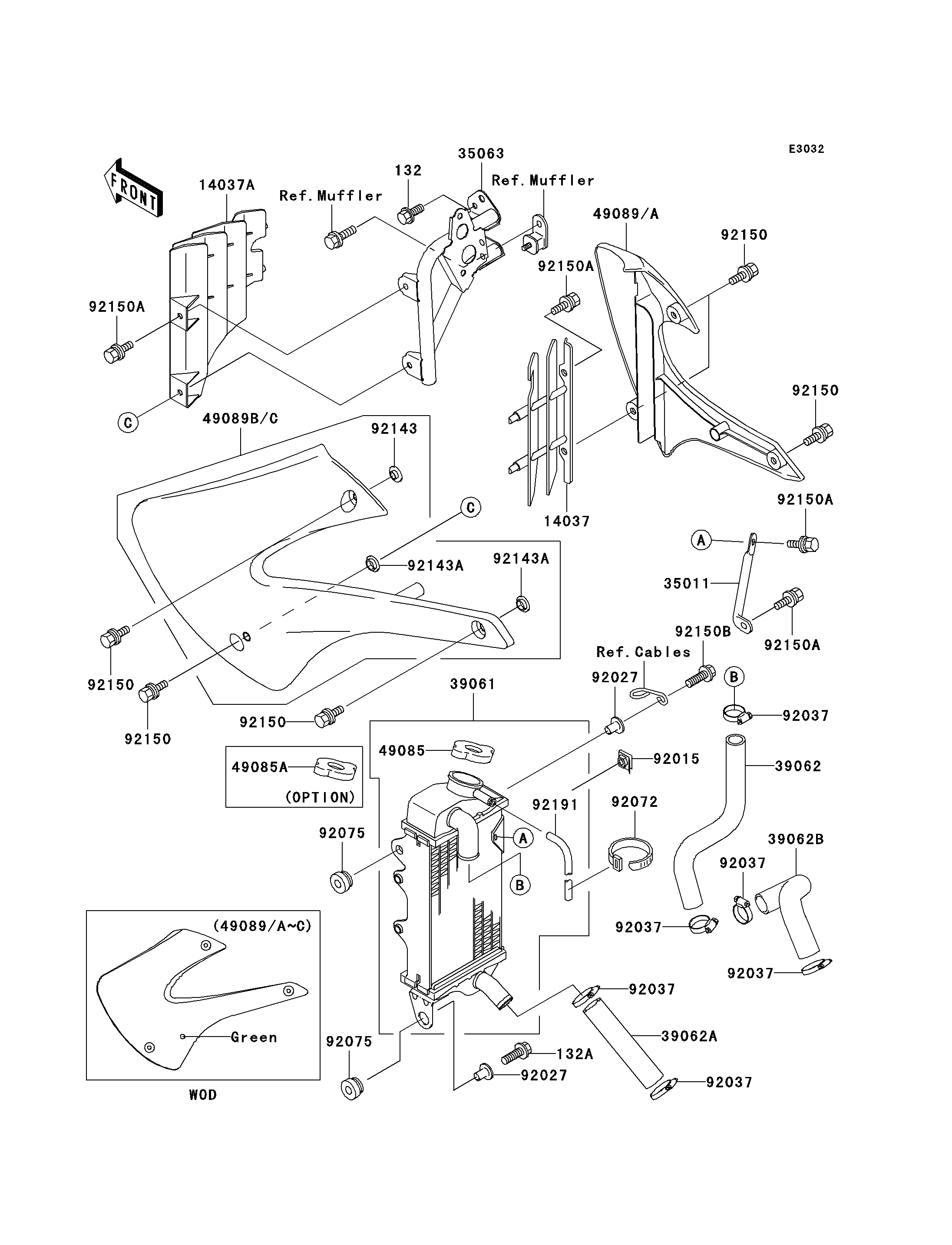

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0625 | 1 | ||
SCREEN,RH,WHITE | 14037 | 14037-1249-RZ | 1 | ||
SCREEN,LH,WHITE | 14037A | 14037-1282-RZ | 1 | ||
STAY | 35011 | 35011-1845 | 1 | ||
STAY | 35063 | 35063-1137 | 1 | ||
RADIATOR-ASSY | 39061 | 39061-1245 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR | 39062 | 39062-1425 | 1 | ||
HOSE-COOLING,RADIATOR-PUMP | 39062A | 39062-1711 | 1 | ||
HOSE-COOLING,CYLINDER PUMP | 39062B | 39062-1712 | 1 | ||
CAP-ASSY-PRESSURE,P1.1 | 49085 | 49085-1070 | 1 | ||
CAP-ASSY-PRESSURE,P1.6 | 49085A | 49085-1073 | 1 | (OPTION) | |
SHROUD-ENGINE,RH,L.GREEN | 49089A | 49089-1139-6W | 1 | ||
SHROUD-ENGINE,LH,L.GREEN | 49089C | 49089-1146-6W | 1 | ||
NUT | 92015 | 92015-1487 | 2 | ||
COLLAR | 92027 | 92027-1183 | 2 | ||
CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
BAND,L=186 | 92072 | 92072-056 | 1 | ||
DAMPER | 92075 | 92075-1352 | 2 | ||
COLLAR | 92143 | 92143-1087 | 1 | ||
COLLAR | 92143A | 92143-1196 | 2 | ||
BOLT,6X14 | 92150 | 92150-1340 | 6 | ||
BOLT,6X12 | 92150A | 92150-1435 | 4 | ||
BOLT,FLANGED,6X25 | 92150B | 92150-1507 | 1 | ||
TUBE,6X9X700 | 92191 | 92191-1211 | 1 |
