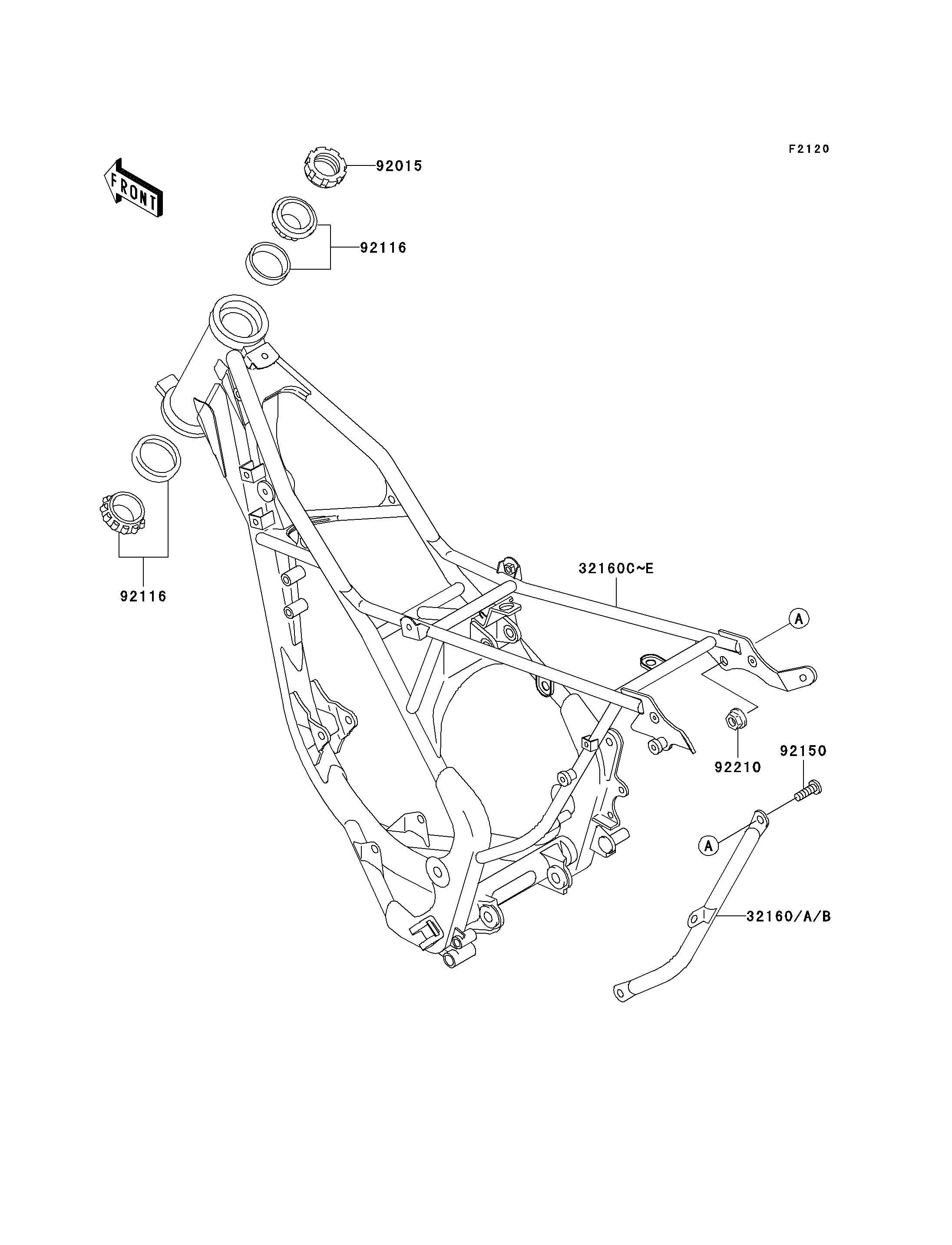

32160
32160C
92015
92116
92116
92150
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,DOWNTUBE,RH,L.GREEN 32160 32160-1486-CC 1
FRAME-COMP,MAIN,L.GREEN 32160C 32160-1673-CC 1
NUT,STEERING STEM,25MM 92015 92015-1684 1
BEARING-ROLLER,H1-CAP32005JRRS 92116 92116-1065 2
BOLT,SOCKET,10X23 92150 92150-1221 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
