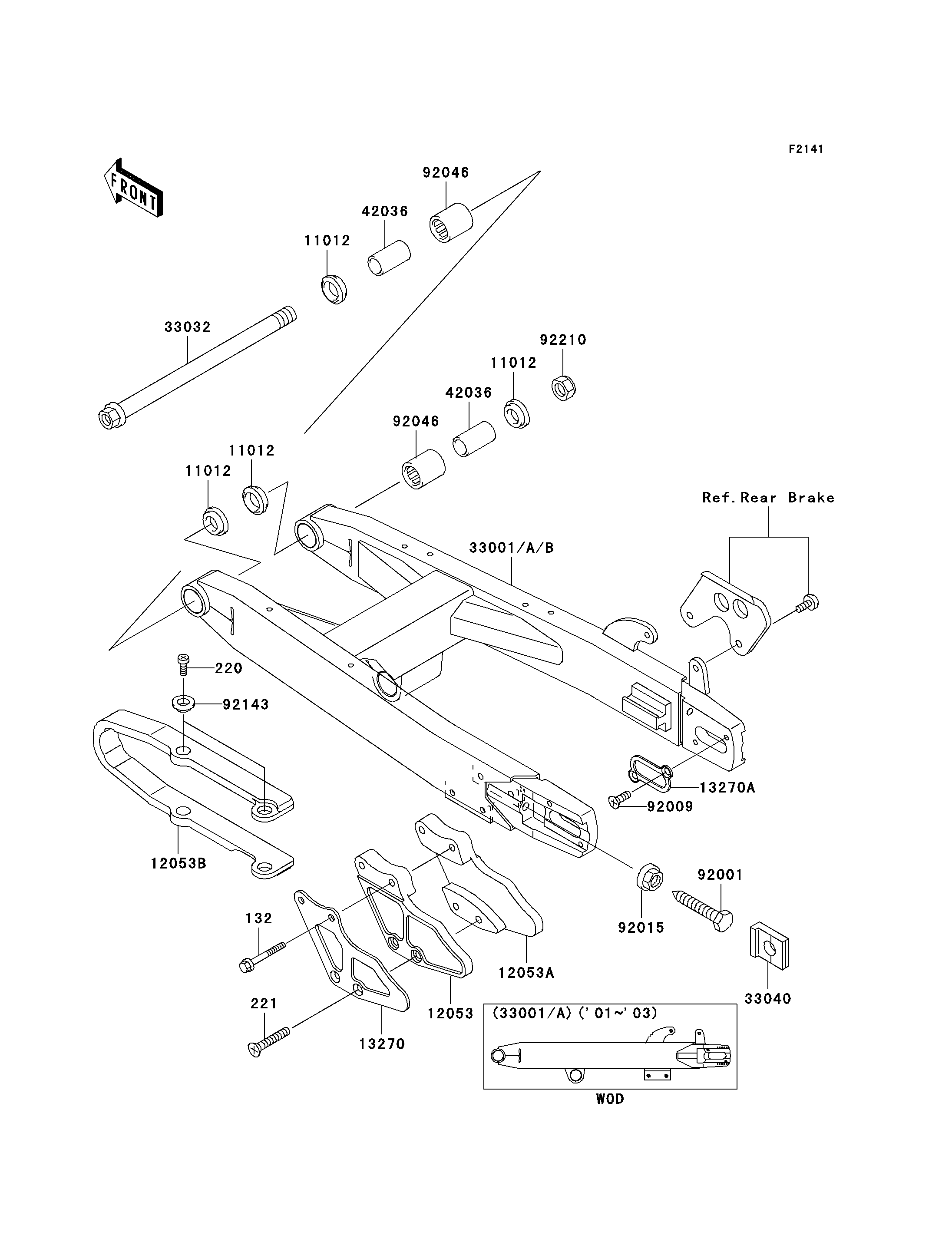

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
220
221
11012
11012
11012
11012
12053
12053A
12053B
13270
13270A
33001A
33032
33040
42036
42036
92001
92009
92015
92046
92046
92143
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0650 | 2 | ||
SCREW-PAN-CROS,5X8 | 220 | 220B0508 | 4 | ||
SCREW-CSK-CROS,6X45 | 221 | 221B0645 | 2 | ||
CAP | 11012 | 11012-1263 | 4 | ||
GUIDE-CHAIN,RR,LH | 12053 | 12053-1203 | 1 | ||
GUIDE-CHAIN,RR,RH | 12053A | 12053-1204 | 1 | ||
GUIDE-CHAIN,FR | 12053B | 12053-1414 | 1 | ||
PLATE,GUIDE CHAIN | 13270 | 13270-1829 | 1 | ||
PLATE | 13270A | 13270-1899 | 2 | ||
ARM-COMP-SWING,SILVER | 33001A | 33001-1543-TX | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1161 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1173 | 2 | ||
SLEEVE,SWING ARM,L=34 | 42036 | 42036-1067 | 2 | ||
BOLT,8X46 | 92001 | 92001-1179 | 2 | ||
SCREW,5X10 | 92009 | 92009-1828 | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
BEARING-NEEDLE | 92046 | 92046-1046 | 2 | ||
COLLAR | 92143 | 92143-1676 | 4 | ||
NUT,LOCK,12MM | 92210 | 92210-1249 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X45 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,LH | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,RH | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,GUIDE CHAIN | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13270A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER | |
REF # | 33001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=34 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X46 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,LOCK,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
