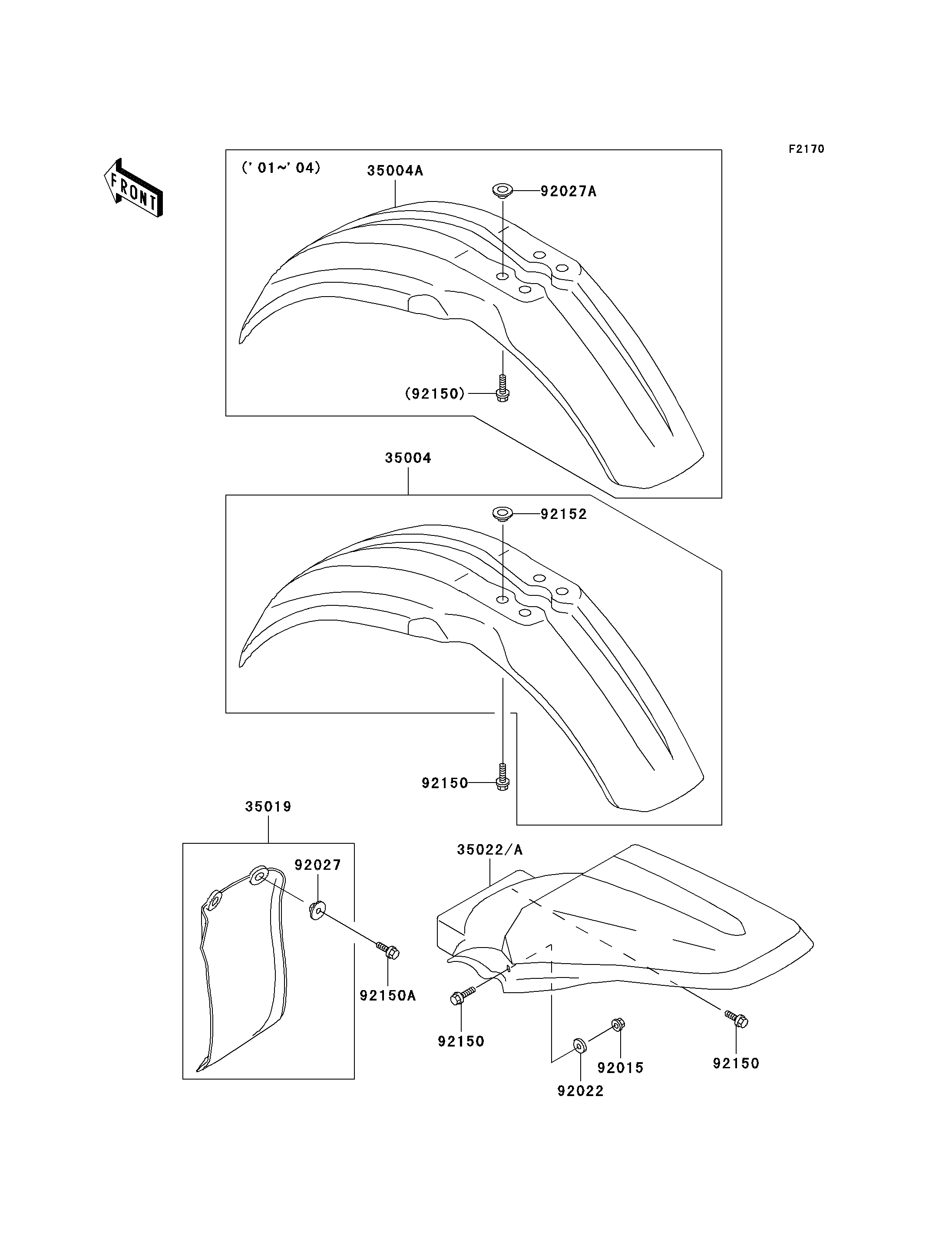

35004A
35019
35022A
92015
92022
92027
92027A
92150
92150
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004A 35004-1294-6W 1
FLAP,REAR FENDER 35019 35019-1212 1
FENDER-COMP-REAR,L.GREEN 35022A 35022-1353-6W 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR 92027 92027-1757 2
COLLAR 92027A 92027-1936 4
BOLT,6X20 92150 92150-1339 8
BOLT,FLANGED,6X16 92150A 92150-1506 2
