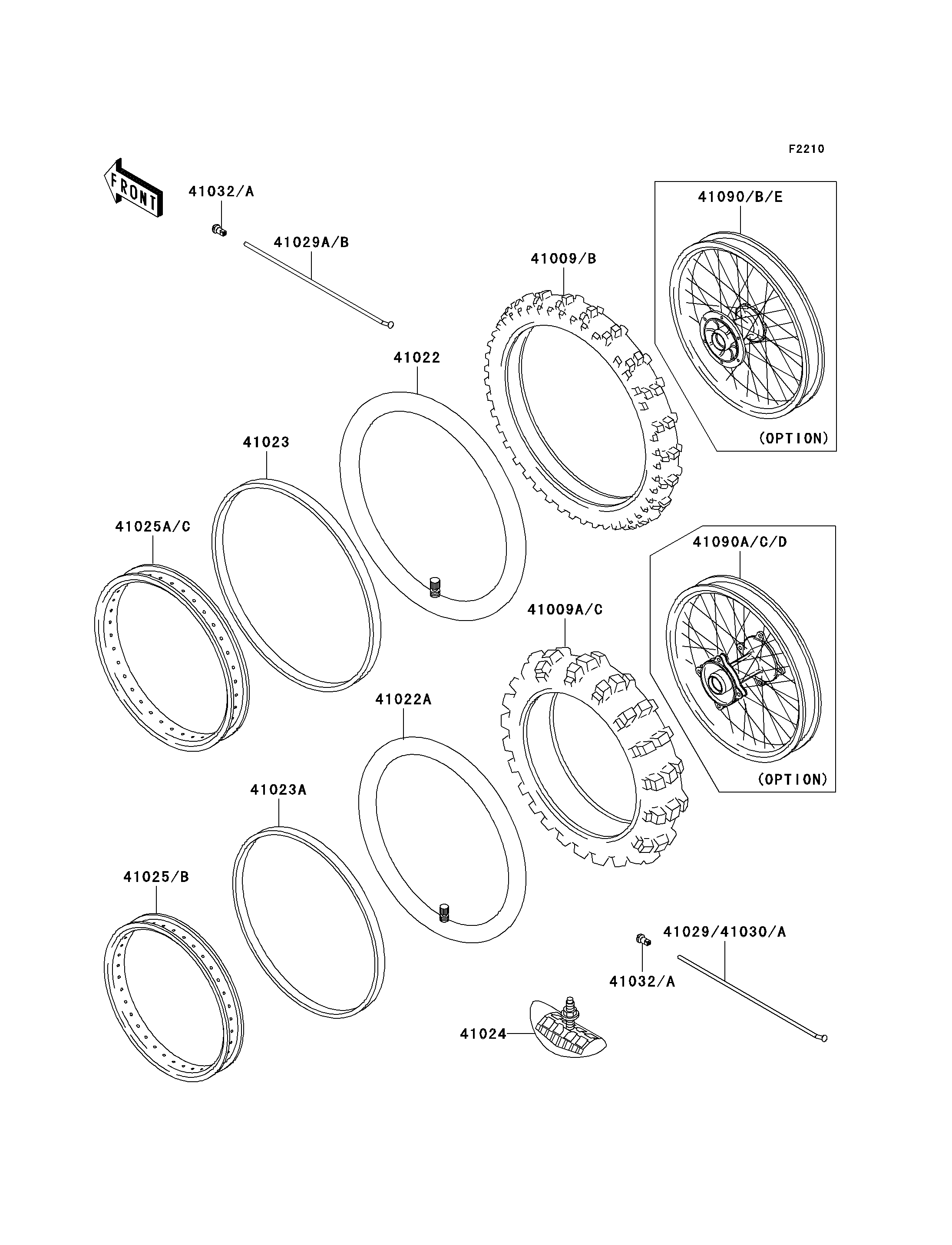

Parts Diagrams |
41009B
41009C
41022
41022A
41023
41023A
41024
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41090B
41090C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,70/100-19 42M,M61(BS) | 41009B | 41009-1207 | 1 | ||
TIRE,RR,90/100-16 52M,M58(BS) | 41009C | 41009-1208 | 1 | ||
TUBE-TIRE,70/100-19(BS) | 41022 | 41022-1203 | 1 | ||
TUBE-TIRE,90/100-16(BS) | 41022A | 41022-1204 | 1 | ||
BAND-RIM,X-19(BS) | 41023 | 41023-1122 | 1 | ||
BAND-RIM,X-16A(BS) | 41023A | 41023-1123 | 1 | ||
STOPPER-RIM,1.85-M(DUNLOP) | 41024 | 41024-011 | 1 | ||
RIM,RR,1.85X16 | 41025 | 41025-1347 | 1 | ||
RIM,FR,1.40X19 | 41025A | 41025-1356 | 1 | ||
SPOKE-INNER,RR,179MMX170D | 41029 | 41029-1278 | 14 | ||
SPOKE-INNER,FR,RH,211MMX165D | 41029A | 41029-1288 | 14 | ||
SPOKE-INNER,FR,LH,207MMX165D | 41029B | 41029-1289 | 14 | ||
SPOKE-OUTER,RR,RH,171MMX170D | 41030 | 41030-1151 | 7 | ||
SPOKE-OUTER,RR,LH,175MMX170D | 41030A | 41030-1161 | 7 | ||
NIPPLE-SPOKE | 41032 | 41032-1054 | 56 | ||
WHEEL-SUB ASSY,FR | 41090B | 41090-1140 | 1 | (OPTION) | |
WHEEL-SUB ASSY,RR | 41090C | 41090-1141 | 1 | (OPTION) |
TIRE,FR,70/100-19 42M,M61(BS) | |
REF # | 41009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,90/100-16 52M,M58(BS) | |
REF # | 41009C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,70/100-19(BS) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,90/100-16(BS) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,X-19(BS) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,X-16A(BS) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.85-M(DUNLOP) | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,1.85X16 | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.40X19 | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,179MMX170D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,RH,211MMX165D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,LH,207MMX165D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,RH,171MMX170D | |
REF # | 41030 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,LH,175MMX170D | |
REF # | 41030A |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 56 |
DESTINATION | |
REMARKS |
WHEEL-SUB ASSY,FR | |
REF # | 41090B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WHEEL-SUB ASSY,RR | |
REF # | 41090C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
