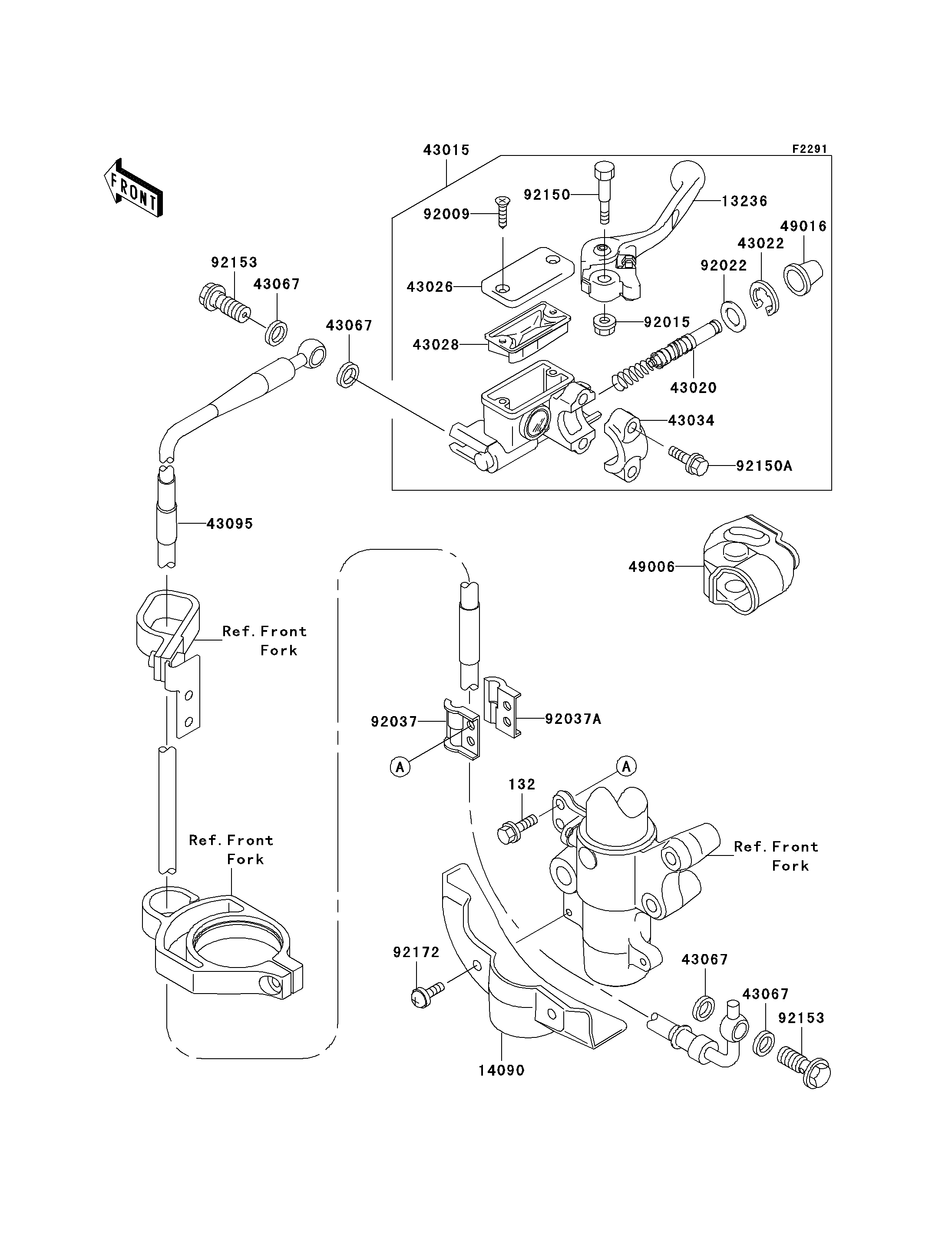

Parts Diagrams |
132
13236
14090
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43095
49006
49016
92009
92015
92022
92037
92037A
92150
92150A
92153
92153
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
LEVER-COMP,FRONT BRAKE | 13236 | 13236-1346 | 1 | ||
COVER,BRAKE HOSE,WHITE | 14090 | 14090-1860-RZ | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1674 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1123 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1075 | 1 | ||
DIAPHRAGM | 43028 | 43028-1067 | 1 | ||
HOLDER-BRAKE | 43034 | 43034-1110 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
HOSE-BRAKE,FR | 43095 | 43095-1091 | 1 | ||
BOOT,FRONT BRAKE LEVER | 49006 | 49006-1344 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
SCREW,4MM | 92009 | 92009-1458 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
WASHER | 92022 | 92022-1814 | 1 | ||
CLAMP,BRAKE HOSE,OUTSIDE | 92037 | 92037-1362 | 1 | ||
CLAMP,BRAKE HOSE,INSIDE | 92037A | 92037-1363 | 1 | ||
BOLT,LEVER SET | 92150 | 92150-1451 | 1 | ||
BOLT | 92150A | 92150-1452 | 2 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
SCREW,6X14 | 92172 | 92172-0107 | 2 |
