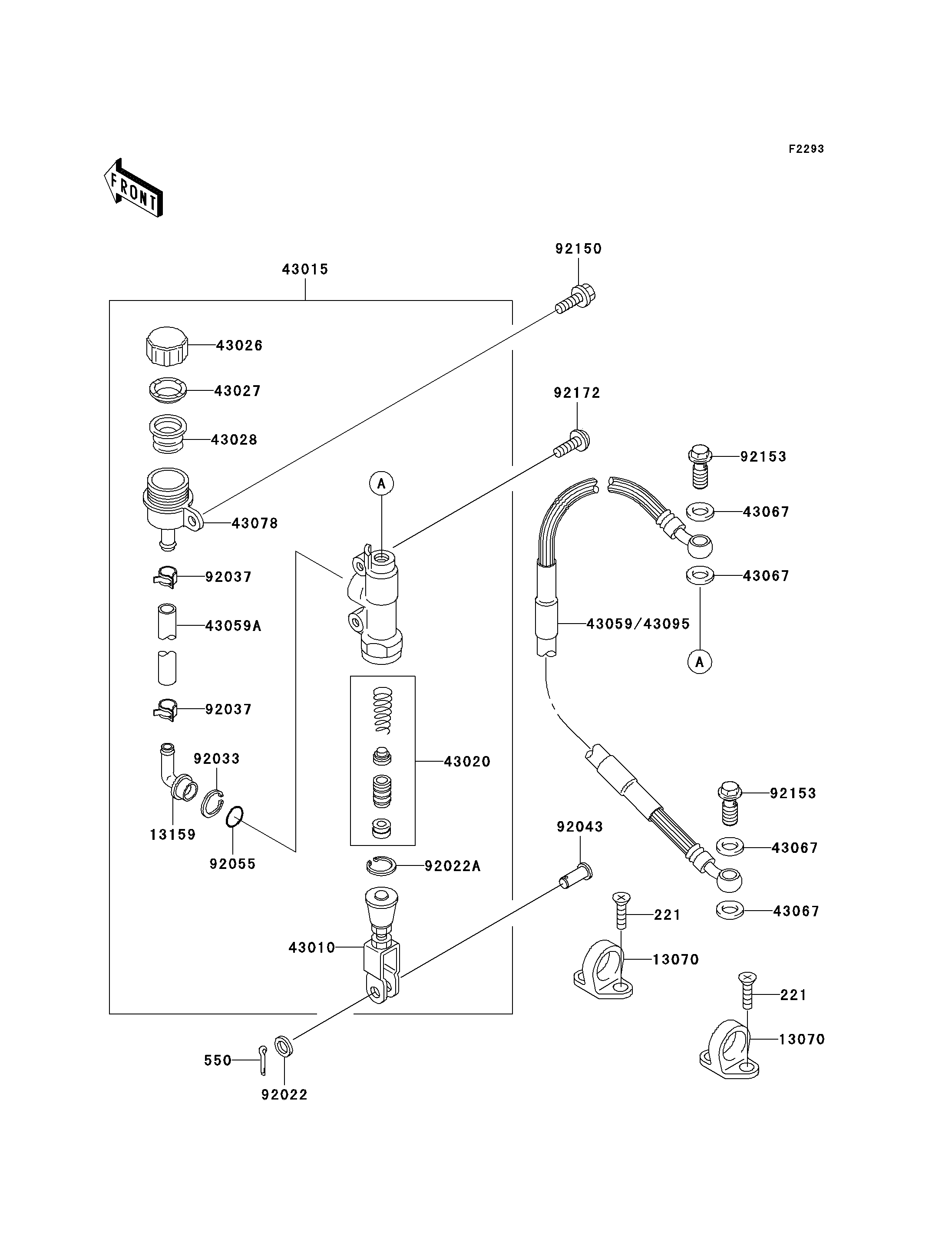

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS 221 221B0510 4
PIN-COTTER,2.0X15 550 550D2015 1
GUIDE,HOSE 13070 13070-1144 2
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1079 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1606 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
HOSE-BRAKE,RR,L=565 43059 43059-1657 1
HOSE-BRAKE,RR MASTER CYLINDER 43059A 43059-1670 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1068 1
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,6X14 92150 92150-1340 1
BOLT,OIL,L=23 92153 92153-0627 2
SCREW,6X14 92172 92172-0107 2
