Parts Diagrams |

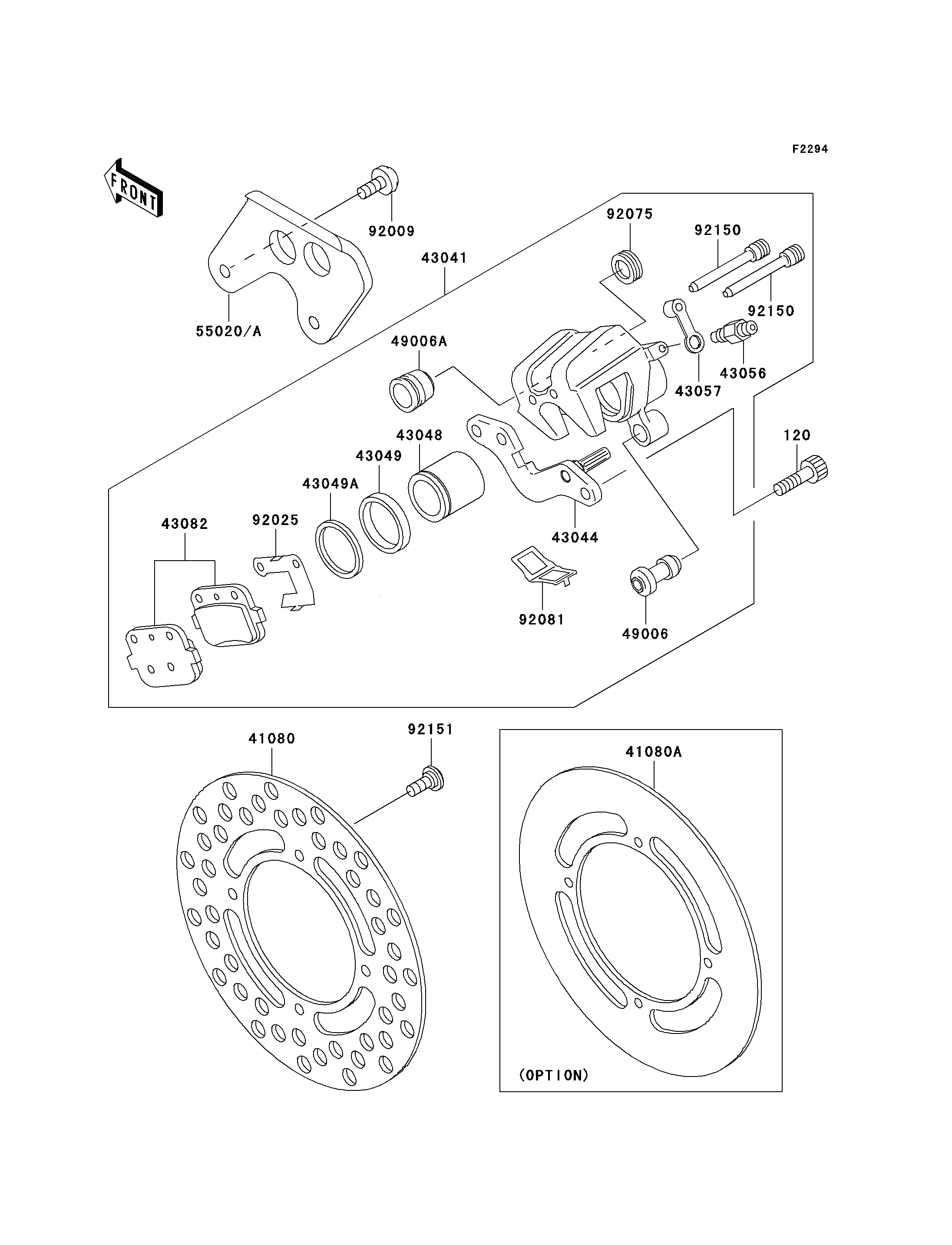

120
41080
41080A
43041
43044
43048
43049
43049A
43056
43057
43082
49006
49006A
55020A
92009
92025
92075
92081
92150
92150
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120P0816 | 2 | ||
DISC,RR | 41080 | 41080-1492 | 1 | ||
DISC,RR | 41080A | 41080-1493 | 1 | (OPTION) | |
CALIPER-XUB-ASSY,RR | 43041 | 43041-1815 | 1 | ||
HOLDER-COMP-CALIPER,RR | 43044 | 43044-1076 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1064 | 1 | ||
PACKING,PISTON SEAL | 43049 | 43049-1060 | 1 | ||
PACKING,PISTON SEAL | 43049A | 43049-1061 | 1 | ||
BREATHER | 43056 | 43056-1055 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1205 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1089 | 1 | ||
GUARD,CALIPER,P.WHITE | 55020A | 55020-1247-6F | 1 | ||
SCREW,6X10,WHITE | 92009 | 92009-1286 | 2 | ||
SHIM,PAD | 92025 | 92025-1817 | 1 | ||
DAMPER | 92075 | 92075-1414 | 1 | ||
SPRING,PAD | 92081 | 92081-1502 | 1 | ||
BOLT | 92150 | 92150-1144 | 2 | ||
BOLT,DISC PLATE,6MM | 92151 | 92151-1799 | 4 |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DISC,RR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DISC,RR | |
REF # | 41080A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
CALIPER-XUB-ASSY,RR | |
REF # | 43041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-COMP-CALIPER,RR | |
REF # | 43044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CALIPER,P.WHITE | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X10,WHITE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHIM,PAD | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,DISC PLATE,6MM | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
