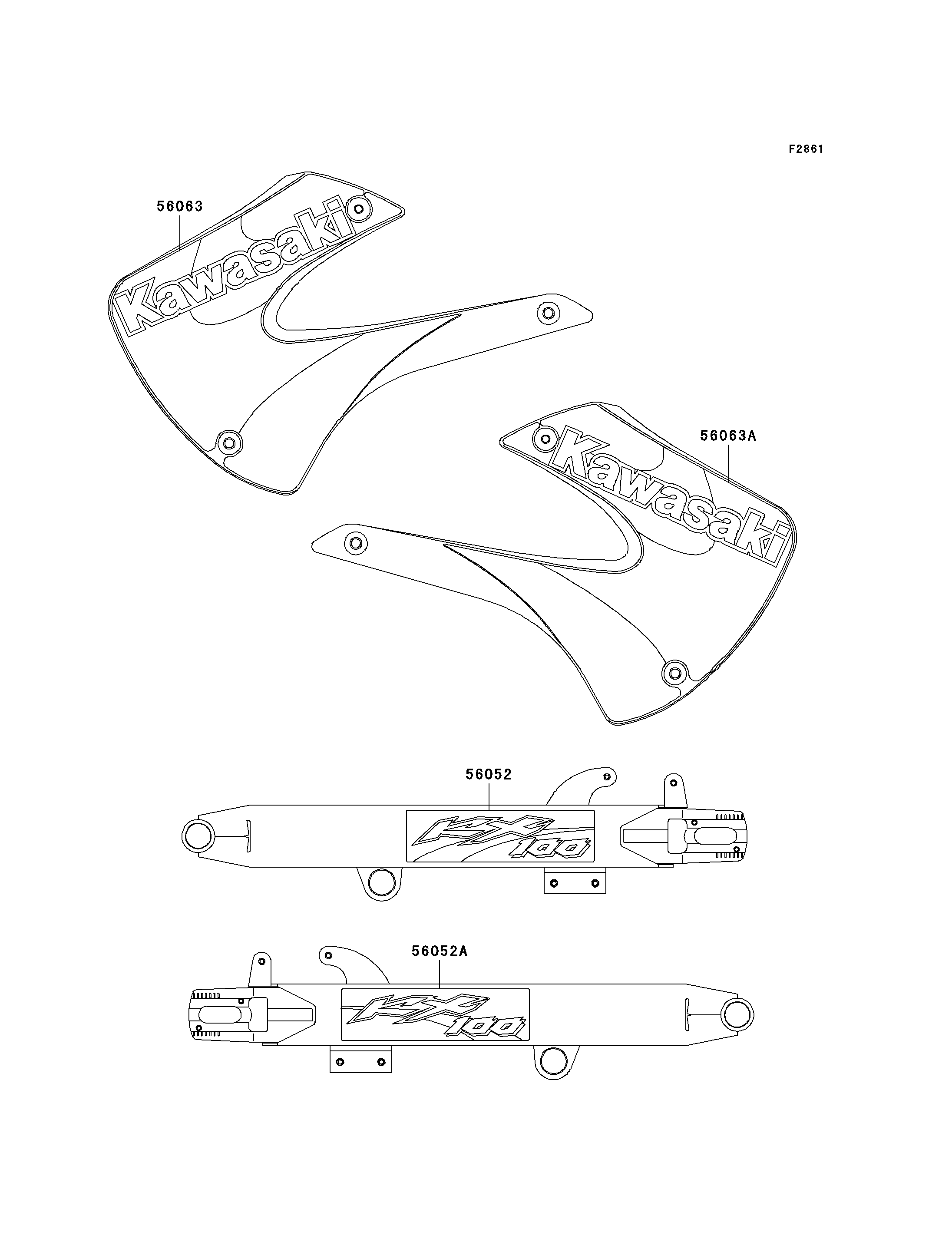

56052
56052A
56063
56063A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,LH,KX100 56052 56052-1281 1
MARK,SWING ARM,RH,KX100 56052A 56052-1282 1
PATTERN,SHROUD,LH 56063 56063-1814 1
PATTERN,SHROUD,RH 56063A 56063-1815 1
