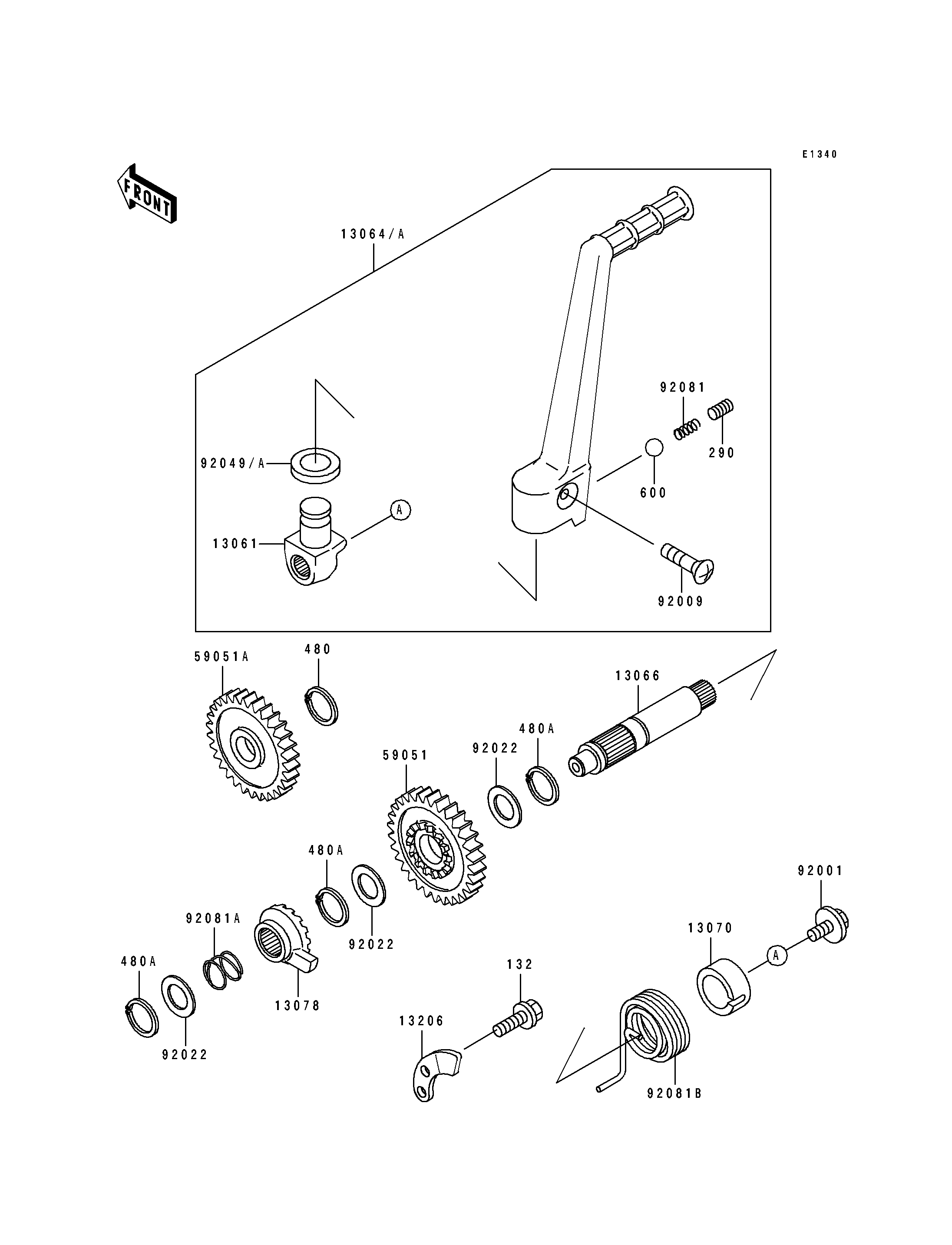

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOSS,KICK PEDAL | 13061 | 13061-1315 | 1 | ||
LEVER-ASSY-KICK,PEDAL | 13064A | 13064-1156 | 1 | ||
SHAFT-KICK,STARTER | 13066 | 13066-1019 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1007 | 1 | ||
RATCHET | 13078 | 13078-1052 | 1 | ||
GUIDE-KICK | 13206 | 13206-1059 | 1 | ||
GEAR-SPUR,KICKSTARTER,30T | 59051 | 59051-1125 | 1 | ||
GEAR-SPUR,IDLE,31T | 59051A | 59051-1191 | 1 | ||
BOLT,FLANGED,6X10 | 92001 | 92001-1034 | 1 | ||
SCREW,6X27 | 92009 | 92009-1607 | 1 | ||
WASHER,16.8X22X0.5 | 92022 | 92022-315 | 3 | ||
SEAL-OIL,KICK PEDAL | 92049A | 92049-1387 | 1 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92081B | 92081-1768 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
CIRCLIP-TYPE-C,15MM | 480 | 480J1500 | 1 | ||
CIRCLIP-TYPE-C,16MM | 480A | 480J1600 | 3 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
