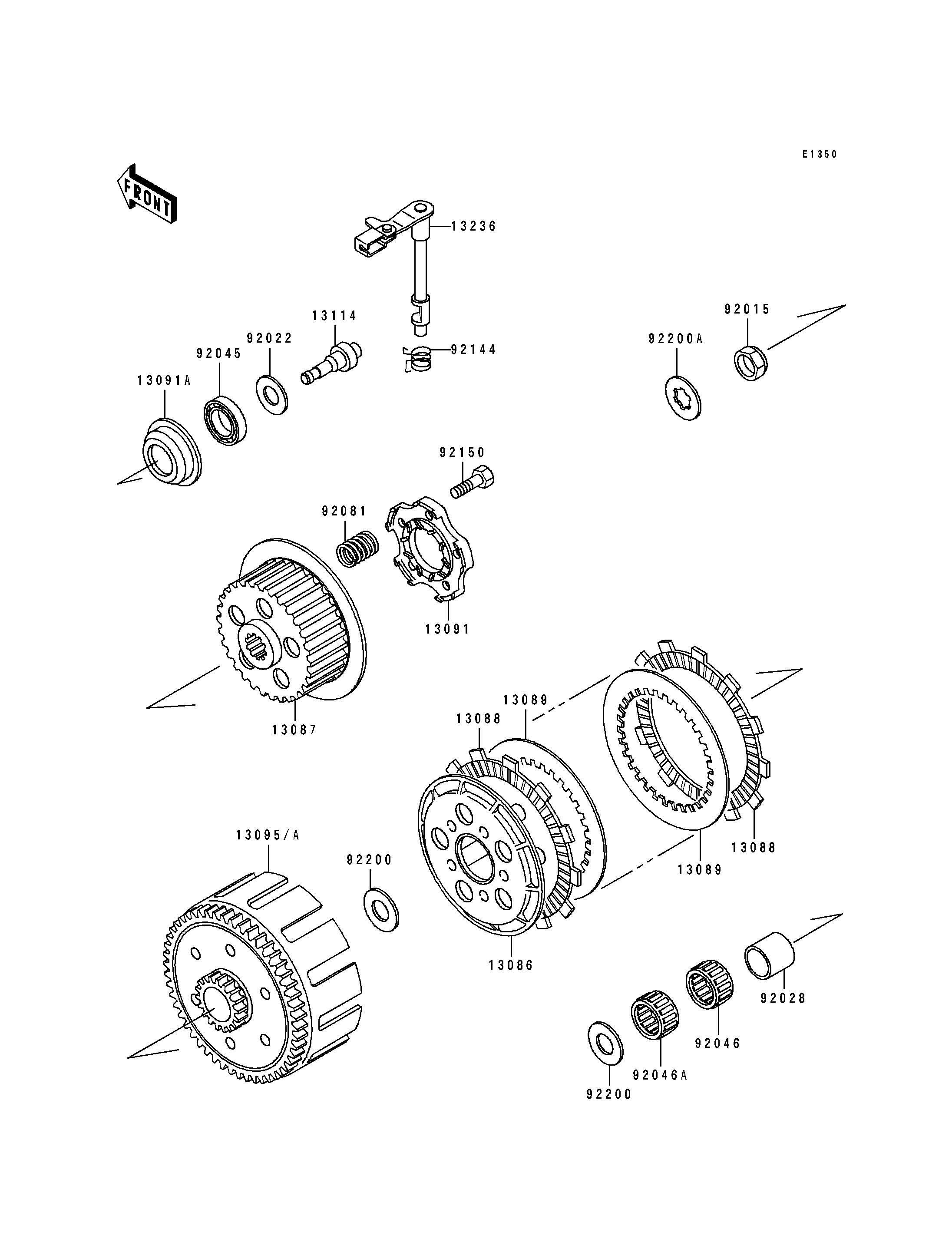

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WHEEL-CLUTCH | 13086 | 13086-1062 | 1 | ||
HUB-CLUTCH | 13087 | 13087-1120 | 1 | ||
PLATE-FRICTION,ID=95 | 13088 | 13088-1081 | 8 | ||
PLATE-CLUTCH,KNURLING | 13089 | 13089-1089 | 7 | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1502 | 1 | ||
HOLDER,CLUTCH PUSHER | 13091A | 13091-1712 | 1 | ||
HOUSING-COMP-CLUTCH | 13095A | 13095-1234 | 1 | ||
PUSHER-CLUTCH | 13114 | 13114-1063 | 1 | ||
LEVER-COMP,CLUTCH RELEASE | 13236 | 13236-1214 | 1 | ||
NUT,16MM | 92015 | 92015-1820 | 1 | ||
WASHER,10.2X14.5X1.0 | 92022 | 92022-1181 | 1 | ||
BUSHING,17X22X25.3 | 92028 | 92028-1588 | 1 | ||
BEARING-BALL,6000M3ML01 | 92045 | 92045-1225 | 1 | ||
BEARING-NEEDLE,K22X26X13 | 92046 | 92046-1130 | 1 | ||
BEARING-NEEDLE,K22X26X11 | 92046A | 92046-1198 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-155 | 5 | ||
SPRING,CLUTCH RELEASE | 92144 | 92144-1287 | 1 | ||
BOLT,6X25 | 92150 | 92150-1292 | 5 | ||
WASHER,17.3X30X2.0 | 92200 | 92200-1030 | 2 | ||
WASHER | 92200A | 92200-1054 | 1 |
WHEEL-CLUTCH | |
REF # | 13086 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION,ID=95 | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,KNURLING | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH SPRING | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH PUSHER | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PUSHER-CLUTCH | |
REF # | 13114 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CLUTCH RELEASE | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,16MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.2X14.5X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,17X22X25.3 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6000M3ML01 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,K22X26X13 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,K22X26X11 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH RELEASE | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
WASHER,17.3X30X2.0 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
