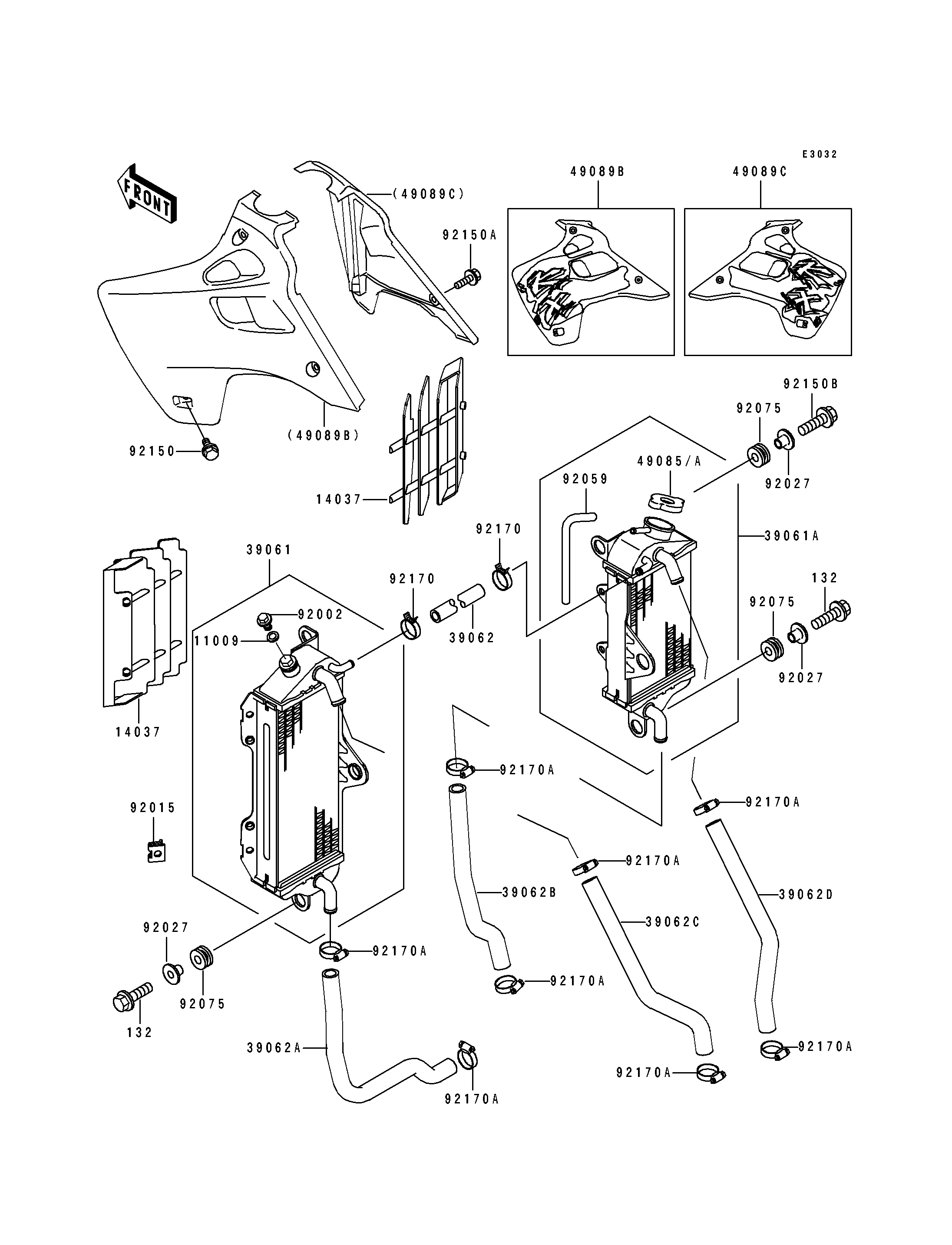

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,DRAIN BOLT | 11009 | 11009-1152 | 1 | ||
SCREEN,L.GREEN | 14037 | 14037-1099-6W | 2 | ||
RADIATOR-ASSY,LH | 39061 | 39061-1173 | 1 | ||
RADIATOR-ASSY,RH | 39061A | 39061-1175 | 1 | ||
HOSE-COOLING,RADIATOR,LH-RH | 39062 | 39062-1368 | 1 | ||
HOSE-COOLING,RADIATOR,L-PUMP | 39062A | 39062-1369 | 1 | ||
HOSE-COOLING,RADIATOR,RH-PUMP | 39062B | 39062-1477 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR,LH | 39062C | 39062-1500 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR,RH | 39062D | 39062-1501 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1003 | 1 | ||
CAP-ASSY-PRESSURE,P=1.6 | 49085A | 49085-1059 | 1 | (OPTION) | |
SHROUD-ENGINE,LH,L.GREEN | 49089B | 49089-5162-6W | 1 | ||
SHROUD-ENGINE,RH,L.GREEN | 49089C | 49089-5163-6W | 1 | ||
BOLT,RADIATOR DRAIN | 92002 | 92002-1682 | 1 | ||
NUT | 92015 | 92015-1487 | 2 | ||
COLLAR,L=11.1 | 92027 | 92027-194 | 6 | ||
TUBE,5X9X800 | 92059 | 92059-1383 | 1 | ||
DAMPER | 92075 | 92075-209 | 6 | ||
BOLT,6X14 | 92150 | 92150-1392 | 2 | ||
BOLT,6X12 | 92150A | 92150-1435 | 4 | ||
BOLT,FLANGED,6X25 | 92150B | 92150-1507 | 1 | ||
CLAMP | 92170 | 92170-1167 | 2 | ||
CLAMP | 92170A | 92170-1283 | 8 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 5 |
GASKET,DRAIN BOLT | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN,L.GREEN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY,LH | |
REF # | 39061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY,RH | |
REF # | 39061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR,LH-RH | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR,L-PUMP | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR,RH-PUMP | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR,LH | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR,RH | |
REF # | 39062D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE,P=1.6 | |
REF # | 49085A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SHROUD-ENGINE,LH,L.GREEN | |
REF # | 49089B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD-ENGINE,RH,L.GREEN | |
REF # | 49089C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RADIATOR DRAIN | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=11.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
TUBE,5X9X800 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
