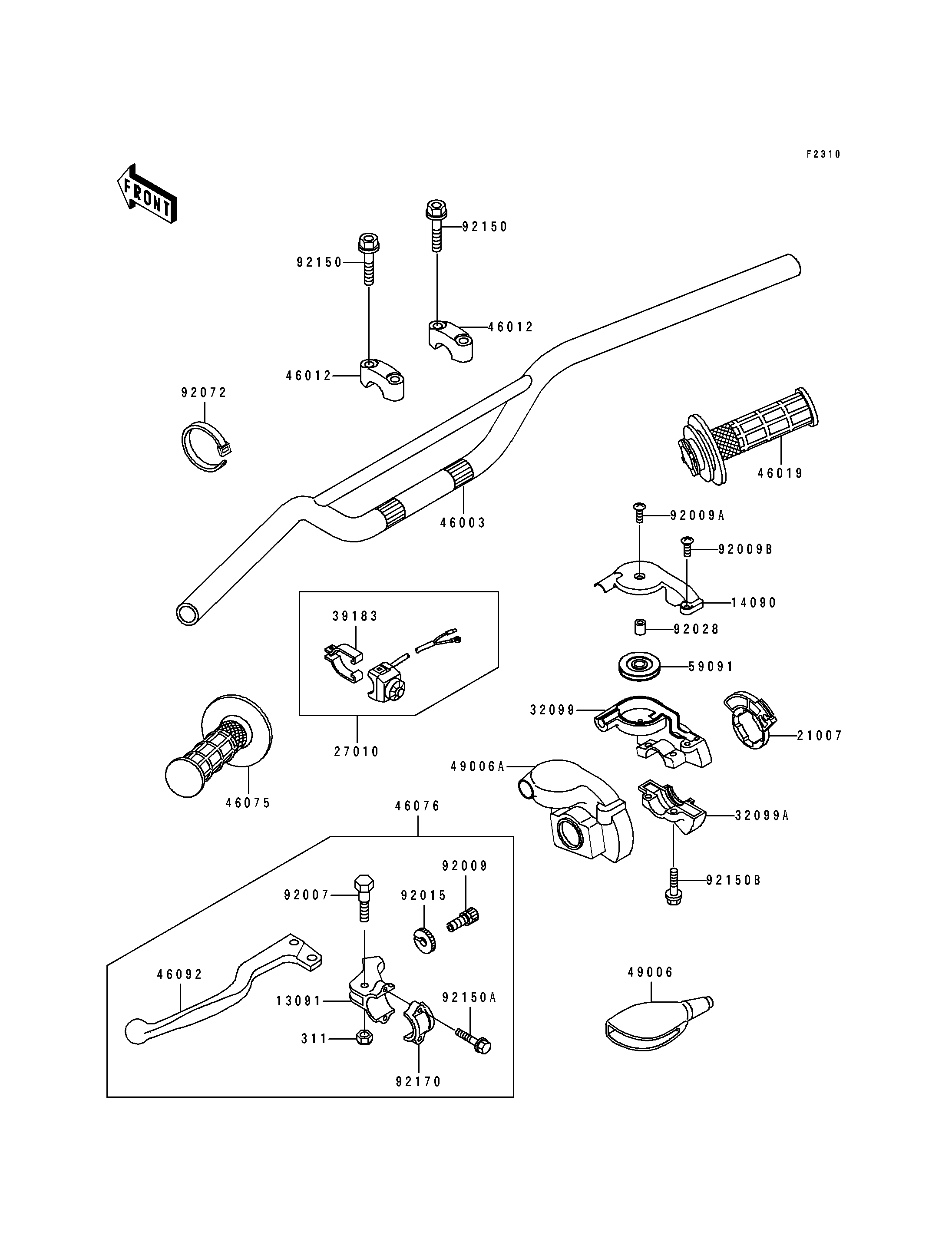

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,CLUTCH LEVER | 13091 | 13091-1728 | 1 | ||
COVER,THROTTLE CASE,UPP | 14090 | 14090-1161 | 1 | ||
ROTOR,THROTTLE | 21007 | 21007-1242 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-1161 | 1 | ||
CASE,THROTTLE,UPP | 32099 | 32099-1137 | 1 | ||
CASE,THROTTLE,LWR | 32099A | 32099-1138 | 1 | ||
BAND-ASSY,ENGINE STOP SWITCH | 39183 | 39183-1059 | 1 | ||
HANDLE,L.GREEN | 46003 | 46003-1312-CC | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1191 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1076 | 1 | ||
GRIP,LH | 46075 | 46075-1024 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1181 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1165 | 1 | ||
BOOT,LEVER HOLDER | 49006 | 49006-1017 | 1 | ||
BOOT,THROTTLE | 49006A | 49006-1271 | 1 | ||
PULLEY,THROTTLE | 59091 | 59091-1102 | 1 | ||
BOLT,5X22 | 92007 | 92007-046 | 1 | ||
SCREW,CABLE ADJUST | 92009 | 92009-1476 | 1 | ||
SCREW | 92009A | 92009-1674 | 1 | ||
SCREW | 92009B | 92009-1675 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 92015-1596 | 1 | ||
BUSHING,THROTTLE CASE | 92028 | 92028-1658 | 1 | ||
BAND,L=123 | 92072 | 92072-030 | 1 | ||
BOLT,FLANGED,8X30 | 92150 | 92150-1455 | 4 | ||
BOLT | 92150A | 92150-1474 | 2 | ||
BOLT | 92150B | 92150-1559 | 2 | ||
CLAMP,LEVER HOLDER | 92170 | 92170-1226 | 1 | ||
NUT-HEX | 311 | 311C0500 | 1 |
HOLDER,CLUTCH LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,THROTTLE CASE,UPP | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR,THROTTLE | |
REF # | 21007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,ENGINE STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,UPP | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,LWR | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-ASSY,ENGINE STOP SWITCH | |
REF # | 39183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE,L.GREEN | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GRIP-ASSY,THROTTLE | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,CLUTCH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,LEVER HOLDER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,THROTTLE | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PULLEY,THROTTLE | |
REF # | 59091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X22 | |
REF # | 92007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOCK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,THROTTLE CASE | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X30 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,LEVER HOLDER | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
