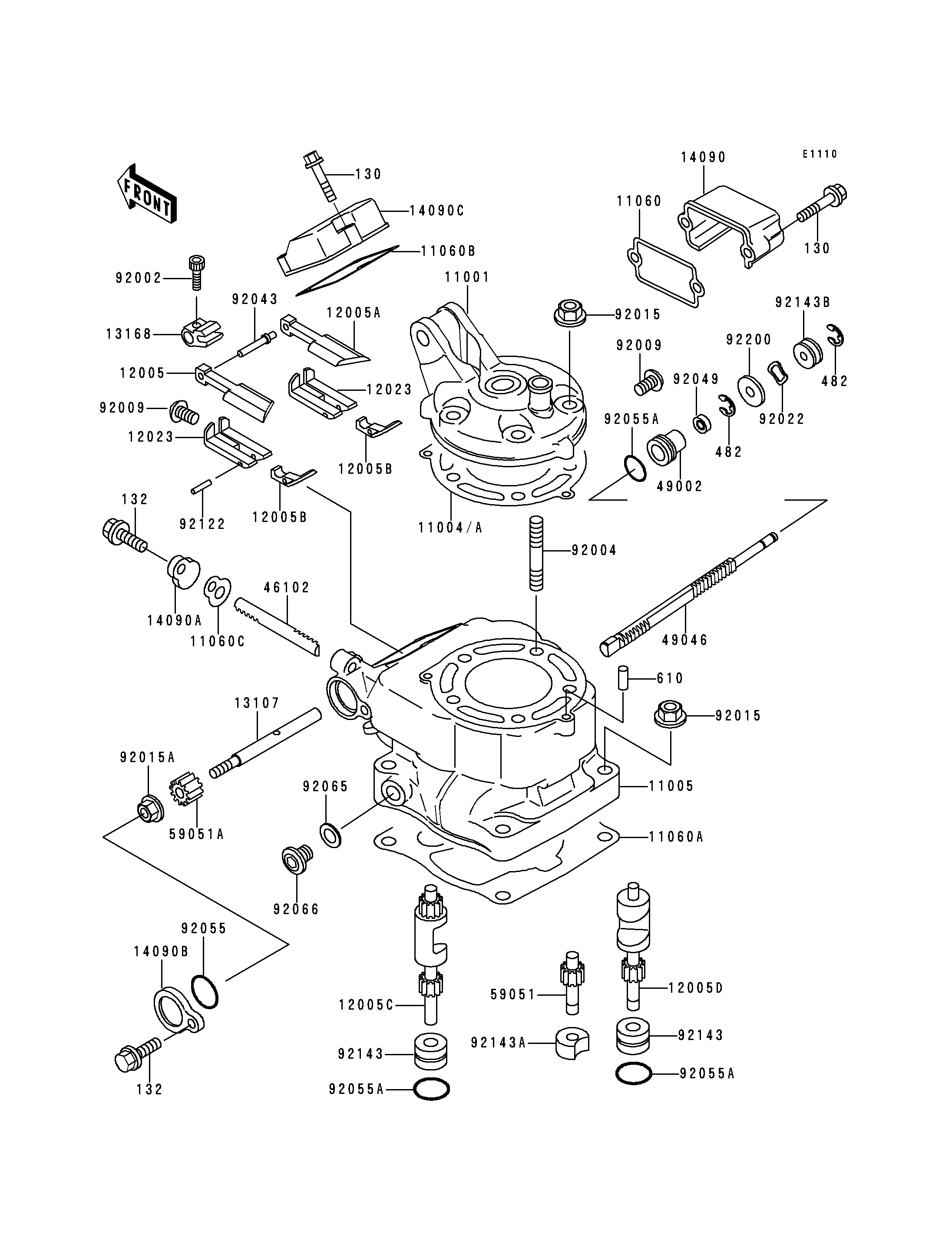

1994 KX125 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1399 1
GASKET-HEAD,T=0.46 11004 11004-1252 1 (OPTION)
GASKET-HEAD,T=0.26 11004A 11004-1300 1
CYLINDER-ENGINE 11005 11005-1720 1
GASKET,RH,GOVERNOR 11060 11060-1187 1
GASKET,CYLINDER BASE 11060A 11060-1188 1
GASKET,MAIN COVER 11060B 11060-1194 1
GASKET,GOVERNOR ROD 11060C 11060-1346 1
VALVE-EXHAUST,MAIN 12005 12005-1172 1
VALVE-EXHAUST,MAIN 12005A 12005-1173 1
VALVE-EXHAUST,MAIN 12005B 12005-1174 2
VALVE-EXHAUST,LH 12005C 12005-1194 1
VALVE-EXHAUST,RH 12005D 12005-1195 1
HOLDER-VALVE 12023 12023-1070 2
SHAFT,MAIN 13107 13107-1284 1
LEVER,MAIN 13168 13168-1491 1
COVER,GOVERNOR 14090 14090-1130 1
COVER,GOVERNOR ROD 14090A 14090-1132 1
COVER,MAIN VALVE 14090B 14090-1133 1
COVER,MAIN VALVE 14090C 14090-1134 1
ROD,MAIN VALVE 46102 46102-1319 1
GUIDE-VALVE 49002 49002-1100 1
ROD-GOVERNOR 49046 49046-1071 1
GEAR-SPUR,IDLE 59051 59051-1249 1
GEAR-SPUR,MAIN VALVE 59051A 59051-1252 1
BOLT,SOCKET,4X8 92002 92002-1403 1
STUD,8X28.5 92004 92004-1060 5
SCREW,5X10 92009 92009-1502 3
NUT,8MM 92015 92015-1143 9
NUT,6MM 92015A 92015-1572 1
WASHER,WAVE 92022 92022-1978 1
PIN 92043 92043-1459 1
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,16.8X2.4 92055 92055-1258 1
RING-O,14.5X1.5 92055A 92055-1399 3
GASKET,12.5X18X1,DRAIN PLUG 92065 92065-073 1
PLUG,12X10 92066 92066-1222 1
ROLLER,3X15.8 92122 92122-1126 2
COLLAR,VALVE 92143 92143-1517 2
BOLT-FLANGED 130 130G0525 5
BOLT-FLANGED-SMALL 132 132G0616 2
CIRCLIP-TYPE-E,4MM 482 482J4000 2
ROLLER,4X8 610 610A0408 2
COLLAR,IDLE GEAR 92143A 92143-1518 1
COLLAR,ROD 92143B 92143-1637 1
WASHER,5.6X18X1.2 92200 92200-1129 1
