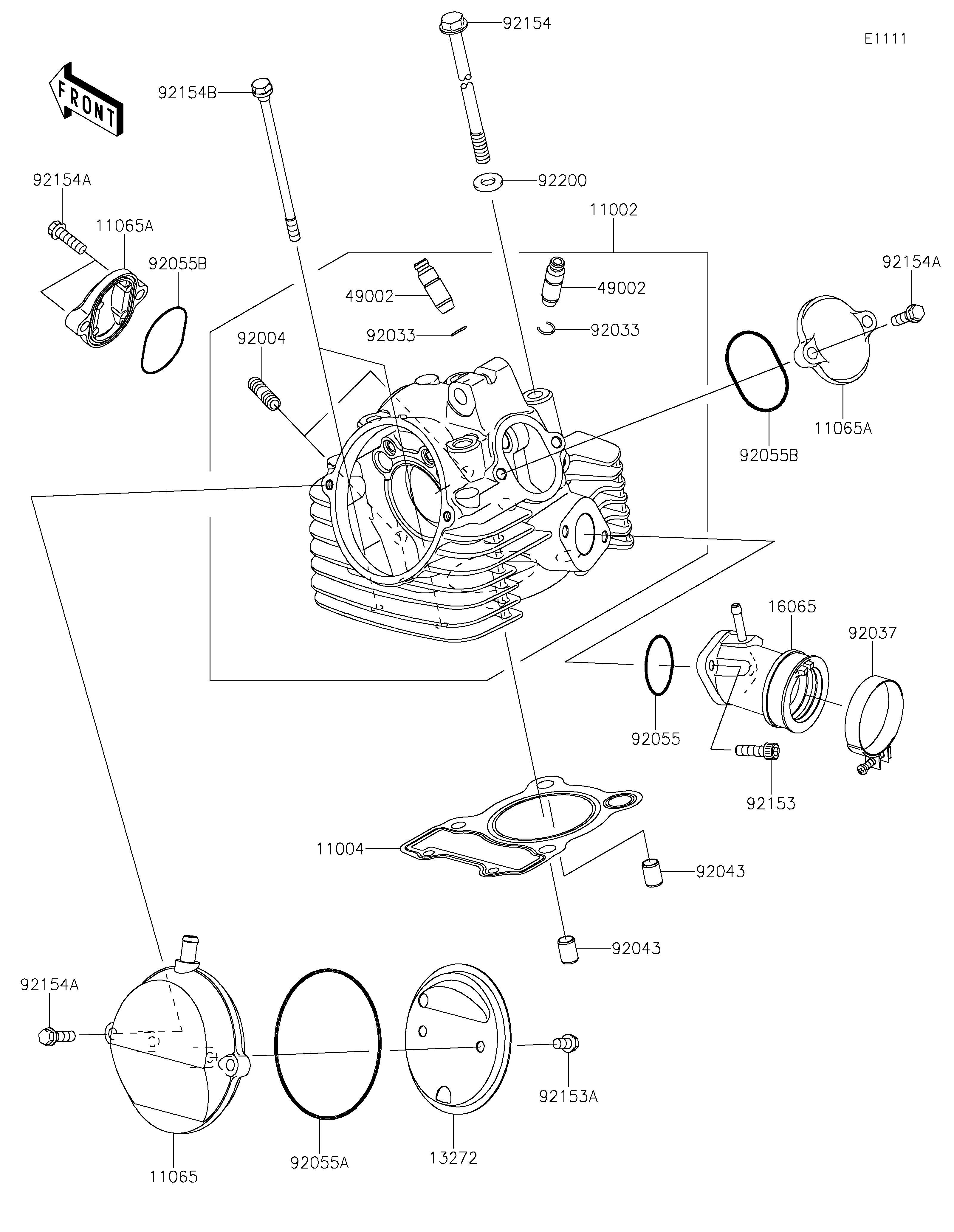

2020 KLX®150L - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11002
11004
11065
11065A
11065A
13272
16065
49002
49002
92004
92033
92033
92037
92043
92043
92055
92055A
92055B
92055B
92153
92153A
92154
92154A
92154A
92154A
92154B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-0144 1
GASKET-HEAD 11004 11004-0751 1
CAP 11065 11065-0799 1
CAP,VALVE,ADJUSTING 11065A 11065-0800 2
PLATE,BREATHER 13272 13272-2504 1
HOLDER-CARBURETOR 16065 16065-0061 1
GUIDE-VALVE 49002 49002-0019 2
STUD,8X22 92004 92004-0722 2
RING-SNAP 92033 92033-0789 2
CLAMP 92037 92037-1305 1
PIN,8.2X10X14 92043 92043-0100 2
RING-O,32X1.9 92055 92055-0191 1
RING-O,86X1.9 92055A 92055-0202 1
RING-O 92055B 92055-1697 2
BOLT,6X20 92153 92153-0481 2
BOLT,6X10 92153A 92153-1140 2
BOLT,FLANGED,8X201 92154 92154-1155 4
BOLT,FLANGED,6X20 92154A 92154-1219 6
BOLT,FLANGED,6X110 92154B 92154-3751 2
WASHER,8.2X17X2.3 92200 92200-1631 4
