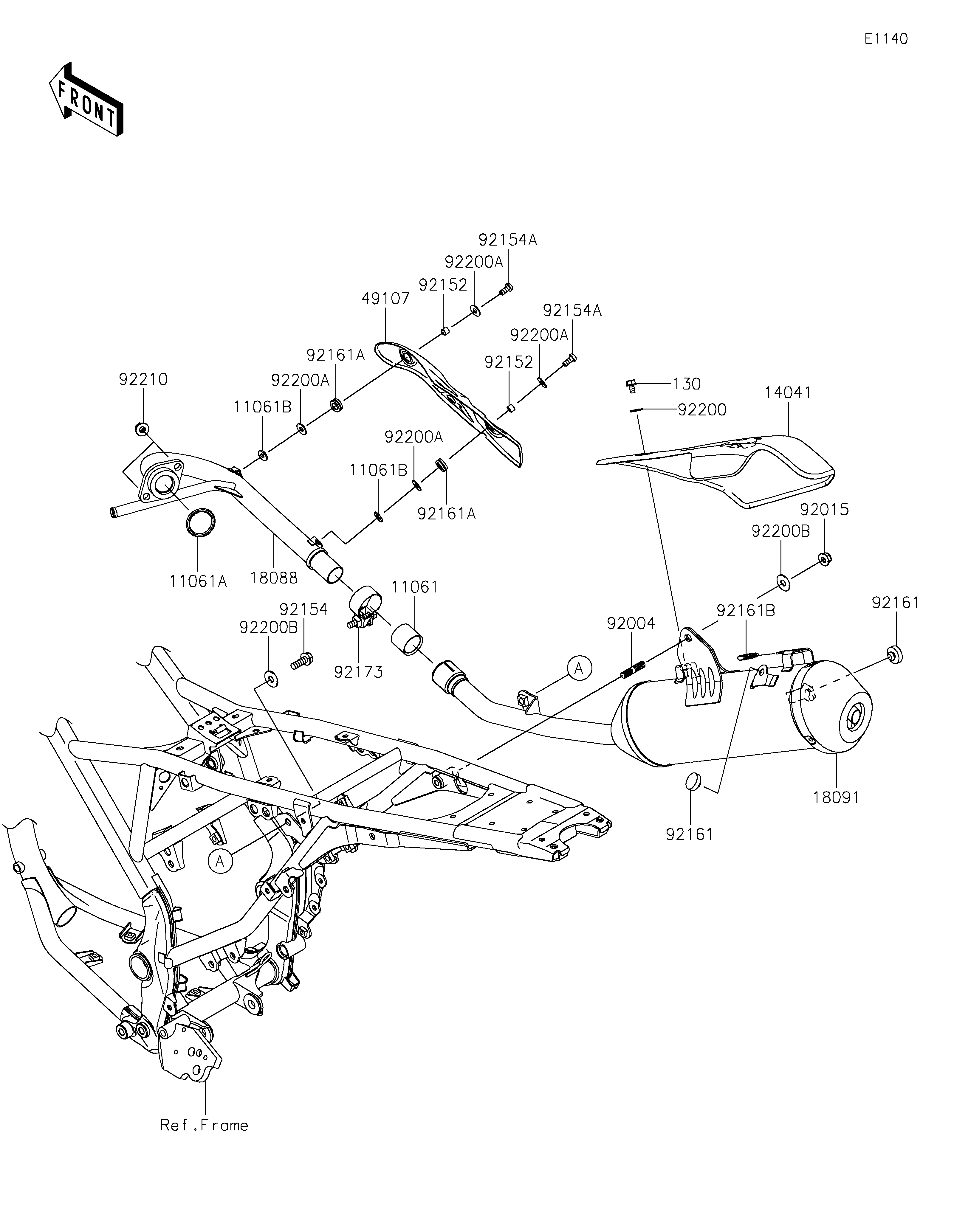

2020 KLX®150L - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11061B
130
14041
18088
18091
49107
92004
92015
92152
92152
92154
92154A
92154A
92161
92161
92161A
92161A
92161B
92173
92200
92200A
92200A
92200A
92200A
92200B
92200B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER JOINT 11061 11061-0866 1
GASKET,EXHAUST PIPE 11061A 11061-0871 1
GASKET,5.8X12X1.5 11061B 11061-1148 2
BOLT-FLANGED,6X10 130 130BA0610 1
COVER-COMP 14041 14041-0585 1
PIPE-EXHAUST 18088 18088-1329 1
BODY-COMP-MUFFLER 18091 18091-0950 1
COVER-EXHAUST PIPE 49107 49107-0780 1
STUD,8X22 92004 92004-0040 1
NUT,8MM 92015 92015-1432 1
COLLAR,6.5X8.5X6 92152 92152-1962 2
BOLT,8X16 92154 92154-1228 1
BOLT,SOCKET,6X14 92154A 92154-2817 2
DAMPER,MUFFLER 92161 92161-1284 2
DAMPER 92161A 92161-2110 2
DAMPER 92161B 92161-2125 1
CLAMP 92173 92173-1223 1
WASHER,6.5X16X1.0 92200 92200-0796 1
WASHER,6.5X16X1 92200A 92200-1974 4
WASHER,8.5X22X1.5 92200B 92200-1975 2
NUT,8MM 92210 92210-0773 2
