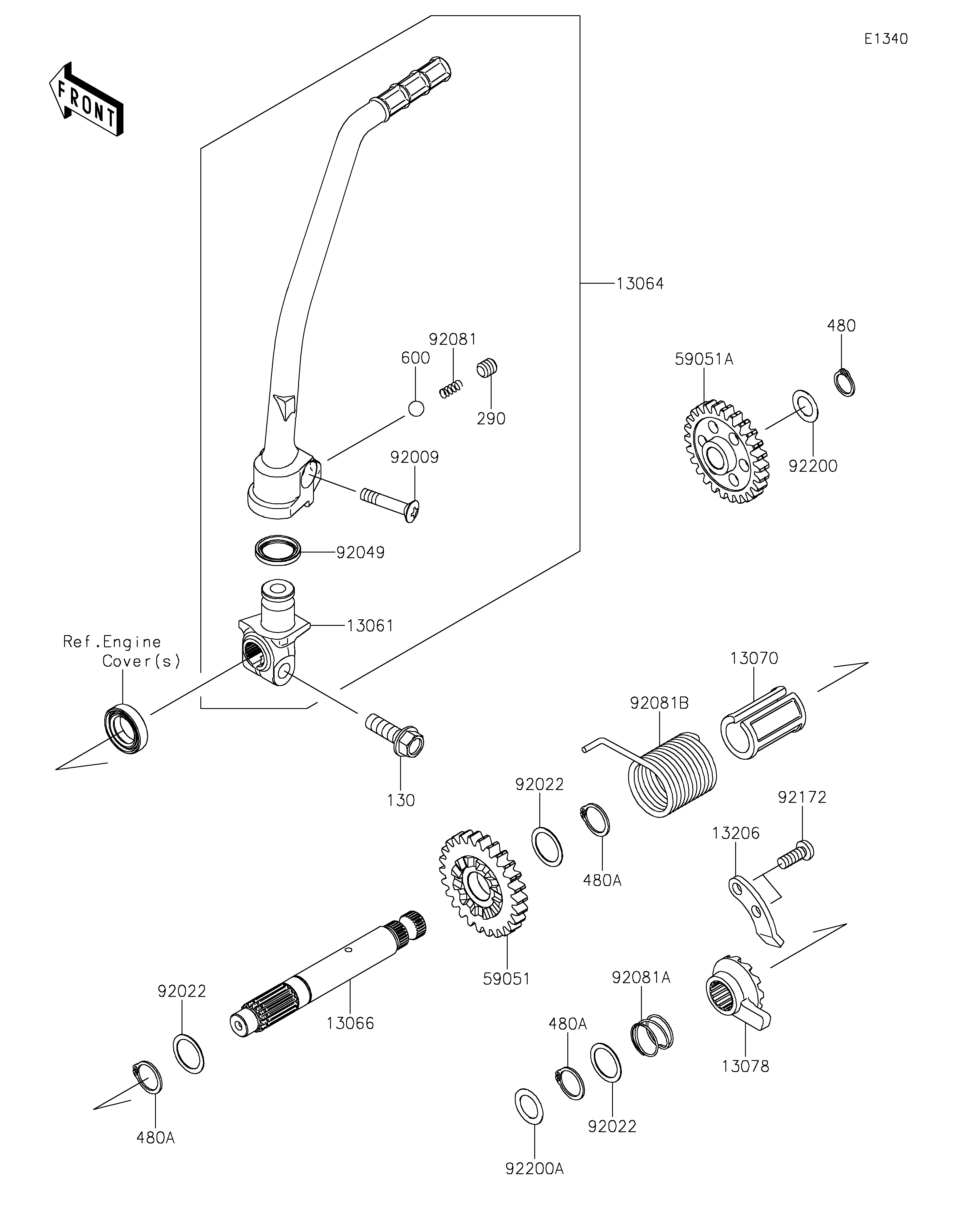

2020 KLX®150L - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
13061
13064
13066
13070
13078
13206
290
480
480A
480A
480A
59051
59051A
600
92009
92022
92022
92022
92049
92081
92081A
92081B
92172
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130CA0825 1
BOSS 13061 13061-0778 1
LEVER-ASSY-KICK 13064 13064-0074 1
SHAFT-KICK 13066 13066-0014 1
GUIDE,KICK SHAFT 13070 13070-1035 1
RATCHET 13078 13078-0030 1
GUIDE-KICK 13206 13206-1070 1
SCREW-SET-SOCKET,8X8 290 290CA0808 1
CIRCLIP-TYPE-C,12MM 480 480J1200 1
CIRCLIP-TYPE-C,16MM 480A 480J1600 3
GEAR-SPUR,KICK STARTER,26T 59051 59051-0735 1
GEAR-SPUR,IDLE,26T 59051A 59051-0738 1
BALL-STEEL,1/4 600 600A0800 1
SCREW,6X27 92009 92009-1607 1
WASHER,16.8X22X0.5 92022 92022-315 3
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICK STARTER 92081B 92081-1276 1
SCREW,6X16 92172 92172-1051 2
WASHER,12.3X20X0.5 92200 92200-0298 1
WASHER,13.2X20X0.5 92200A 92200-0571 1
