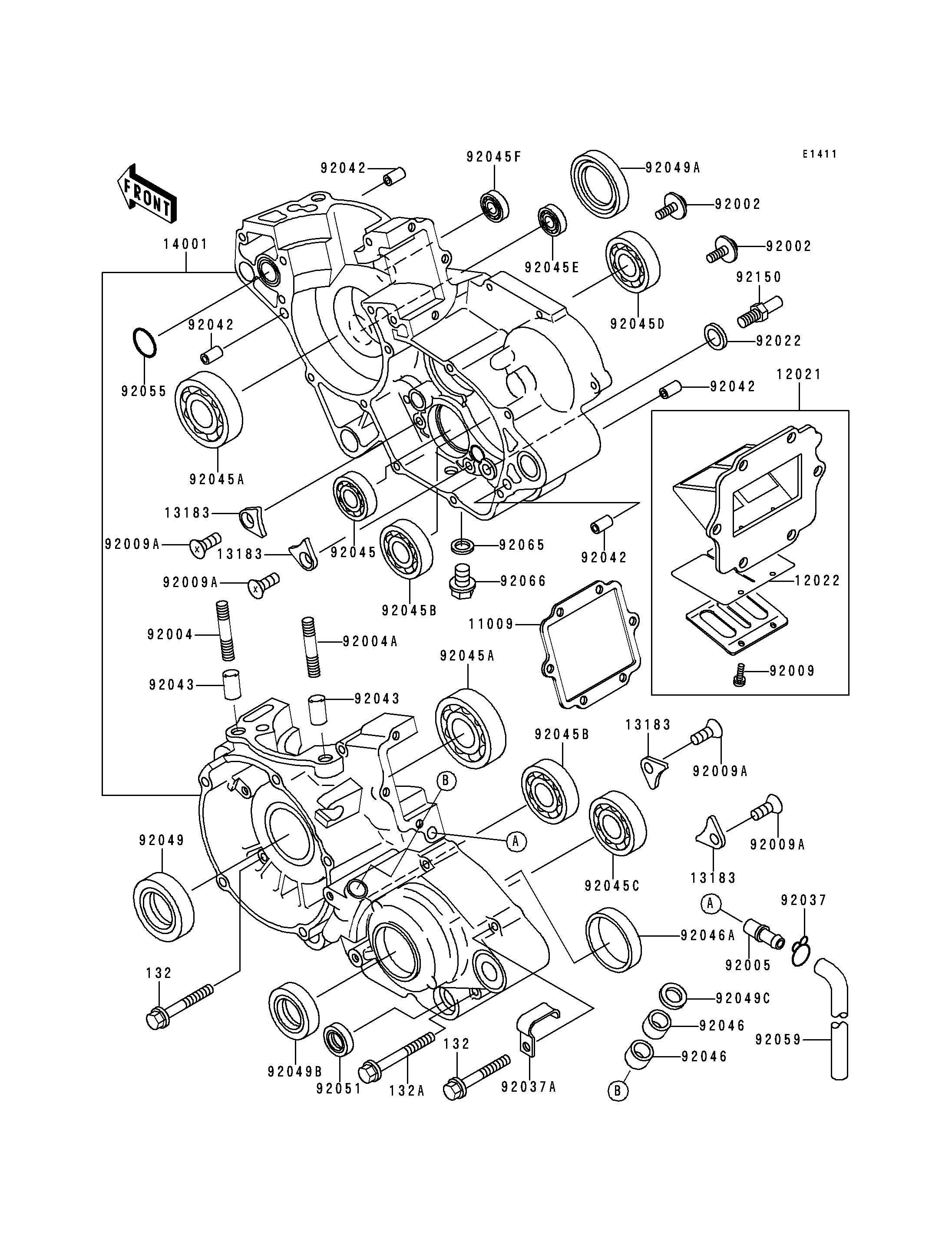

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0640 | 13 | ||
BOLT-FLANGED-SMALL | 132A | 132G0675 | 1 | ||
GASKET,REED VALVE | 11009 | 11009-1941 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-1100 | 1 | ||
VALVE-REED | 12022 | 12022-1074 | 2 | ||
PLATE | 13183 | 13183-1182 | 4 | ||
SET-CRANKCASE | 14001 | 14001-5321 | 1 | ||
BOLT,6X16 | 92002 | 92002-1659 | 2 | ||
STUD,8X45 | 92004 | 92004-1211 | 2 | ||
STUD,8X37 | 92004A | 92004-1213 | 2 | ||
FITTING,BREATHER | 92005 | 92005-1127 | 1 | ||
SCREW,3X6 | 92009 | 92009-1371 | 4 | ||
SCREW,6X8 | 92009A | 92009-1708 | 4 | ||
WASHER,10.2X18X1.0,SK5 | 92022 | 92022-1415 | 1 | ||
CLAMP | 92037 | 92037-1610 | 1 | ||
CLAMP | 92037A | 92037-1764 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 4 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
BEARING-BALL,6905Z | 92045 | 92045-1058 | 1 | ||
BEARING-BALL | 92045A | 92045-1209 | 2 | ||
BEARING-BALL,TMB003C3 | 92045B | 92045-1296 | 2 | ||
BEARING-BALL,SX04A74 | 92045C | 92045-1297 | 1 | ||
BEARING-BALL,6204X15C | 92045D | 92045-1298 | 1 | ||
BEARING-BALL,626MC3 | 92045E | 92045-1304 | 1 | ||
BEARING-BALL,608MC3 | 92045F | 92045-1305 | 1 | ||
BEARING-NEEDLE,HK1010 | 92046 | 92046-1160 | 2 | ||
BEARING-NEEDLE,7E-HKS33X38X8 | 92046A | 92046-1221 | 1 | ||
SEAL-OIL | 92049 | 92049-1300 | 1 | ||
SEAL-OIL | 92049A | 92049-1301 | 1 | ||
SEAL-OIL | 92049B | 92049-1413 | 1 | ||
SEAL-OIL | 92049C | 92049-1414 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
RING-O | 92055 | 92055-086 | 1 | ||
TUBE,6X9X420 | 92059 | 92059-1946 | 1 | ||
GASKET,10.5X16X1,DRAIN PLUG | 92065 | 92065-058 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1388 | 1 | ||
BOLT,RETURN SPRING | 92150 | 92150-1803 | 1 |
