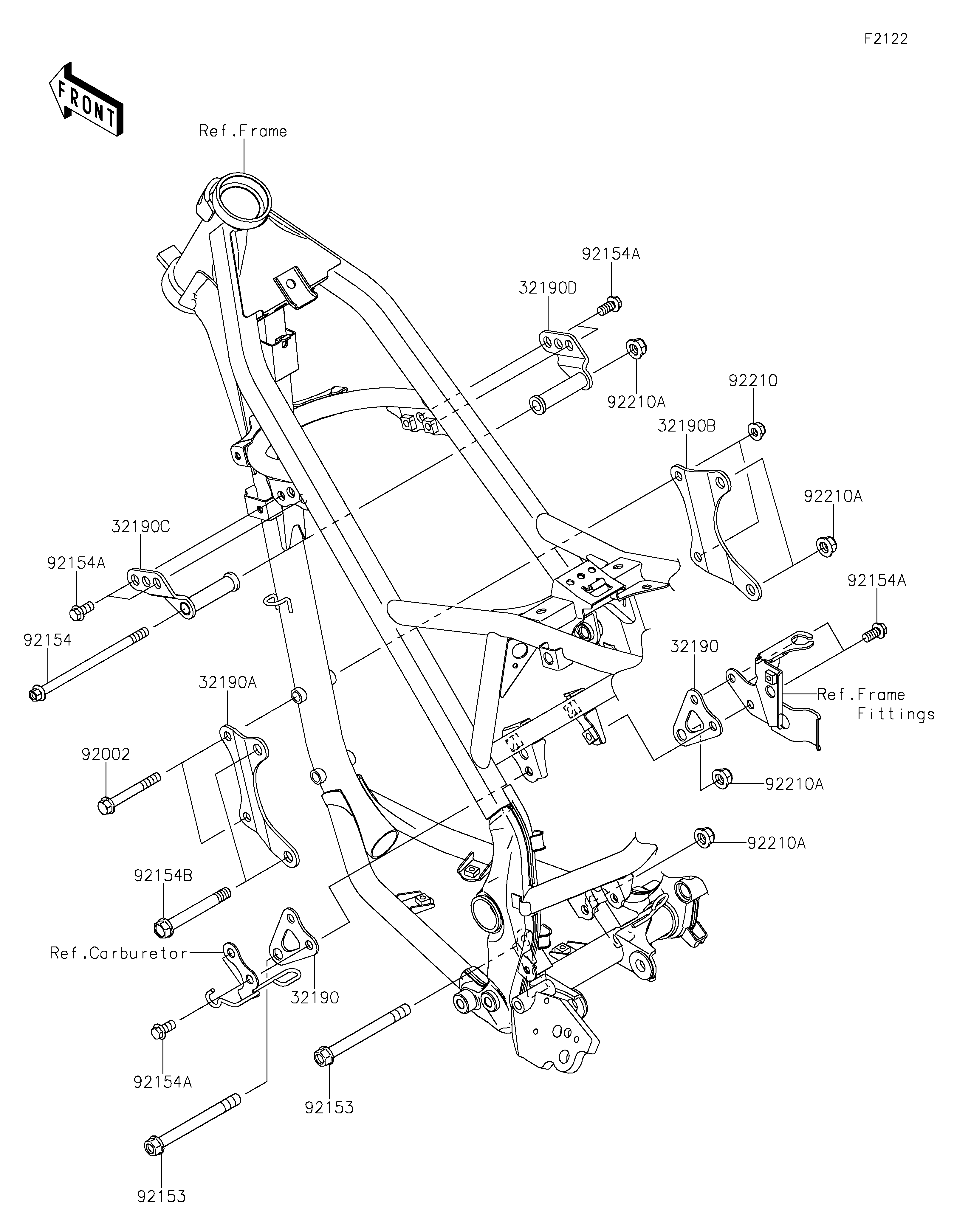

Parts Diagrams |
32190
32190
32190A
32190B
32190C
32190D
92002
92153
92153
92154
92154A
92154A
92154A
92154A
92154B
92210
92210A
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-ENGINE,RR | 32190 | 32190-0310 | 2 | ||
| BRACKET-ENGINE,FR,LH | 32190A | 32190-0429 | 1 | ||
| BRACKET-ENGINE,FR,RH | 32190B | 32190-0430 | 1 | ||
| BRACKET-ENGINE,HEAD,LH | 32190C | 32190-0437 | 1 | ||
| BRACKET-ENGINE,HEAD,RH | 32190D | 32190-0439 | 1 | ||
| BOLT,FLANGED,8X65 | 92002 | 92002-1349 | 2 | ||
| BOLT,FLANGED,10X105 | 92153 | 92153-0614 | 2 | ||
| BOLT,FLANGED,10X170 | 92154 | 92154-0088 | 1 | ||
| BOLT,FLANGED,8X16 | 92154A | 92154-0462 | 8 | ||
| BOLT,FLANGED,10X80 | 92154B | 92154-3759 | 2 | ||
| NUT,LOCK,FLANGED,8MM | 92210 | 92210-0140 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210A | 92210-1080 | 5 |
