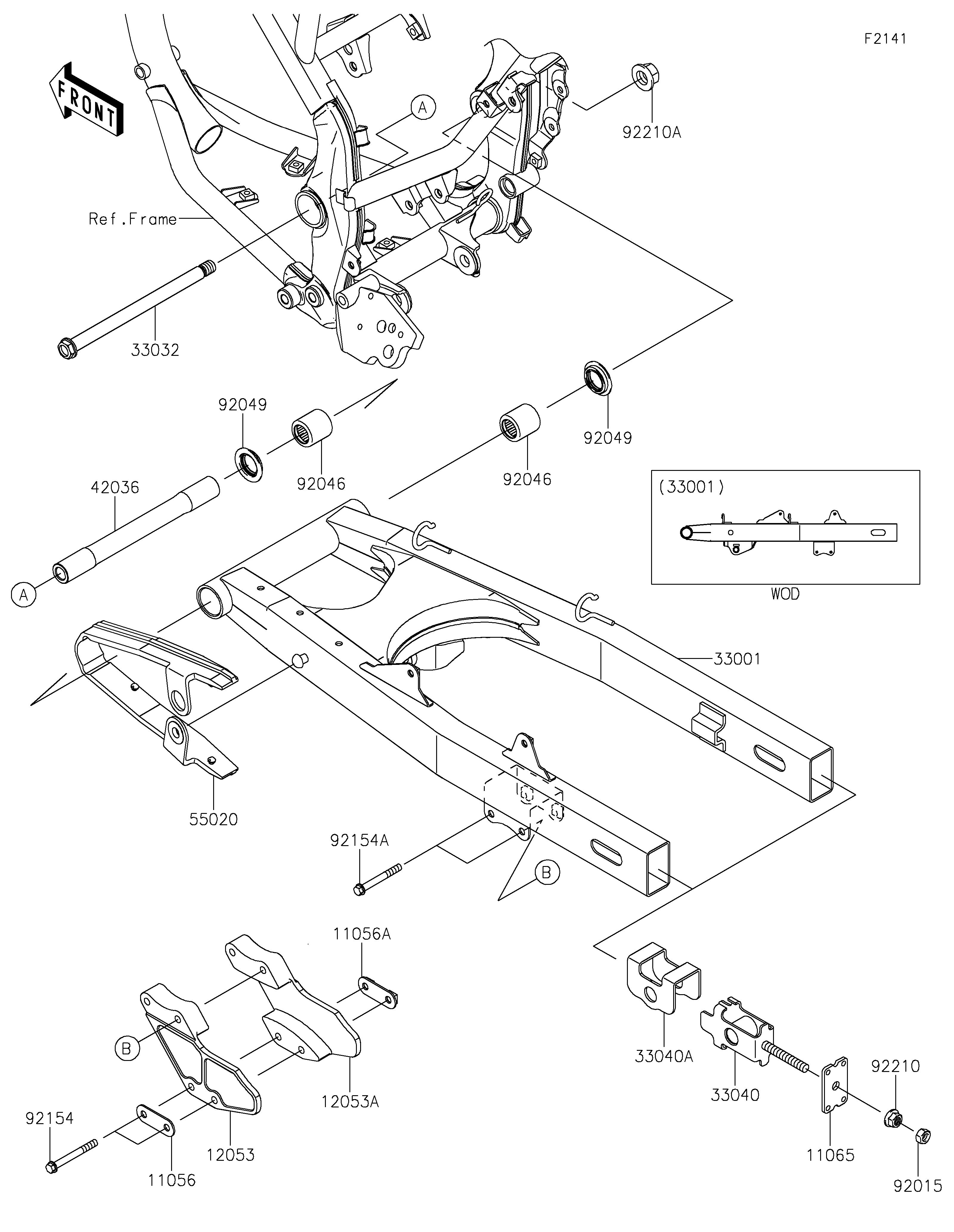

2020 KLX®150L - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11065
12053
12053A
33001
33032
33040
33040A
42036
55020
92015
92046
92046
92049
92049
92154
92154A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2395 1
BRACKET,WITH NUT 11056A 11056-2396 1
CAP 11065 11065-0805 2
GUIDE-CHAIN,LH 12053 12053-0200 1
GUIDE-CHAIN,RH 12053A 12053-0201 1
ARM-COMP-SWING,P.SILVER 33001 33001-0644-458 1
SHAFT-SWING ARM,14X227 33032 33032-0053 1
ADJUSTER-CHAIN 33040 33040-0019 2
ADJUSTER-CHAIN,OUTSIDE 33040A 33040-1162 2
SLEEVE,PIVOT,15.1X20X197.8 42036 42036-0070 1
GUARD 55020 55020-0858 1
NUT,8MM 92015 92015-1364 2
BEARING-NEEDLE,BM202726 92046 92046-1110 2
SEAL-OIL,ARM 92049 92049-1109 2
BOLT,FLANGED,6X55 92154 92154-1190 2
BOLT,FLANGED,6X50 92154A 92154-1193 2
NUT,8MM 92210 92210-0773 2
NUT 92210A 92210-0855 1
