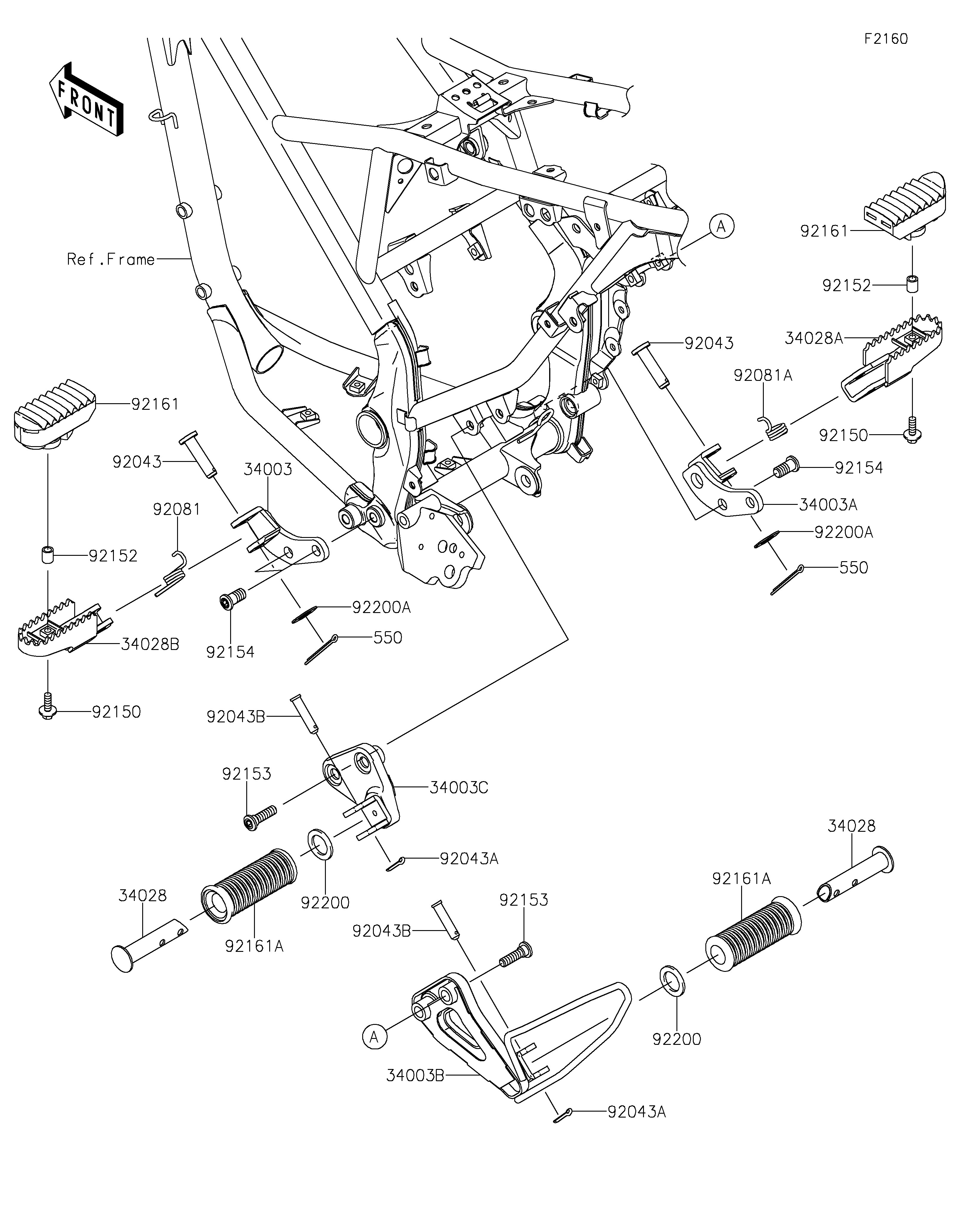

2020 KLX®150L - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34003
34003A
34003B
34003C
34028
34028
34028A
34028B
550
550
92043
92043
92043A
92043A
92043B
92043B
92081
92081A
92150
92150
92152
92152
92153
92153
92154
92154
92161
92161
92161A
92161A
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH,P.SILVER 34003 34003-0128-458 1
HOLDER-STEP,FR,RH,P.SILVER 34003A 34003-0131-458 1
HOLDER-STEP,RR,RH,P.SILVER 34003B 34003-0152-458 1
HOLDER-STEP,RR,LH,P.SILVER 34003C 34003-0160-458 1
STEP,RR 34028 34028-0007 2
STEP,FR,RH,P.SILVER 34028A 34028-0112-458 1
STEP,FR,LH,P.SILVER 34028B 34028-0115-458 1
PIN-COTTER,2.0X18 550 550AA2018 2
PIN,10X35 92043 92043-0744 2
PIN,COTTER,2.5X18 92043A 92043-0771 2
PIN,8X31 92043B 92043-080 2
SPRING,STEP,LH 92081 92081-1606 1
SPRING,STEP,RH 92081A 92081-1607 1
BOLT,FLANGED,6X20 92150 92150-1339 2
COLLAR 92152 92152-0933 2
BOLT,SOCKET,8X30 92153 92153-1624 4
BOLT,SOCKET,10X20 92154 92154-1180 4
DAMPER,STEP 92161 92161-0848 2
DAMPER,REAR STEP 92161A 92161-0866 2
WASHER,20X30X4.5 92200 92200-0869 2
WASHER,10.5X20X1.0 92200A 92200-0870 2
