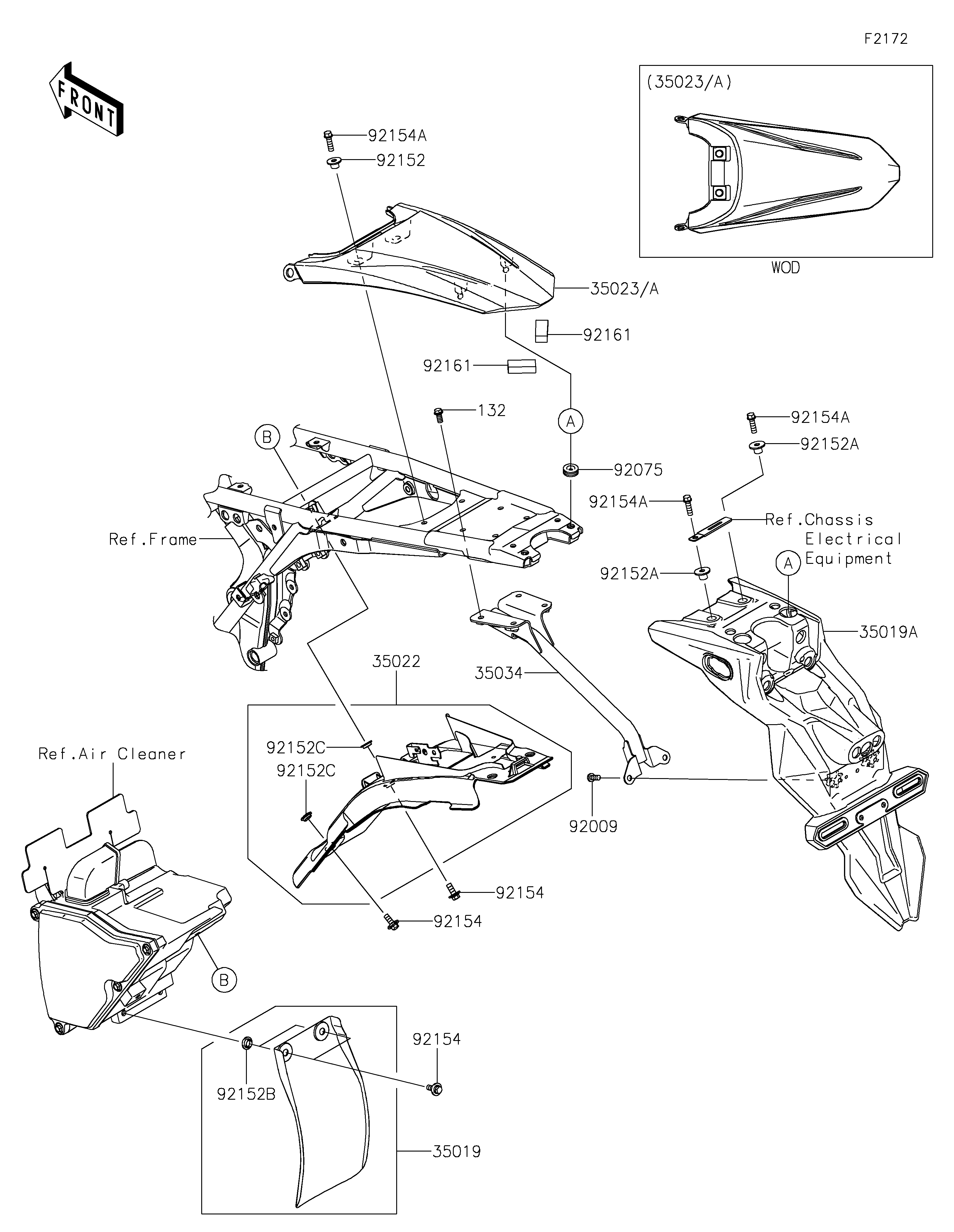

2020 KLX®150L - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
132
35019
35019A
35022
35023
35034
92009
92075
92152
92152A
92152A
92152B
92152C
92152C
92154
92154
92154
92154A
92154A
92154A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
FLAP,RR FENDER,FR 35019 35019-0599 1
FLAP 35019A 35019-0613 1
FENDER-COMP-REAR 35022 35022-0107 1
FENDER-REAR,L.GREEN 35023 35023-0402-290 1
REINFORCE 35034 35034-0595 1
SCREW,6X14 92009 92009-3845 2
DAMPER 92075 92075-1629 2
COLLAR 92152 92152-0597 2
COLLAR,6.5X10X10.4 92152A 92152-1688 2
COLLAR,8.8X16X4 92152B 92152-1731 2
COLLAR,8.8X16X4 92152C 92152-2185 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 4
BOLT,FLANGED,6X20 92154A 92154-1219 4
DAMPER,15X35X10 92161 92161-1559 2
