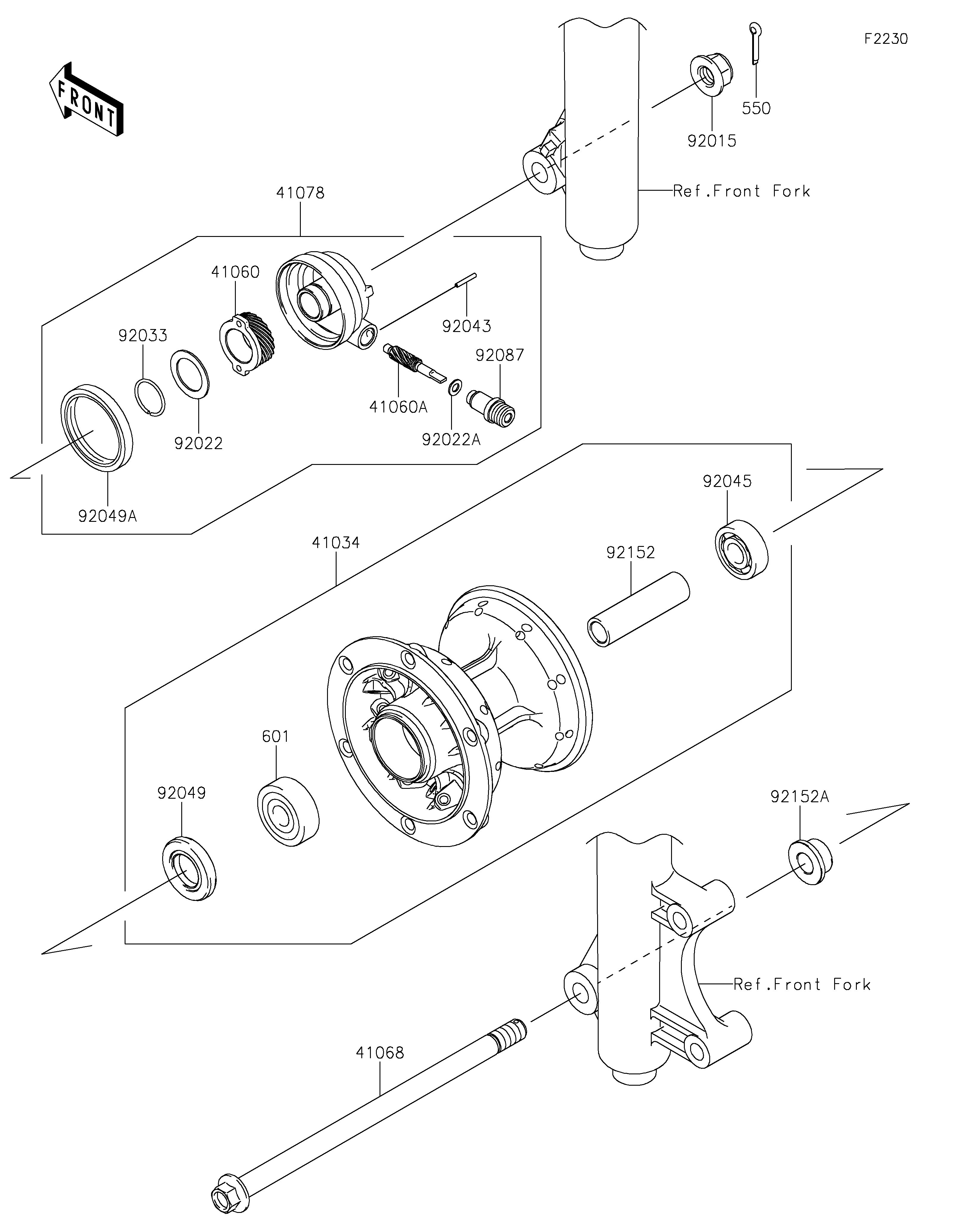

2020 KLX®150L - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
41034
41060
41060A
41068
41078
550
601
92015
92022
92022A
92033
92043
92045
92049
92049A
92087
92152
92152A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR 41034 41034-0595 1
GEAR-METER SCREW,DRIVE,24T 41060 41060-0012 1
GEAR-METER SCREW,PINION,8T 41060A 41060-0013 1
AXLE,FR,12X226 41068 41068-0582 1
CASE-ASSY-METER GEAR 41078 41078-0016 1
PIN-COTTER,2.5X20 550 550AA2520 1
BEARING-BALL,#6201UUC3 601 601B6301UU 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 1
WASHER,20X29X1.0 92022 92022-1510 1
WASHER,5X9.5X0.8 92022A 92022-1511 1
RING-SNAP,19MM 92033 92033-1160 1
PIN,SPRING,2X14 92043 92043-1220 1
BEARING-BALL,601B6201UU 92045 92045-0747 1
SEAL-OIL,20X37X6.5 92049 92049-0113 1
SEAL-OIL,42X50X6 92049A 92049-0727 1
BUSHING-METER GEAR 92087 92087-1051 1
COLLAR,12.2X17.3X62.5 92152 92152-0709 1
COLLAR 92152A 92152-0736 1
