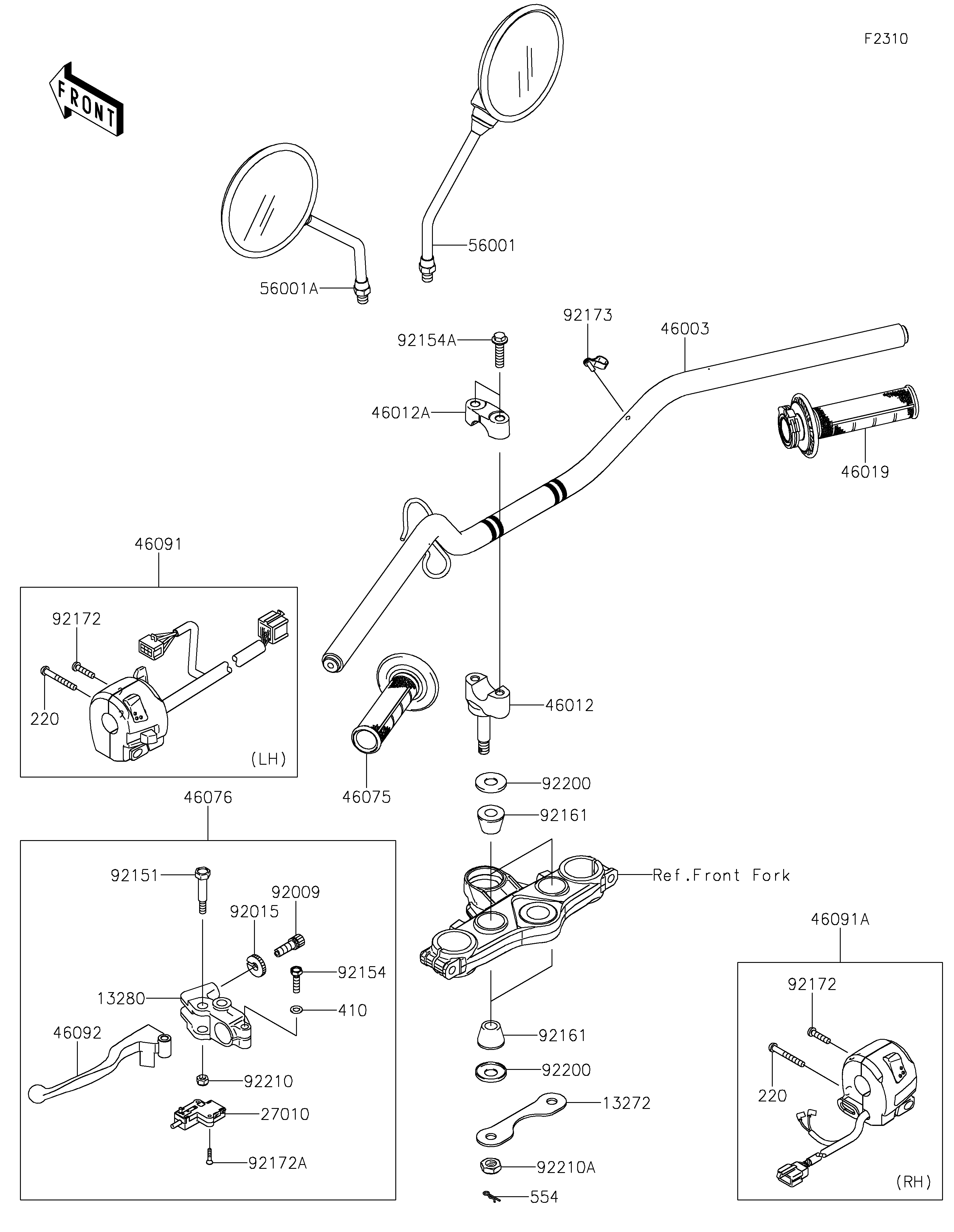

2020 KLX®150L - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13272
13280
220
220
27010
410
46003
46012
46012A
46019
46075
46076
46091
46091A
46092
554
56001
56001A
92009
92015
92151
92154
92154A
92161
92161
92172
92172
92172A
92173
92200
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-0795 1
HOLDER,CLUTCH LEVER 13280 13280-0105 1
SCREW-PAN-CROS,5X40 220 220AB0540 2
SWITCH,CLUTCH 27010 27010-0729 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
HANDLE,P.SILVER 46003 46003-0667-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012 46012-0075-458 2
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0380-458 2
GRIP-ASSY,THROTTLE 46019 46019-0026 1
GRIP,LH 46075 46075-0587 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0148 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0306 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0310 1
LEVER-GRIP,CLUTCH 46092 46092-0050 1
PIN-SNAP 554 554DA0800 2
MIRROR-ASSY,RH 56001 56001-0166 1
MIRROR-ASSY,LH 56001A 56001-0169 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
BOLT,LEVER SET 92151 92151-1986 1
BOLT,UPSET,6X22 92154 92154-1422 1
BOLT,FLANGED,8X30 92154A 92154-3762 4
DAMPER,12X26X19 92161 92161-2116 4
SCREW-PAN-CROS,5X22 92172 92172-0469 2
SCREW-CSK-CROS,3X16 92172A 92172-1187 2
CLAMP,SPEED,L=58 92173 92173-1077 1
WASHER,12.5X27.6X1.2 92200 92200-0872 4
NUT,LOCK,6MM 92210 92210-1551 1
NUT,LOCK,10MM 92210A 92210-1672 2
