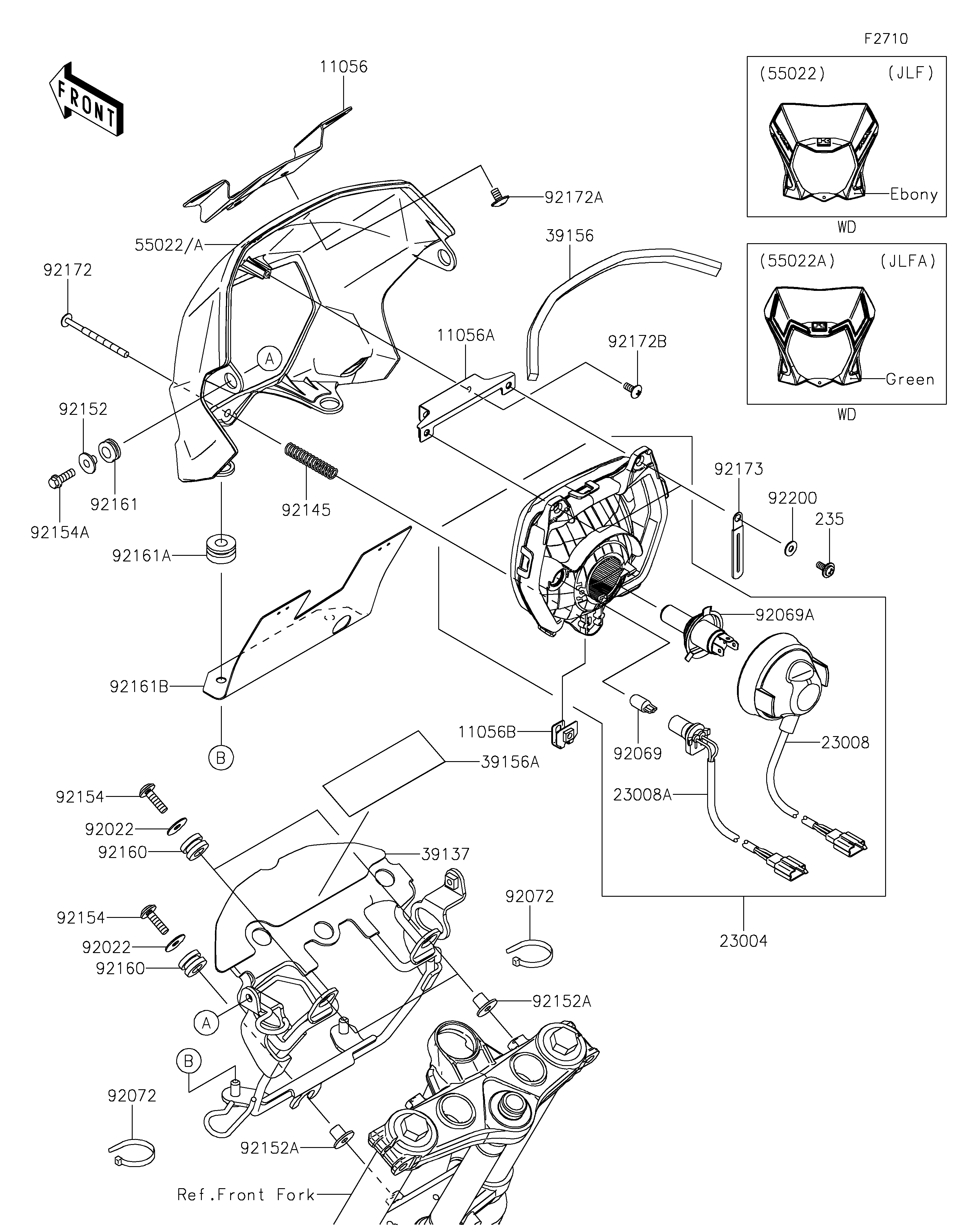

2020 KLX®150L - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
23004
23008
23008A
235
39137
39156
39156A
55022A
92022
92022
92069
92069A
92072
92072
92145
92152
92152A
92152A
92154
92154
92154A
92160
92160
92161
92161A
92161B
92172
92172A
92172B
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7198 1
BRACKET 11056A 11056-7216 1
BRACKET 11056B 11056-7968 1
LAMP-HEAD 23004 23004-0357 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0173 1
SOCKET-ASSY,POSITION LAMP 23008A 23008-0174 1
SCREW-PAN-WP-CROS,5X12 235 235AA0512 2
STAY-COMP,HEAD LAMP 39137 39137-0674 1
PAD,10X260X7 39156 39156-1857 1
PAD,35X110 39156A 39156-2305 1
COVER-HEAD LAMP,L.GREEN 55022A 55022-5363-290 1
WASHER,PLAIN,6.5X20X1 92022 92022-165 3
BULB,12V 5W 92069 92069-0059 1
BULB,12V35/35W 92069A 92069-0086 1
BAND,L=220 92072 92072-0044 2
SPRING 92145 92145-1645 1
COLLAR 92152 92152-0295 2
COLLAR,6.5X10X13.1 92152A 92152-2494 3
BOLT,SOCKET,6X22 92154 92154-3758 3
BOLT,FLANGED,6X18 92154A 92154-3761 2
DAMPER,10X20X12 92160 92160-1167 3
DAMPER,10X18X7.5 92161 92161-1535 2
DAMPER,7.5X22X11 92161A 92161-1536 2
DAMPER 92161B 92161-2115 1
SCREW,5X70 92172 92172-0909 1
SCREW,CROS,6X10 92172A 92172-1254 3
SCREW,CROS,5X10 92172B 92172-1255 2
CLAMP 92173 92173-1424 2
WASHER,5.2X13X1 92200 92200-1694 2
