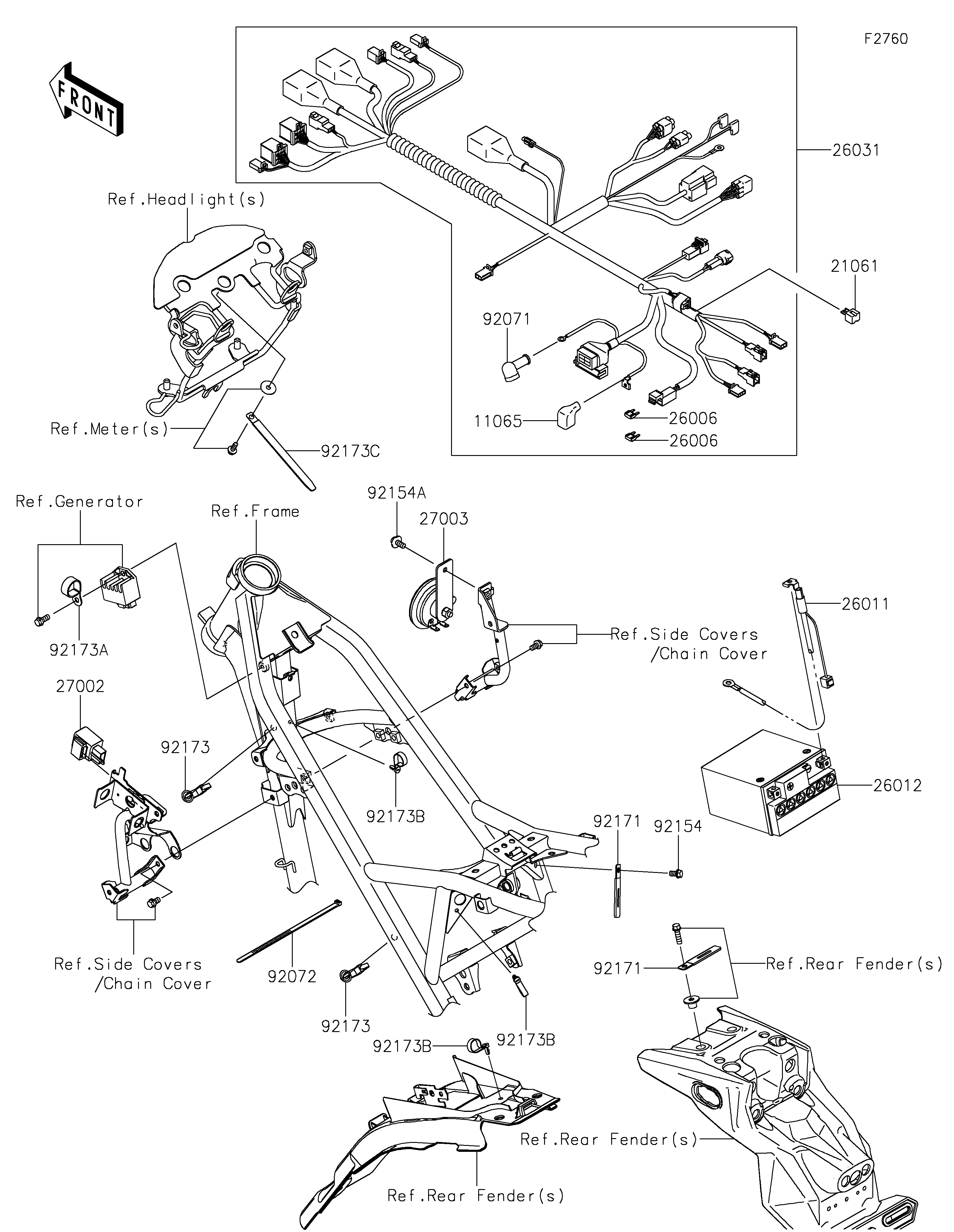

2020 KLX®150L - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11065
21061
26006
26006
26011
26012
26031
27002
27003
92071
92072
92154
92154A
92171
92171
92173
92173
92173A
92173B
92173B
92173B
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0237 1
RECTIFIER 21061 21061-1003 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 2
WIRE-LEAD,BATTERY(-) 26011 26011-0154 1
BATTERY,YTX7L-BS,12V 6AH 26012 26012-0909 1
HARNESS,MAIN 26031 26031-1836 1
RELAY-ASSY 27002 27002-0036 1
HORN 27003 27003-0134 1
GROMMET 92071 92071-0707 1
BAND,L=202 92072 92072-1195 1
BOLT,FLANGED,6X10 92154 92154-0459 1
BOLT,FLANGED,6X14 92154A 92154-1231 1
CLAMP,WIRING HARNESS,L=60 92171 92171-1425 2
CLAMP 92173 92173-0105 2
CLAMP,THROTTLE CABLE 92173A 92173-1069 1
CLAMP,SPEED,L=58 92173B 92173-1077 3
CLAMP,L=150 92173C 92173-1078 1
