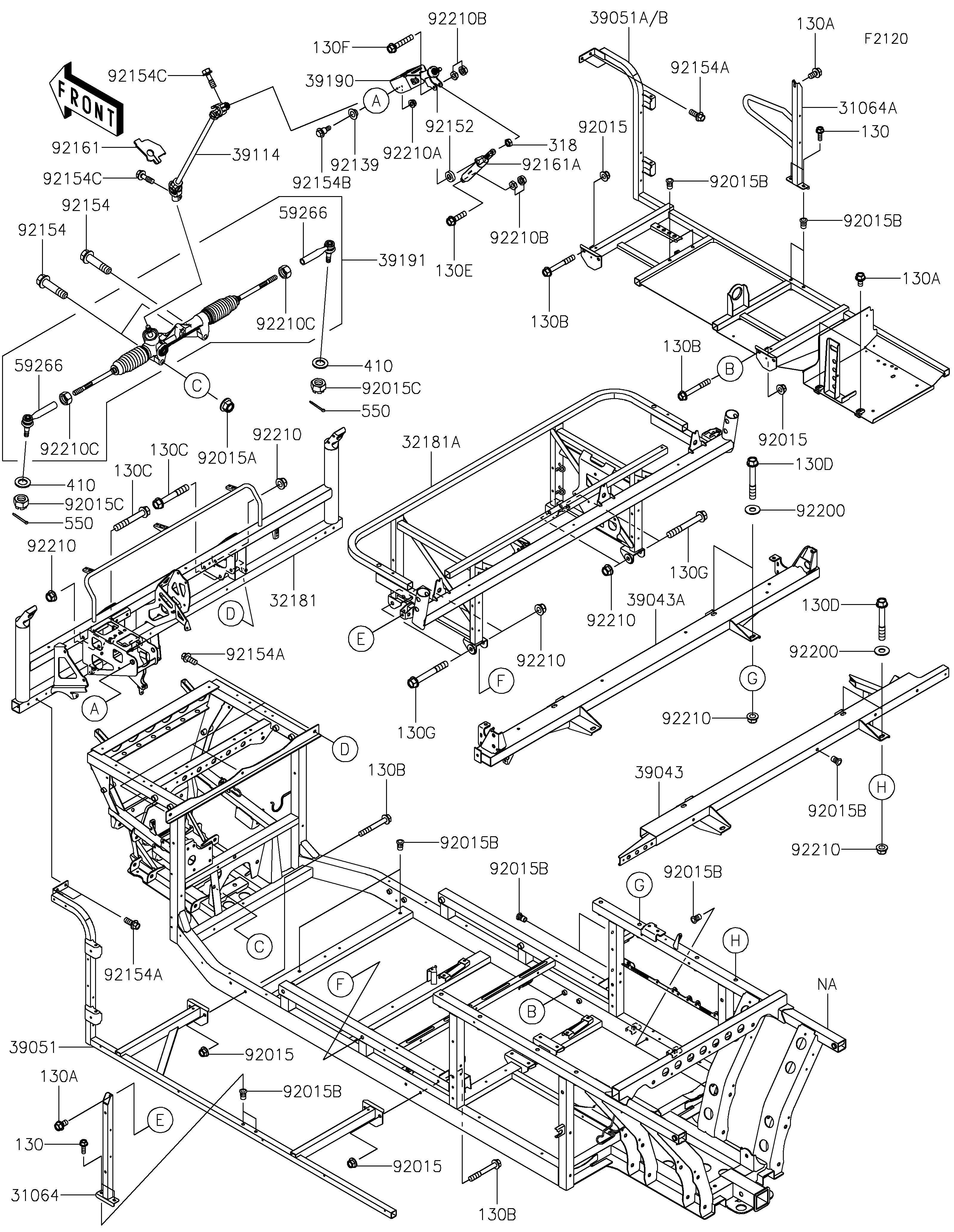

2016 MULE PRO-DX™ DIESEL - Frame

DOWNLOAD PDF
SELECT A NEW PART
31064
31064
31064A
31064A
32181
32181
32181A
32181A
39043
39043
39043A
39043A
39051
39051
39051A
39051A
39051B
39051B
39114
39114
39190
39190
39191
39191
59266
59266
59266
59266
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92015C
92015C
92139
92139
92152
92152
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92154C
92154C
92161
92161
92161A
92161A
92200
92200
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210C
92210C
92210C
92210C
130
130
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
130E
130E
130F
130F
130G
130G
130G
130G
318
318
410
410
410
410
550
550
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP,SEAT SIDE,LH 31064 31064-0664 1
PIPE-COMP,SEAT SIDE,RH 31064A 31064-0665 1
FRAME-SUB-COMP,DASH PANEL 32181 32181-0011 1
FRAME-SUB-COMP,SEAT 32181A 32181-0013 1
CROSSMEMBER-COMP,RR CROSS 39043 39043-0020 1
CROSSMEMBER-COMP,C-PILLAR 39043A 39043-0026 1
FRAME-COMP-SIDE,LH 39051 39051-0003 1
FRAME-COMP-SIDE,RH 39051A 39051-0008 1 ( - JKAAFCD1 GB500077)
FRAME-COMP-SIDE,RH 39051B 39051-0014 1 (JKAAFCD1 GB500078 - )
SHAFT-COMP-STRG 39114 39114-0032 1
SHAFT-ASSY-STEERING 39190 39190-0006 1
GEAR-ASSY-STEERING 39191 39191-0030 1
JOINT-BALL 59266 59266-0712 2
NUT,8MM 92015 92015-1432 8
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 3
NUT,POP,6MM,L=15 92015B 92015-1791 12
NUT,CASTLE,14MM 92015C 92015-1841 2
BUSHING 92139 92139-0230 2
COLLAR,8.2X18X5 92152 92152-1848 1
BOLT,FLANGED,12X50 92154 92154-1008 3
BOLT,FLANGED,8X20 92154A 92154-1226 7
BOLT,6X21.5 92154B 92154-1320 2
BOLT 92154C 92154-4224 2
DAMPER 92161 92161-1688 1
DAMPER,GAS SPRING 92161A 92161-1825 1
WASHER,10.5X25X1.6 92200 92200-1595 8
NUT,LOCK,FLANGED,10MM 92210 92210-0276 16
NUT,LOCK,FLANGED,6MM 92210A 92210-0303 2
NUT,HARD LOCK,8MM 92210B 92210-0934 2
NUT,16MM 92210C 92210-0969 2
BOLT-FLANGED,6X18 130 130BA0618 4
BOLT-FLANGED,8X14 130A 130BA0814 4
BOLT-FLANGED,8X60 130B 130BA0860 8
BOLT-FLANGED,10X65 130C 130BA1065 4
BOLT-FLANGED,10X70 130D 130BA1070 8
BOLT-FLANGED,8X30 130E 130CA0830 1
BOLT-FLANGED,8X45 130F 130CA0845 1
BOLT-FLANGED,10X75 130G 130CA1075 4
NUT-HEX-SMALL,8MM 318 318BA0800 1
WASHER-PLAIN-SMALL,14MM 410 410AA1400 2
PIN-COTTER,3.0X25 550 550AA3025 2
