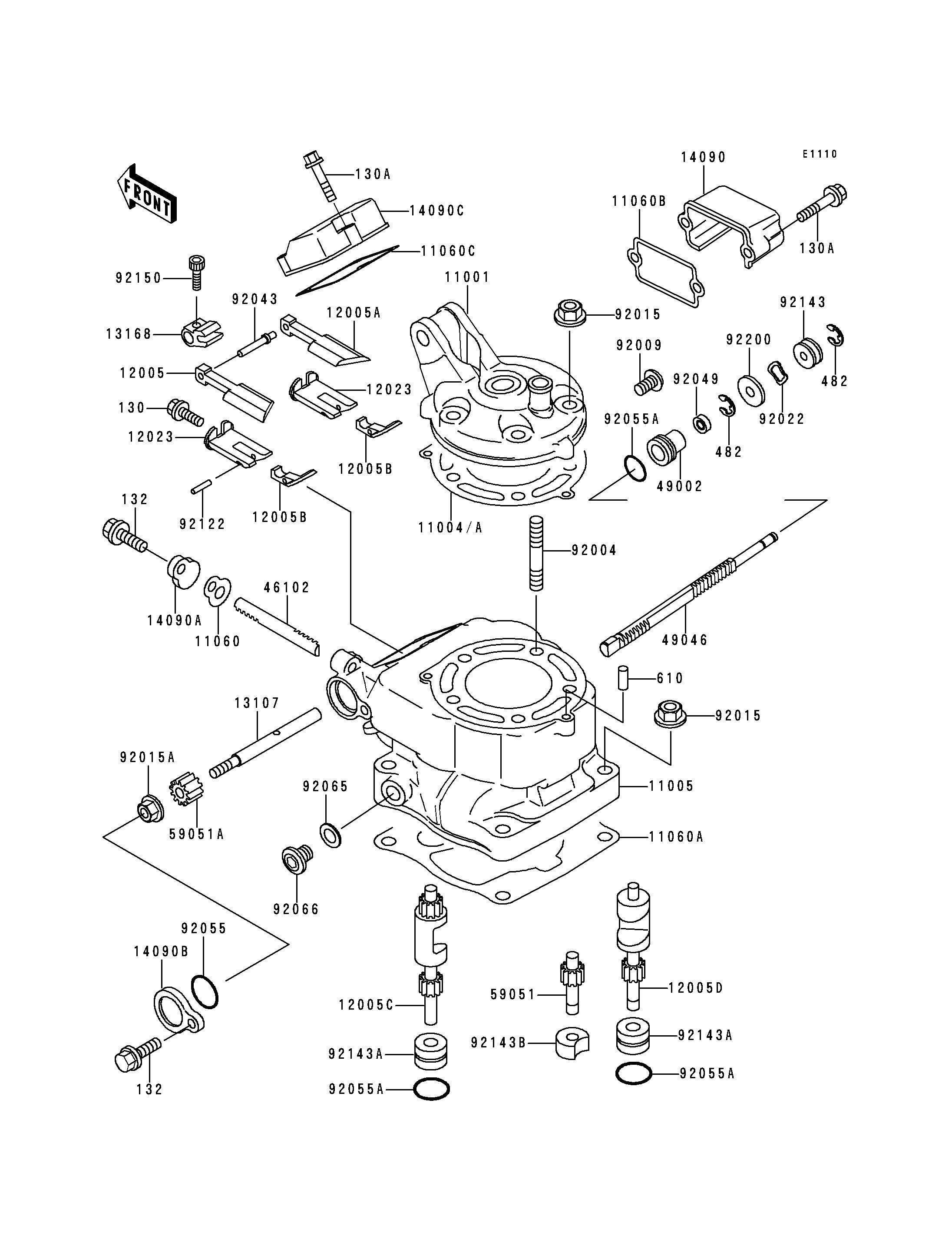

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-CYLINDER | 11001 | 11001-1415 | 1 | ||
| GASKET-HEAD,T=0.46 | 11004 | 11004-1252 | 1 | (OPTION) | |
| GASKET-HEAD,T=0.26 | 11004A | 11004-1300 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-1752 | 1 | ||
| GASKET,GOVERNOR ROD | 11060 | 11060-1346 | 1 | ||
| GASKET,CYLINDER BASE | 11060A | 11060-1647 | 1 | ||
| GASKET,RH,GOVERNOR | 11060B | 11060-1686 | 1 | ||
| GASKET,MAIN COVER | 11060C | 11060-1690 | 1 | ||
| VALVE-EXHAUST,MAIN,LH | 12005 | 12005-1207 | 1 | ||
| VALVE-EXHAUST,MAIN,RH | 12005A | 12005-1208 | 1 | ||
| VALVE-EXHAUST,MAIN | 12005B | 12005-1209 | 2 | ||
| VALVE-EXHAUST,LH | 12005C | 12005-1217 | 1 | ||
| VALVE-EXHAUST,RH | 12005D | 12005-1218 | 1 | ||
| HOLDER-VALVE,MAIN | 12023 | 12023-1073 | 2 | ||
| SHAFT,MAIN | 13107 | 13107-1284 | 1 | ||
| LEVER,MAIN VALVE | 13168 | 13168-1557 | 1 | ||
| COVER,GOVERNOR | 14090 | 14090-1130 | 1 | ||
| COVER,GOVERNOR ROD | 14090A | 14090-1132 | 1 | ||
| COVER,MAIN VALVE | 14090B | 14090-1133 | 1 | ||
| COVER,MAIN VALVE | 14090C | 14090-1134 | 1 | ||
| ROD,MAIN VALVE | 46102 | 46102-1319 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-1100 | 1 | ||
| ROD-GOVERNOR | 49046 | 49046-1071 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1249 | 1 | ||
| GEAR-SPUR,MAIN VALVE | 59051A | 59051-1252 | 1 | ||
| STUD,8X28.5 | 92004 | 92004-1060 | 5 | ||
| SCREW,5X10 | 92009 | 92009-1502 | 1 | ||
| NUT,8MM | 92015 | 92015-1143 | 9 | ||
| NUT,6MM | 92015A | 92015-1572 | 1 | ||
| WASHER,WAVE | 92022 | 92022-1978 | 1 | ||
| PIN | 92043 | 92043-1459 | 1 | ||
| SEAL-OIL,RSO-5.5X11X4 | 92049 | 92049-1206 | 1 | ||
| RING-O,16.8X2.4 | 92055 | 92055-1258 | 1 | ||
| RING-O,14.5X1.5 | 92055A | 92055-1399 | 3 | ||
| GASKET,12.5X18X1,DRAIN PLUG | 92065 | 92065-073 | 1 | ||
| PLUG,12X10 | 92066 | 92066-1222 | 1 | ||
| ROLLER,3X15.8 | 92122 | 92122-1126 | 2 | ||
| COLLAR,ROD | 92143 | 92143-1637 | 1 | ||
| COLLAR,VALVE | 92143A | 92143-1748 | 2 | ||
| BOLT-FLANGED | 130 | 130G0508 | 2 | ||
| BOLT-FLANGED | 130A | 130G0525 | 5 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
| CIRCLIP-TYPE-E,4MM | 482 | 482J4000 | 2 | ||
| ROLLER,4X8 | 610 | 610A0408 | 2 | ||
| COLLAR,IDLE GEAR | 92143B | 92143-1749 | 1 | ||
| BOLT,SOCKET,4X10 | 92150 | 92150-1844 | 1 | ||
| WASHER,5.6X18X1.2 | 92200 | 92200-1129 | 1 |
| HEAD-CYLINDER | |
| REF # | 11001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,T=0.46 | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| GASKET-HEAD,T=0.26 | |
| REF # | 11004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GOVERNOR ROD | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,RH,GOVERNOR | |
| REF # | 11060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,MAIN COVER | |
| REF # | 11060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,MAIN,LH | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,MAIN,RH | |
| REF # | 12005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,MAIN | |
| REF # | 12005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,LH | |
| REF # | 12005C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,RH | |
| REF # | 12005D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-VALVE,MAIN | |
| REF # | 12023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT,MAIN | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,MAIN VALVE | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GOVERNOR | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GOVERNOR ROD | |
| REF # | 14090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MAIN VALVE | |
| REF # | 14090B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MAIN VALVE | |
| REF # | 14090C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,MAIN VALVE | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-GOVERNOR | |
| REF # | 49046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,IDLE | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,MAIN VALVE | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X28.5 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,WAVE | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RSO-5.5X11X4 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,16.8X2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,14.5X1.5 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,12.5X18X1,DRAIN PLUG | |
| REF # | 92065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,12X10 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,3X15.8 | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ROD | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,VALVE | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,4MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,IDLE GEAR | |
| REF # | 92143B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,4X10 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.6X18X1.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
