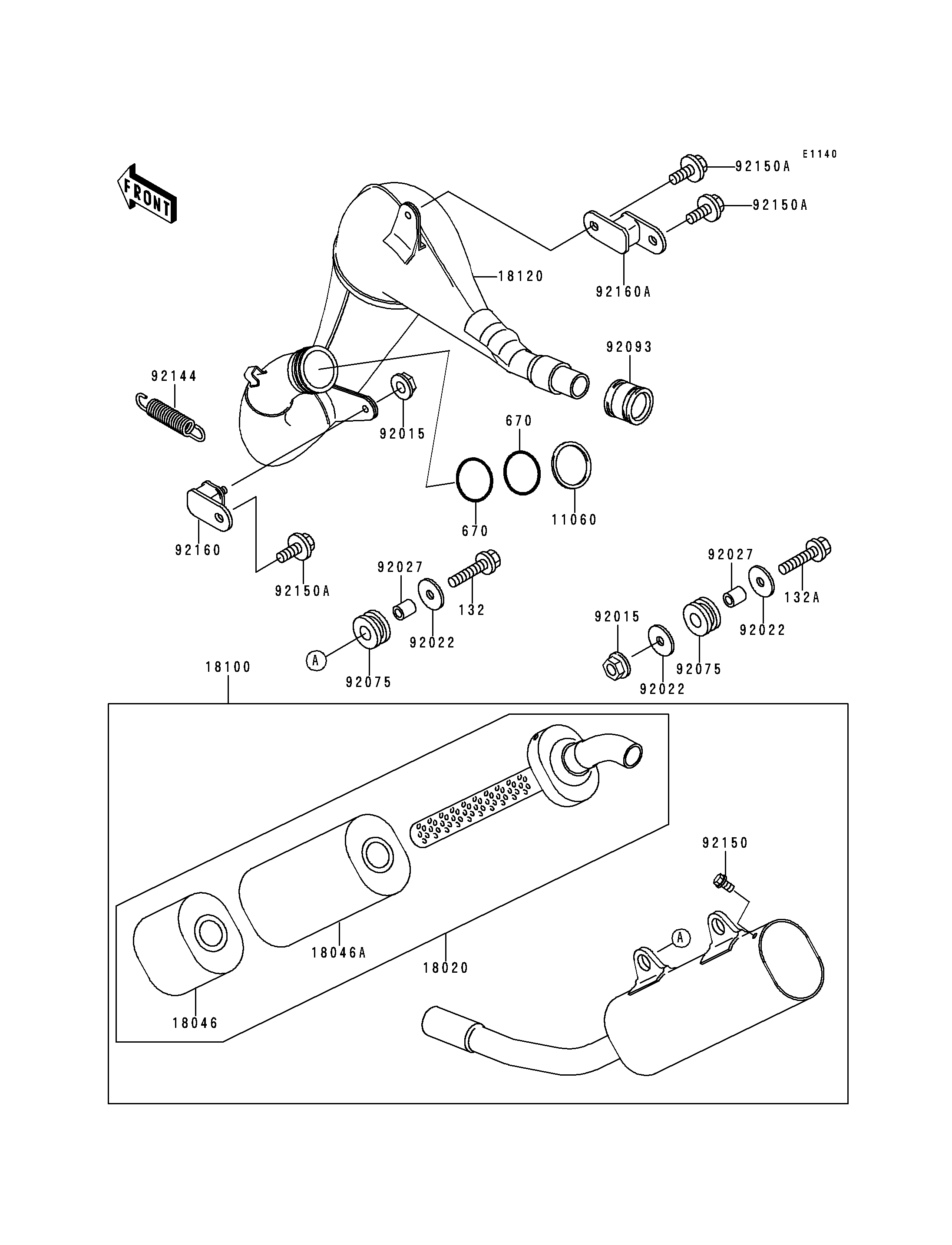

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0625 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0635 | 1 | ||
O RING,39MM | 670 | 670E3039 | 2 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1370 | 1 | ||
BAFFLE | 18020 | 18020-1176 | 1 | ||
WOOL,L=110 | 18046 | 18046-1182 | 1 | ||
WOOL,L=200 | 18046A | 18046-1183 | 1 | ||
BODY-ASSY-MUFFLER | 18100 | 18100-1066 | 1 | ||
CHAMBER-EXHAUST | 18120 | 18120-1056 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 2 | ||
WASHER,6.5X22X1.6 | 92022 | 92022-237 | 3 | ||
COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
DAMPER,MUFFLER FITTING | 92075 | 92075-1857 | 2 | ||
SEAL,MUFFLER CONNECTING | 92093 | 92093-1363 | 1 | ||
SPRING,EXHAUST CONNECTING | 92144 | 92144-1470 | 2 | ||
BOLT,5X8 | 92150 | 92150-1406 | 4 | ||
BOLT,6X12 | 92150A | 92150-1435 | 3 | ||
DAMPER,MUFFLER,FR | 92160 | 92160-1176 | 1 | ||
DAMPER,MUFFLER,RR | 92160A | 92160-1201 | 1 |
