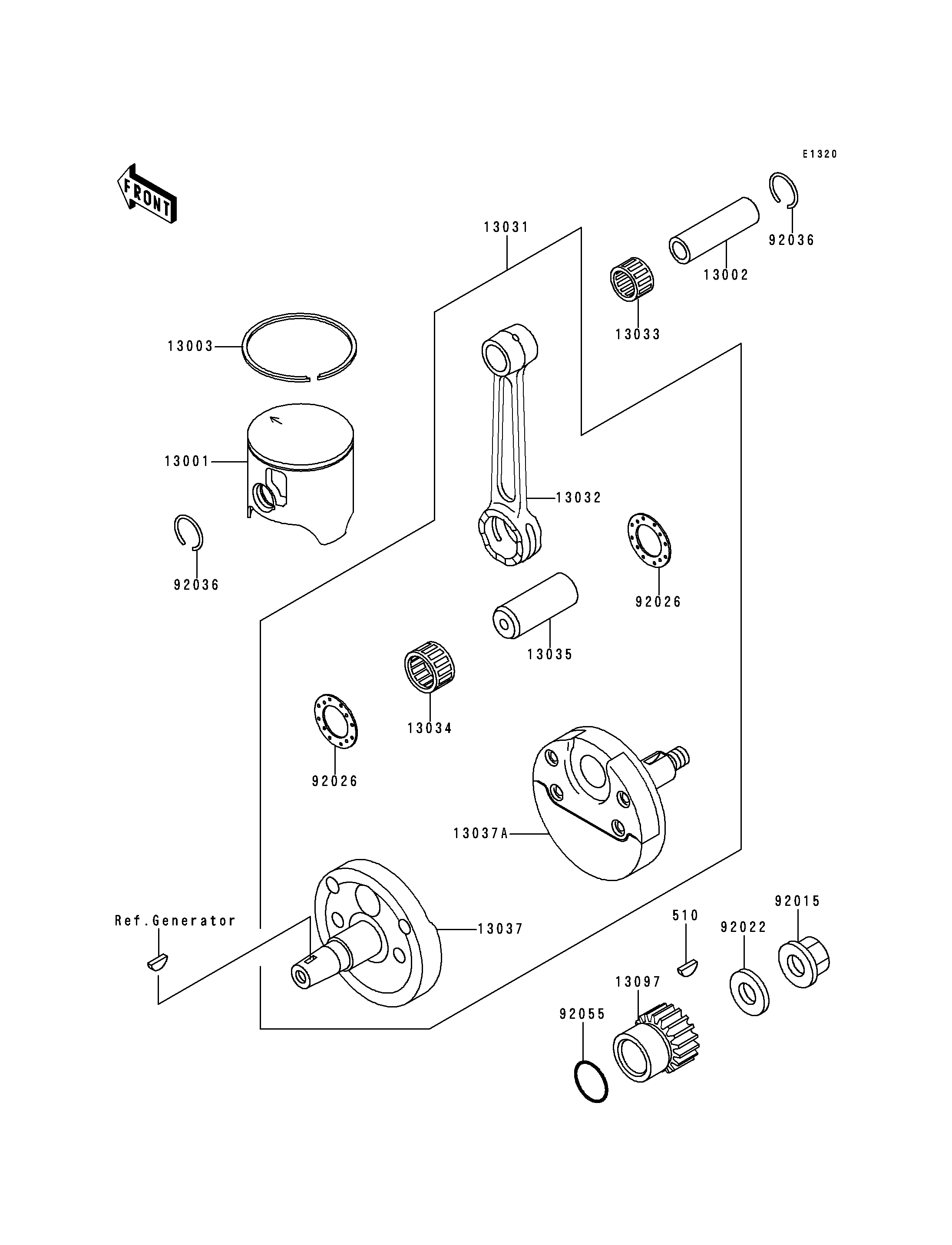

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
KEY-WOODRUFF 510 510A5100 1
PISTON-ENGINE 13001 13001-1429 1
PIN-PISTON 13002 13002-1099 1
RING-PISTON TOP 13003 13003-1356 1
CRANKSHAFT-COMP 13031 13031-1385 1
ROD-CONNECTING 13032 13032-1196 1
BEARING-SMALL END 13033 13033-1057 1
BEARING-BIG END,B4 13034 13034-1099 1
PIN-CRANK 13035 13035-1010 1
CRANKSHAFT,LH 13037 13037-1482 1
CRANKSHAFT,RH 13037A 13037-1484 1
GEAR-PRIMARY SPUR,20T 13097 13097-1311 1
NUT,FLANGED,12MM 92015 92015-1156 1
WASHER 92022 92022-1831 1
SPACER,22.2X37X1.0 92026 92026-1136 2
RING-SNAP 92036 92036-005 2
RING-O 92055 92055-086 1
