Part Item Information

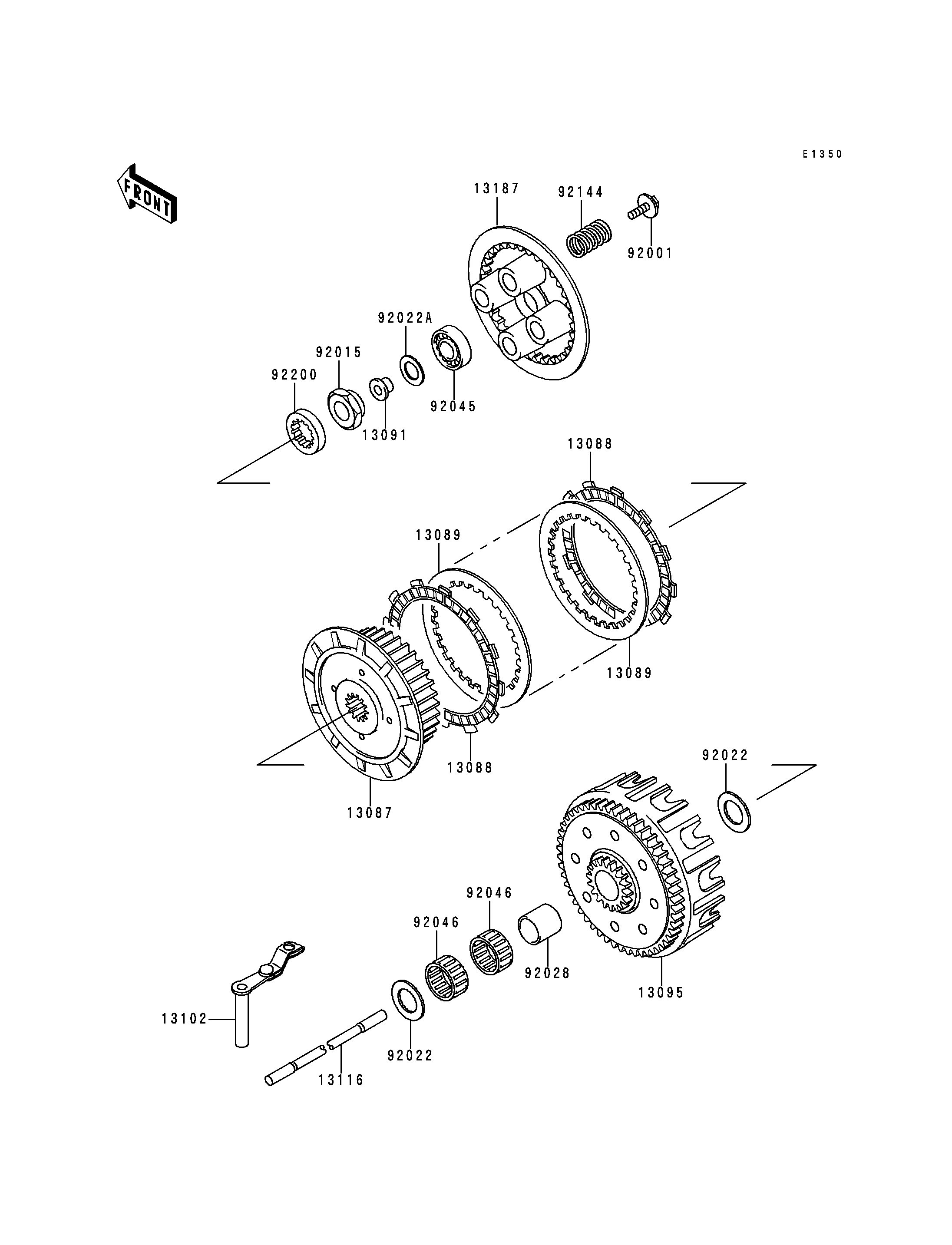

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1154 1
PLATE-FRICTION 13088 13088-1102 7
PLATE-CLUTCH,T=1.6 13089 13089-013 6
HOLDER 13091 13091-1907 1
HOUSING-COMP-CLUTCH 13095 13095-1296 1
RELEASE-COMP-CLUTCH 13102 13102-1127 1
ROD-PUSH 13116 13116-1146 1
PLATE-CLUTCH OPERATING 13187 13187-1065 1
BOLT,FLANGED,6X18 92001 92001-1066 4
NUT,M16 92015 92015-1910 1
WASHER,20.5X34X1.4 92022 92022-168 2
WASHER,12.3X20X0.5 92022A 92022-269 1
BUSHING 92028 92028-1700 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,K25X29X13 92046 92046-1220 2
SPRING,CLUTCH 92144 92144-1036 4
WASHER 92200 92200-1178 1
