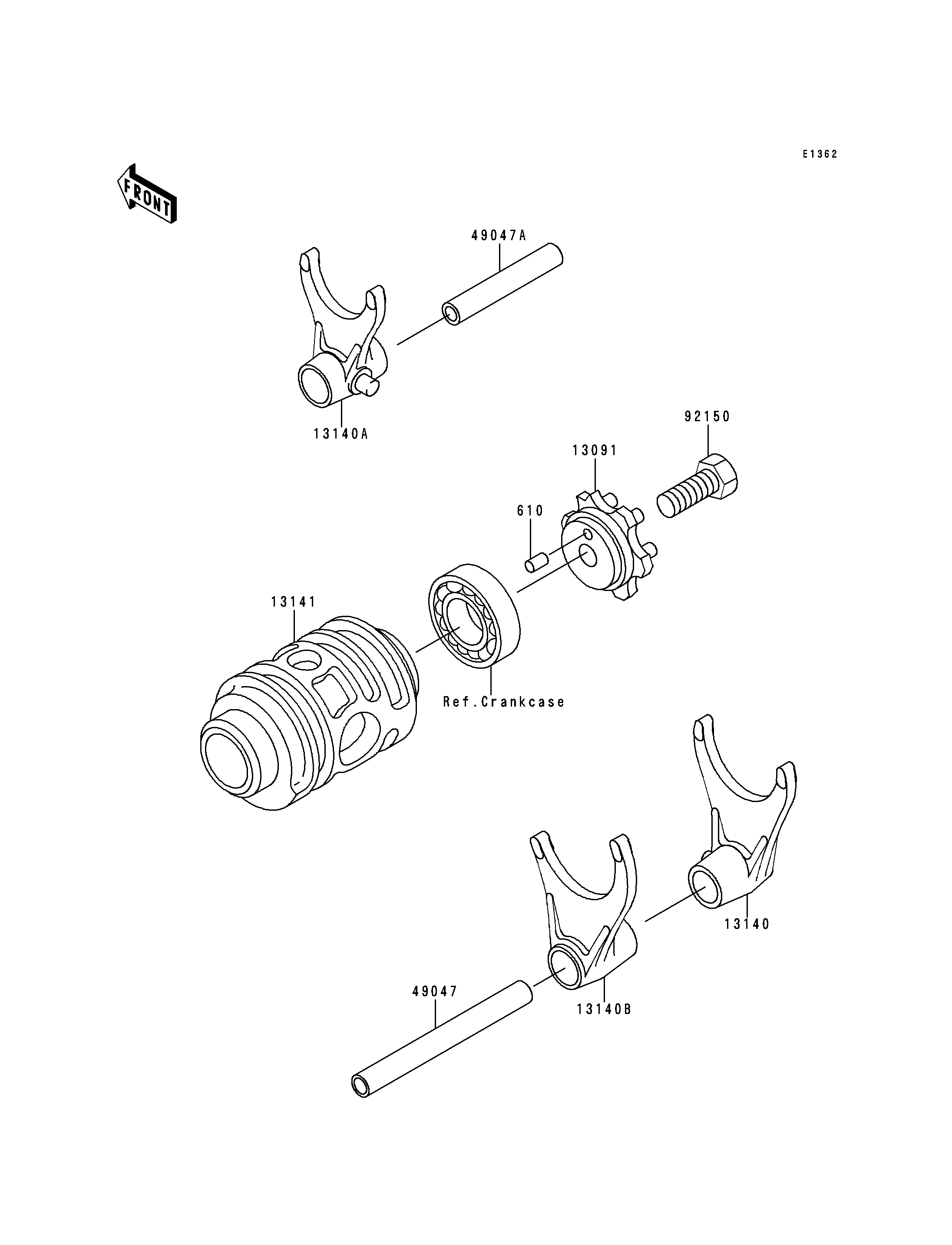

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
HOLDER,CHANGE 13091 13091-1838 1
FORK-SHIFT,51H&TOP 13140 13140-1219 1
FORK-SHIFT,2ND&3RD 13140A 13140-1221 1
FORK-SHIFT,LOW&4TH 13140B 13140-1245 1
DRUM-CHANGE 13141 13141-1188 1
ROD-SHIFT,L=94 49047 49047-1086 1
ROD-SHIFT,L=77.5 49047A 49047-1087 1
BOLT,8X18 92150 92150-1490 1
