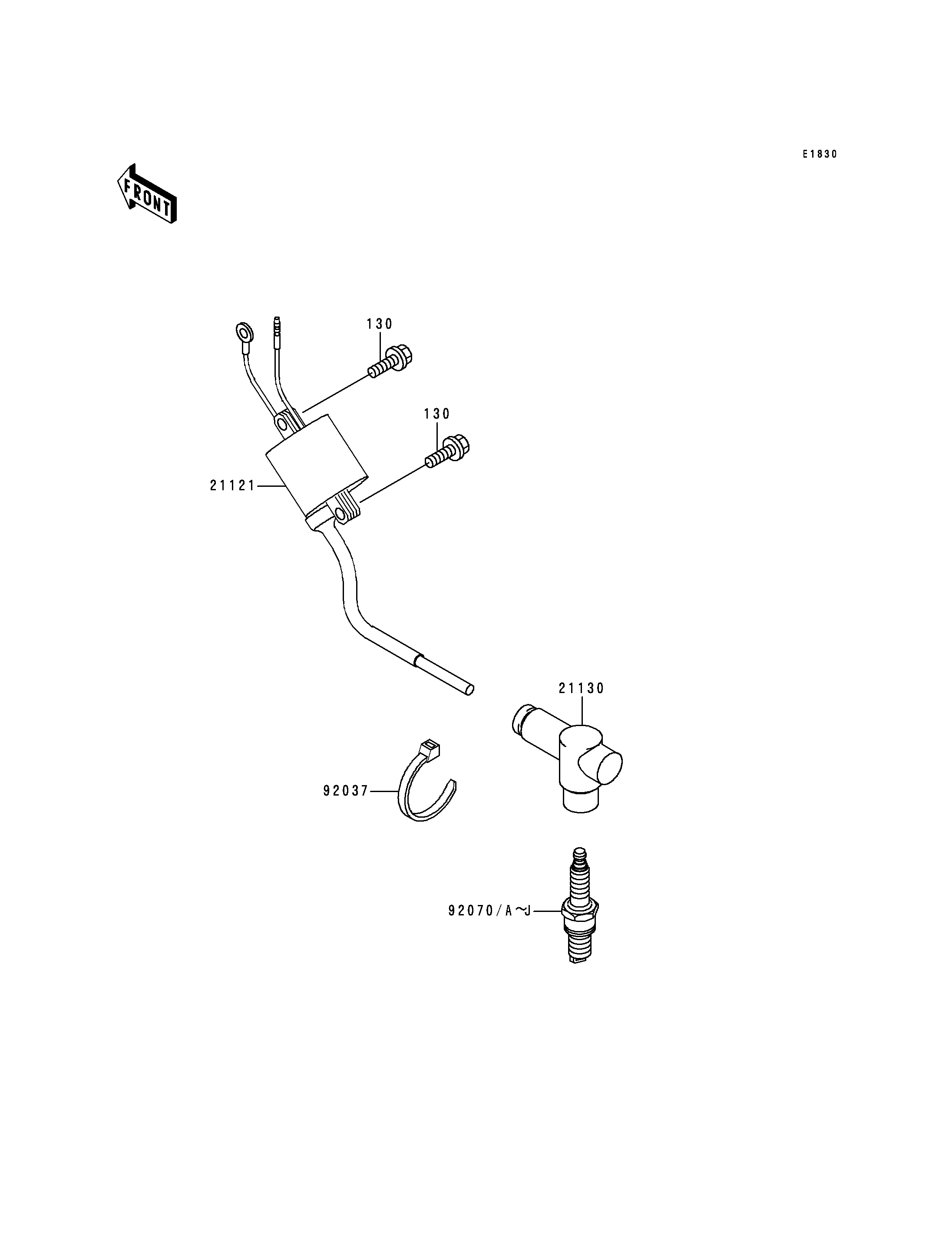

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0520 2
COIL-IGNITION 21121 21121-1247 1
CAP-SPARK PLUG 21130 21130-1073 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,R4630A-105(NGK) 92070 92070-1185 1 (OPTION)
PLUG-SPARK,B10EVX(NGK) 92070A 92070-1186 1 (OPTION)
PLUG-SPARK,W31ES-ZU(ND) 92070B 1
PLUG-SPARK,W31ESR-ZU(ND) 92070C 1 (OPTION)
PLUG-SPARK,R6252E-9(NGK) 92070D 92070-1197 1 (OPTION)
PLUG-SPARK,R6254E-9(NGK) 92070E 92070-1198 1 (OPTION)
PLUG-SPARK,R6254K-105(NGK) 92070F 92070-1204 1 (OPTION)
PLUG-SPARK,R6252K-105(NGK) 92070G 92070-1205 1 (OPTION)
PLUG-SPARK,R4630A-9(NGK) 92070H 92070-1206 1 (OPTION)
PLUG-SPARK,B9EVX(NGK) 92070I 92070-1212 1
PLUG-SPARK,BR9EVX(NGK) 92070J 92070-1213 1
