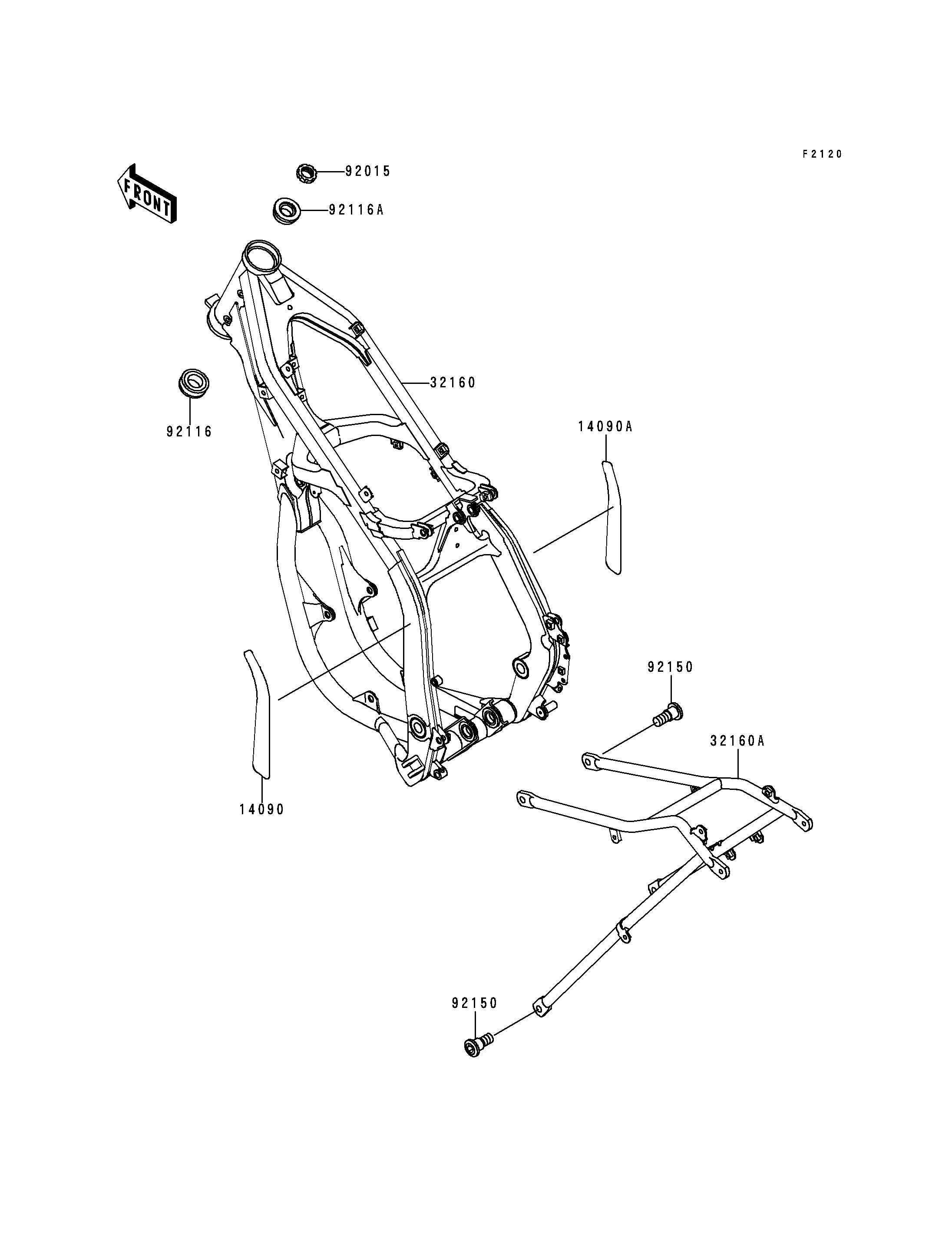

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LH 14090 14090-1474 1
COVER,RH 14090A 14090-1475 1
FRAME-COMP,FR,L.GREEN 32160 32160-1371-CC 1
FRAME-COMP,RR,L.GREEN 32160A 32160-1397-CC 1
NUT,STEERING STEM,28MM 92015 92015-1861 1
BEARING-ROLLER,HI-CAP32006JRRS 92116 92116-1069 1
BEARING-ROLLER,HI-CAP320/28JRR 92116A 92116-1076 1
BOLT,SOCKET,8X20 92150 92150-1839 4
