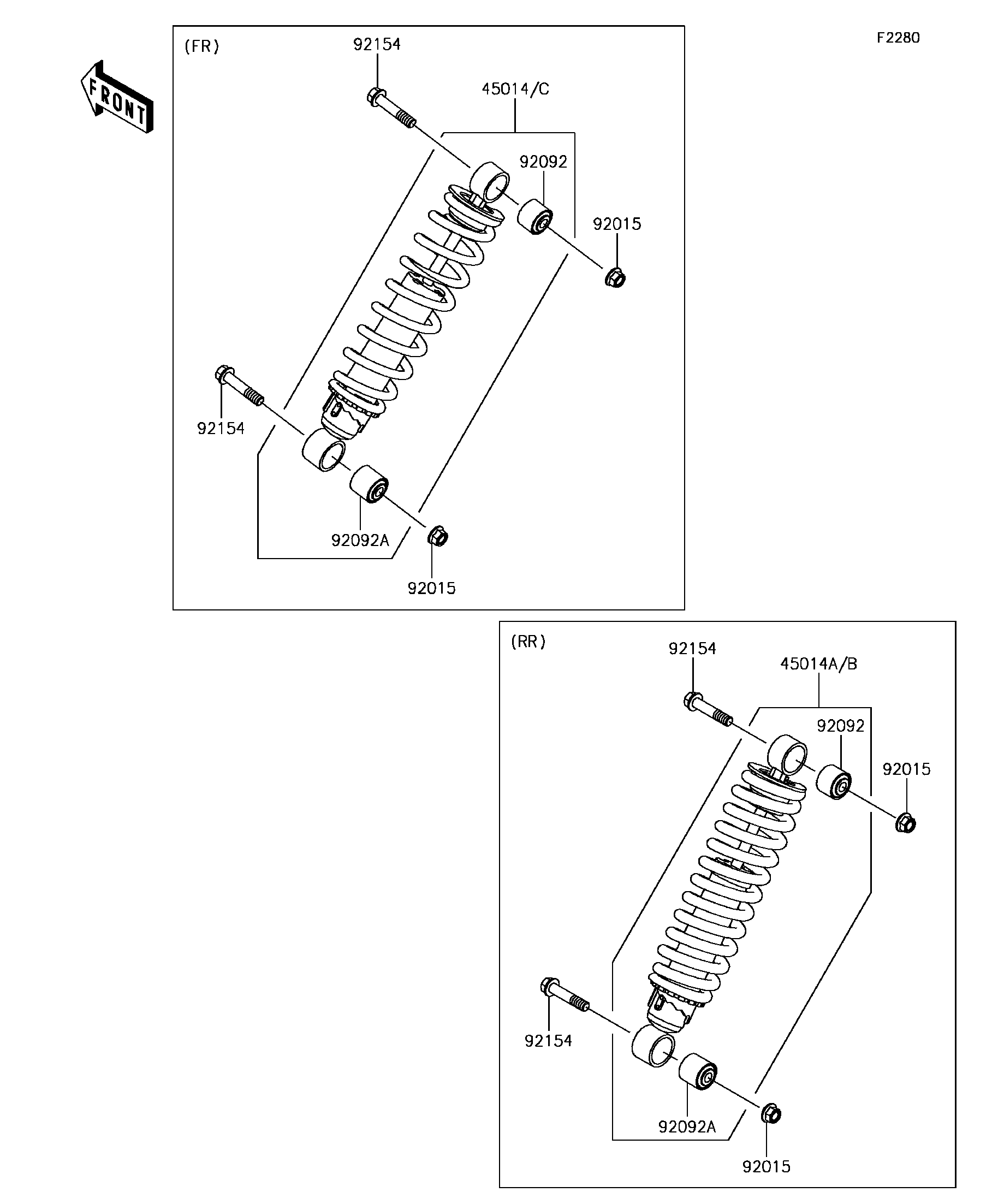

2017 Mule PRO-FXT EPS - Shock Absorber(s)
45014
45014A
45014B
45014C
92015
92015
92015
92015
92092
92092
92092A
92092A
92154
92154
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCKABSORBER,FR | 45014 | 45014-0536 | 2 | ( - JKBAFSB1 HB507795) | |
| SHOCKABSORBER,RR | 45014A | 45014-0537 | 2 | CN,US | |
| SHOCKABSORBER,RR | 45014B | 45014-0538 | 2 | CA | |
| SHOCKABSORBER,FR | 45014C | 45014-0558 | 2 | (JKBAFSB1 HB507796 - ) | |
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 8 | ||
| BUSHING-RUBBER,UPP | 92092 | 92092-0034 | 4 | ||
| BUSHING-RUBBER,LWR | 92092A | 92092-0035 | 4 | ||
| BOLT,FLANGED,12X58 | 92154 | 92154-1319 | 8 |
| SHOCKABSORBER,FR | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | ( - JKBAFSB1 HB507795) |
| SHOCKABSORBER,RR | |
| REF # | 45014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| SHOCKABSORBER,RR | |
| REF # | 45014B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| SHOCKABSORBER,FR | |
| REF # | 45014C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (JKBAFSB1 HB507796 - ) |
| NUT,LOCK,FLANGED,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,UPP | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,LWR | |
| REF # | 92092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X58 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
