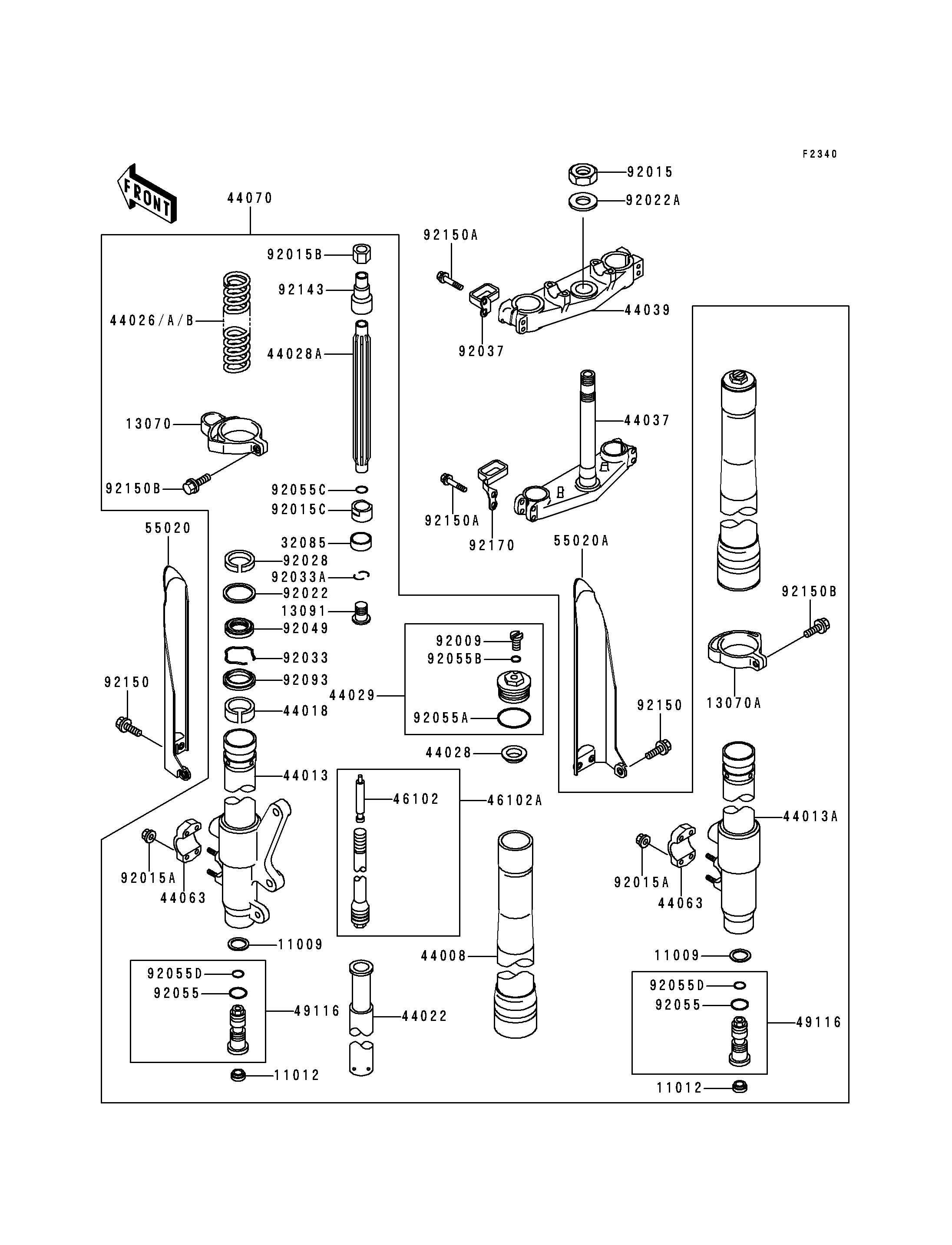

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET | 11009 | 11009-1791 | 2 | ||
CAP | 11012 | 11012-1692 | 2 | ||
GUIDE,PROTECTOR,LH | 13070 | 13070-1277 | 1 | ||
GUIDE,PROTECTOR,RH | 13070A | 13070-1278 | 1 | ||
HOLDER | 13091 | 13091-1651 | 2 | ||
STOPPER | 32085 | 32085-1323 | 2 | ||
PIPE-FORK OUTER,GOLD | 44008 | 44008-1033-14 | 2 | ||
PIPE-FORK INNER,LH | 44013 | 44013-1401 | 1 | ||
PIPE-FORK INNER,RH | 44013A | 44013-1402 | 1 | ||
PISTON-FORK,INNER PIPE | 44018 | 44018-1056 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1304 | 2 | ||
SPRING-FRONT FORK,K=0.38 | 44026 | 44026-1526 | 2 | ||
SPRING-FRONT FORK,K=0.365 | 44026A | 44026-1531 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=0.39 | 44026B | 44026-1533 | 2 | (OPTION) | |
GUIDE-FORK SPRING | 44028 | 44028-1081 | 2 | ||
GUIDE-FORK SPRING | 44028A | 44028-1094 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1156 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1329 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1226 | 1 | ||
HOLDER-FRONT AXLE | 44063 | 44063-1060 | 2 | ||
DAMPER-ASSY,FORK,GOLD | 44070 | 44070-1376-14 | 1 | ||
ROD,FORK,INNER | 46102 | 46102-1340 | 2 | ||
ROD,FORK,ASSY | 46102A | 46102-1380 | 2 | ||
VALVE-ASSY,FORK | 49116 | 49116-1134 | 2 | ||
GUARD,FORK,LH,WHITE | 55020 | 55020-1492-RZ | 1 | ||
GUARD,FORK,RH,WHITE | 55020A | 55020-1493-RZ | 1 | ||
SCREW | 92009 | 92009-1568 | 2 | ||
NUT,24MM | 92015 | 92015-1057 | 1 | ||
NUT,FLANGED,6MM | 92015A | 92015-1078 | 8 | ||
NUT | 92015B | 92015-1905 | 2 | ||
NUT | 92015C | 92015-1945 | 2 | ||
WASHER | 92022 | 92022-1299 | 2 | ||
WASHER,25X36X2.3 | 92022A | 92022-250 | 1 | ||
BUSHING | 92028 | 92028-1670 | 2 | ||
RING-SNAP | 92033 | 92033-1077 | 2 | ||
RING-SNAP | 92033A | 92033-1271 | 4 | ||
CLAMP | 92037 | 92037-1627 | 1 | ||
SEAL-OIL | 92049 | 92049-1373 | 2 | ||
RING-O,FORK | 92055 | 92055-1062 | 2 | ||
RING-O,FORK,AIR TUBE | 92055A | 92055-1333 | 2 | ||
RING-O | 92055B | 92055-1441 | 2 | ||
RING-O | 92055C | 92055-1442 | 2 | ||
RING-O,FORK VALVE | 92055D | 92055-1513 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1342 | 2 | ||
COLLAR,FORK | 92143 | 92143-1690 | 2 | ||
BOLT,6X12 | 92150 | 92150-1435 | 6 | ||
BOLT,FLANGED,8X40 | 92150A | 92150-1516 | 8 | ||
BOLT,5X16 | 92150B | 92150-1802 | 2 | ||
CLAMP | 92170 | 92170-1088 | 1 |
