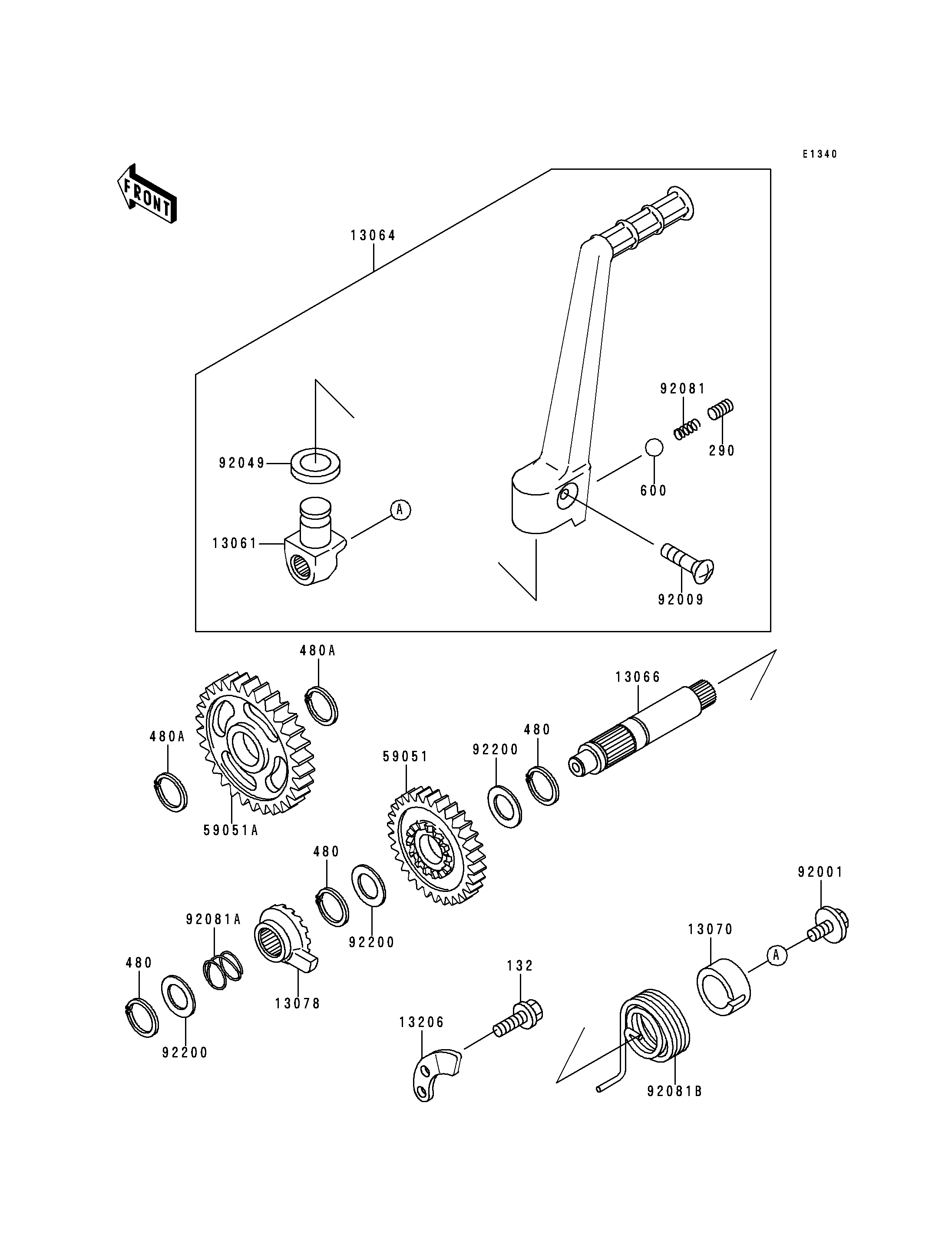

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
SCREW-SET-SOCKET | 290 | 290P0808 | 1 | ||
CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 3 | ||
CIRCLIP-TYPE-C,17MM | 480A | 480J1700 | 2 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
BOSS | 13061 | 13061-1353 | 1 | ||
LEVER-ASSY-KICK | 13064 | 13064-1158 | 1 | ||
SHAFT-KICK,STARTER | 13066 | 13066-1019 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1007 | 1 | ||
RATCHET | 13078 | 13078-1052 | 1 | ||
GUIDE-KICK | 13206 | 13206-1061 | 1 | ||
GEAR-SPUR,KICKSTARTER,30T | 59051 | 59051-1125 | 1 | ||
GEAR-SPUR,KICK IDLE,31T | 59051A | 59051-1295 | 1 | ||
BOLT,FLANGED,6X10 | 92001 | 92001-1034 | 1 | ||
SCREW,6X27 | 92009 | 92009-1607 | 1 | ||
SEAL-OIL,KICK PEDAL | 92049 | 92049-1387 | 1 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92081B | 92081-1768 | 1 | ||
WASHER,KICKSHAFT | 92200 | 92200-1209 | 3 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,17MM | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOSS | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK,STARTER | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-KICK | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICKSTARTER,30T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICK IDLE,31T | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X10 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X27 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,KICK PEDAL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICKSTARTER | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,KICKSHAFT | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
