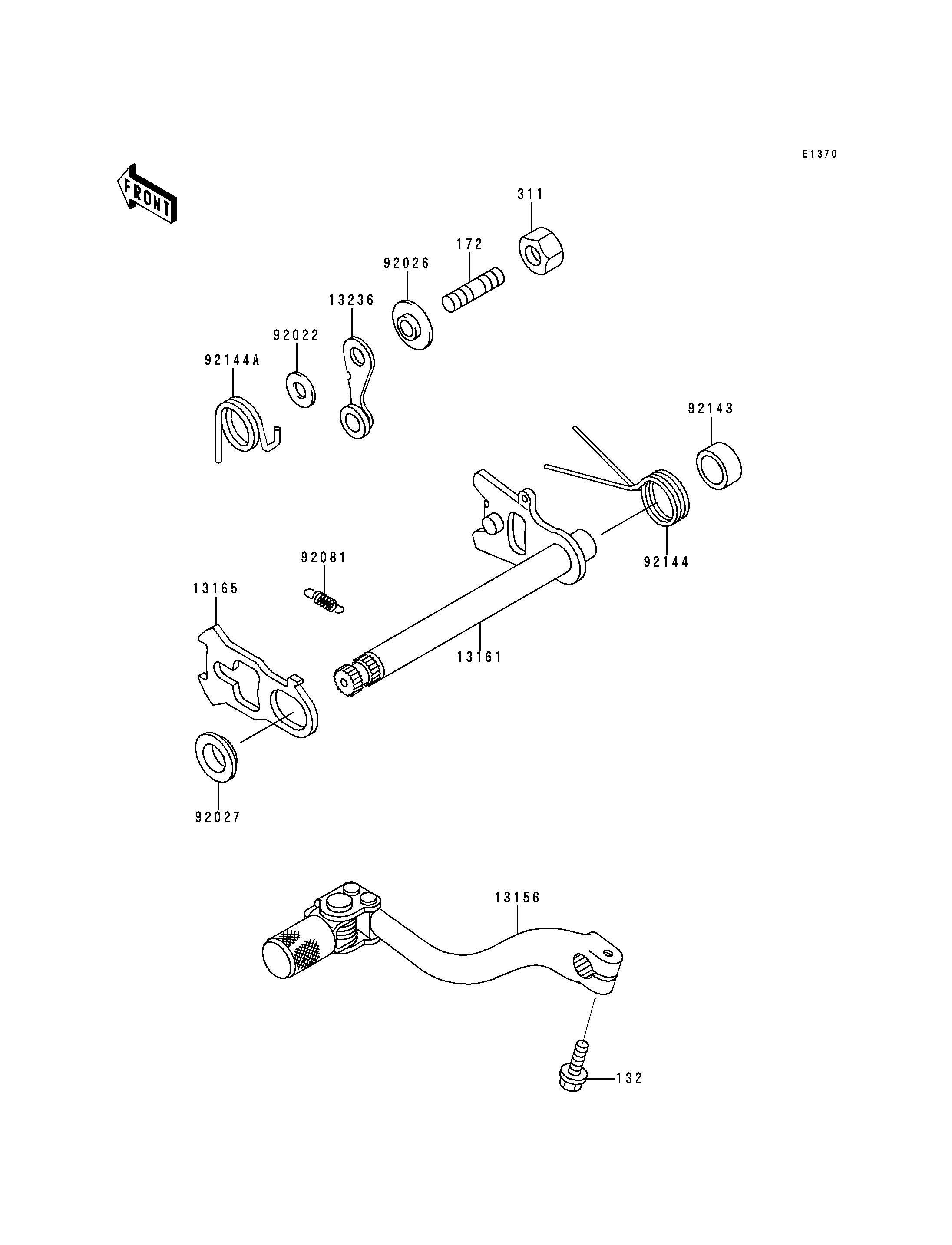

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-STUD,6X12 172 172G0612 1
NUT-HEX,6MM 311 311G0600 1
LEVER-CHANGE,PEDAL 13156 13156-1347 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1221 1
PAWL 13165 13165-1146 1
LEVER-COMP,POSITION 13236 13236-1253 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
COLLAR,CHANGE SHAFT,L=5.5 92027 92027-1512 1
SPRING,CHANGE LEVER 92081 92081-076 1
COLLAR 92143 92143-1148 1
SPRING,CHANGE SHAFT RETURN 92144 92144-1736 1
SPRING,LEVER POSITION 92144A 92144-1873 1
