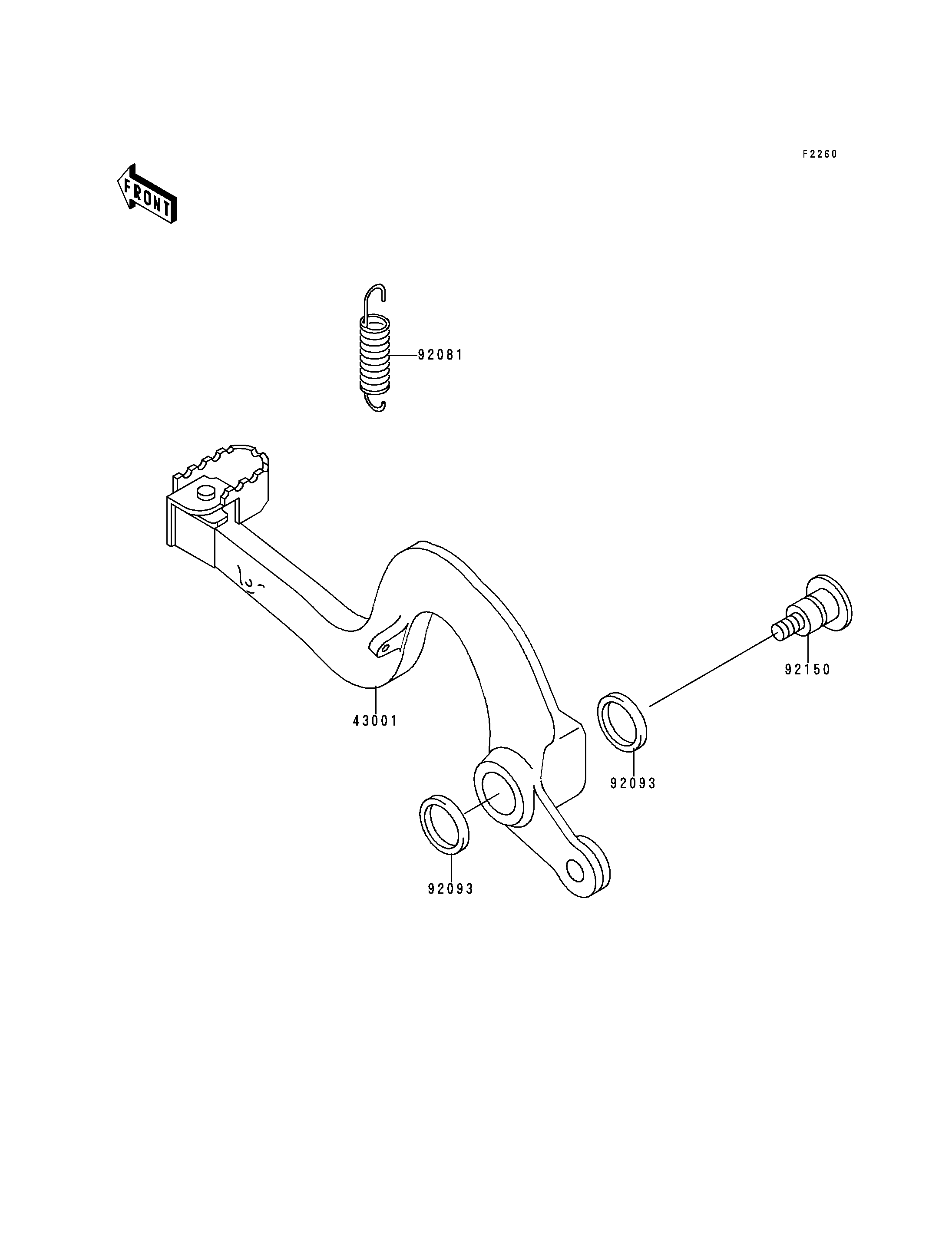

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1360 1
SPRING,BRAKE PEDAL RETURN 92081 92081-1932 1
SEAL,MY 16X20X2.8 92093 92093-1386 2
BOLT 92150 92150-1832 1
