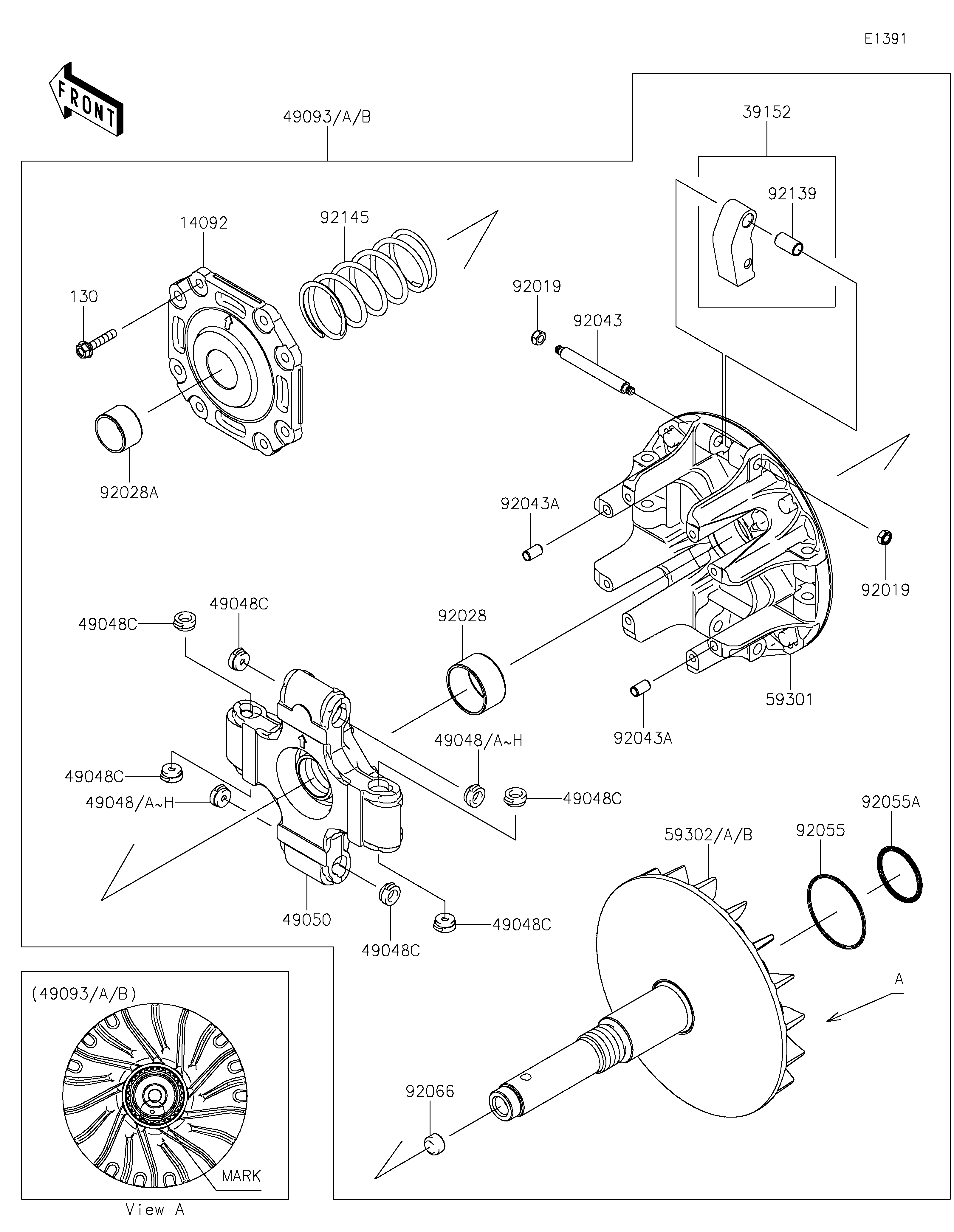

2019 MULE PRO-DXT™ EPS DIESEL - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
130
14092
39152
49048
49048
49048A
49048A
49048B
49048B
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048D
49048D
49048E
49048E
49048F
49048F
49048G
49048G
49048H
49048H
49050
49093
49093A
49093B
59301
59302
59302A
59302B
92019
92019
92028
92028A
92043
92043A
92043A
92055
92055A
92066
92139
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130CA0630 8
COVER 14092 14092-1201 1
WEIGHT-RAMP 39152 39152-0043 4
SHOE,T=7.2 49048 49048-1087 AR
SHOE,T=7.3 49048A 49048-1088 AR
SHOE,T=7.4 49048B 49048-1089 AR
SHOE,T=7.5 49048C 49048-1090 8
SHOE,T=7.6 49048D 49048-1091 AR
SHOE,T=7.7 49048E 49048-1092 AR
SHOE,T=7.8 49048F 49048-1093 AR
SHOE,T=7.9 49048G 49048-1094 AR
SHOE,T=8.0 49048H 49048-1095 AR
SPIDER 49050 49050-1083 1
CONVERTER-DRIVE,B MARK,WHITE 49093 49093-0050 1
CONVERTER-DRIVE,A MARK,BLUE 49093A 49093-0069 1
CONVERTER-DRIVE,C MARK,YELLOW 49093B 49093-0070 1
SHEAVE-MOVABLE 59301 59301-0025 1
SHEAVE-COMP,B MARK,WHITE 59302 59302-0092 1
SHEAVE-COMP,A MARK,BLUE 59302A 59302-0093 1
SHEAVE-COMP,C MARK,YELLOW 59302B 59302-0094 1
NUT,LOCK,6MM 92019 92019-008 8
BUSHING 92028 92028-1975 1
BUSHING 92028A 92028-1980 1
PIN 92043 92043-0809 4
PIN,6.2X8X14 92043A 92043-1263 2
RING-O,59.5X2.4 92055 92055-0753 1
RING-O,3.5X39.7 92055A 92055-0789 1
PLUG 92066 92066-0784 1
BUSHING,9X11X19.75 92139 92139-1103 4
SPRING 92145 92145-1670 1
