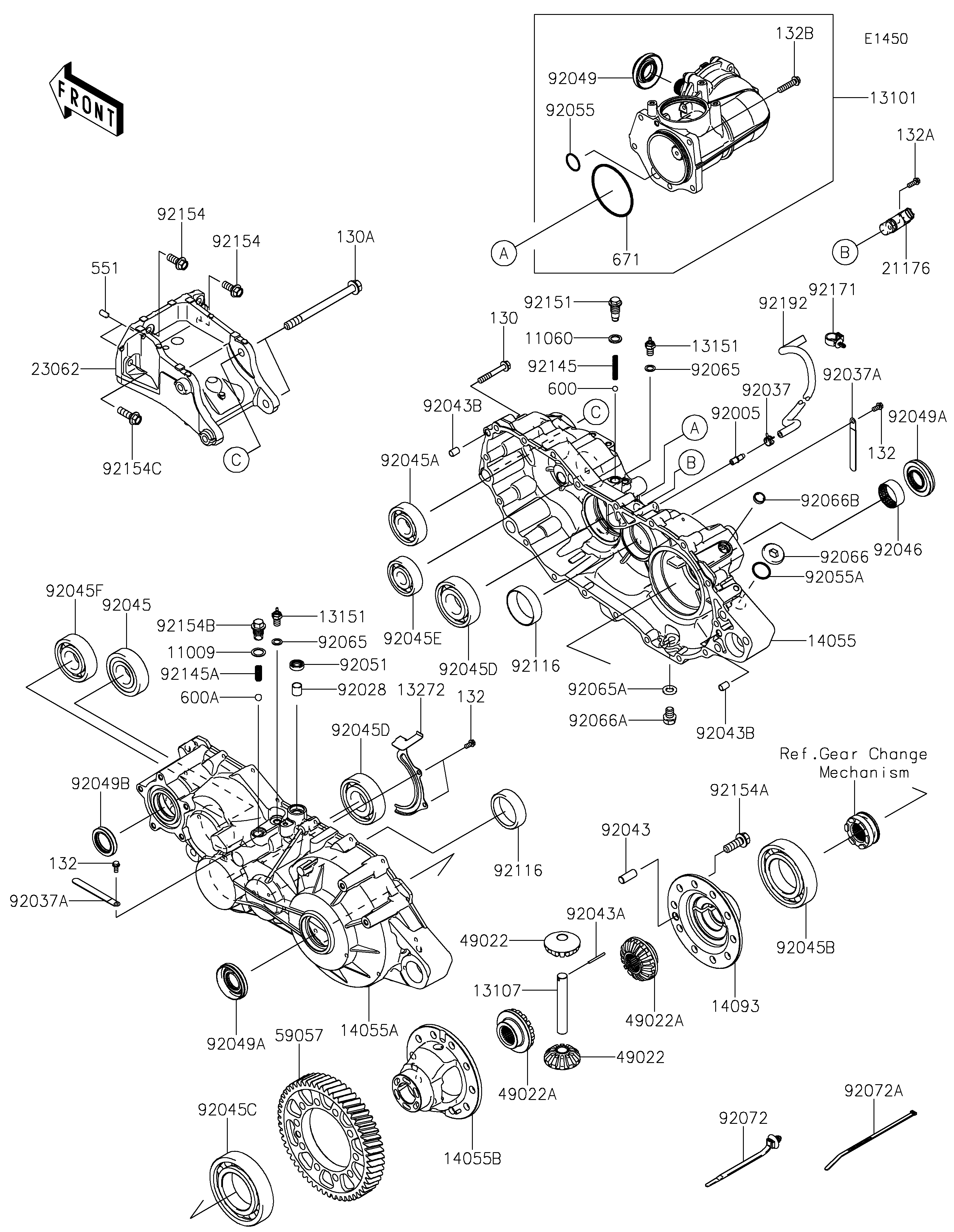

2019 MULE PRO-DXT™ EPS DIESEL - Gear Box

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11060
11060
13101
13101
13107
13107
13151
13151
13151
13151
13272
13272
14055
14055
14055A
14055A
14055B
14055B
14093
14093
21176
21176
23062
23062
49022
49022
49022
49022
49022A
49022A
49022A
49022A
59057
59057
92005
92005
92028
92028
92037
92037
92037A
92037A
92037A
92037A
92043
92043
92043A
92043A
92043B
92043B
92043B
92043B
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92045D
92045D
92045D
92045D
92045E
92045E
92045F
92045F
92046
92046
92049
92049
92049A
92049A
92049A
92049A
92049B
92049B
92051
92051
92055
92055
92055A
92055A
92065
92065
92065
92065
92065A
92065A
92066
92066
92066A
92066A
130
130
130A
130A
132
132
132
132
132
132
132A
132A
132B
132B
551
551
600
600
600A
600A
671
671
92066B
92066B
92072
92072
92072A
92072A
92116
92116
92116
92116
92145
92145
92145A
92145A
92151
92151
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92171
92171
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,15.5X22X1 11009 11009-1008 1
GASKET,14X20X2 11060 11060-1287 1
GEAR-ASSY,PARTICULAR 13101 13101-0636 1
SHAFT 13107 13107-0793 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 2
PLATE 13272 13272-1624 1
CASE-GEAR,RH 14055 14055-0607 1
CASE-GEAR,LH 14055A 14055-0608 1
CASE-GEAR,DIFF 14055B 14055-0614 1
COVER,DIFF 14093 14093-0048 1
SENSOR,ROTATION 21176 21176-0767 1
BRACKET-COMP 23062 23062-0855 1
GEAR-BEVEL,PINION,12T 49022 49022-0585 2
GEAR-BEVEL,OUTPUT,16T 49022A 49022-0589 2
GEAR-HELICAL,55T 59057 59057-0012 1
FITTING,BREATHER 92005 92005-1127 1
BUSHING 92028 92028-1347 1
CLAMP,TUBE 92037 92037-1505 1
CLAMP 92037A 92037-1993 2
PIN,DOWEL,12X30 92043 92043-0789 1
PIN,DOWEL 92043A 92043-0806 1
PIN,DOWEL,10X14 92043B 92043-1037 2
BEARING-BALL,63/32 92045 92045-0764 1
BEARING-BALL,63/28 92045A 92045-0765 1
BEARING-BALL,6212 92045B 92045-0766 1
BEARING-BALL,6213 92045C 92045-0767 1
BEARING-BALL,6307C3 92045D 92045-0768 2
BEARING-BALL,B22-19C3 UR 92045E 92045-0769 1
BEARING-BALL,63/32C3 92045F 92045-1364 1
BEARING-NEEDLE,BTM35.6 92046 92046-0612 1
SEAL-OIL 92049 92049-0160 1
SEAL-OIL 92049A 92049-0749 2
SEAL-OIL,TC32488 92049B 92049-1361 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,1.9X26.2 92055 92055-0782 1
RING-O,25.7X2.4 92055A 92055-1136 1
GASKET,10.5X16X1 92065 92065-058 2
GASKET,12X22X2 92065A 92065-097 1
PLUG,25X8 92066 92066-0012 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
BOLT-FLANGED,8X55 130 130BA0855 18
BOLT-FLANGED,12X150 130A 130CA12150 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 4
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 1
BOLT-FLANGED-SMALL,8X35 132B 132BA0835 5
PIN-DOWEL,8X14 551 551A0814 2
BALL-STEEL,5/16 600 600A1000 1
BALL-STEEL,13/32 600A 600A1300 1
O RING 671 671D2585 1
PLUG 92066B 92066-7014 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BAND,L=292.1 92072A 92072-3509 AR
BEARING-ROLLER,HR32206JA LC 92116 92116-0008 2
SPRING 92145 92145-1589 1
SPRING 92145A 92145-1590 1
BOLT,CHANGE POSITION 92151 92151-1687 1
BOLT,FLANGED,10X25 92154 92154-1329 3
BOLT,FLANGED,12X35 92154A 92154-1332 10
BOLT,CHANGE POSITION 92154B 92154-1366 1
BOLT,FLANGED,10X32 92154C 92154-1740 1
CLAMP 92171 92171-0453 1
TUBE,BREATHER 92192 92192-1340 1
