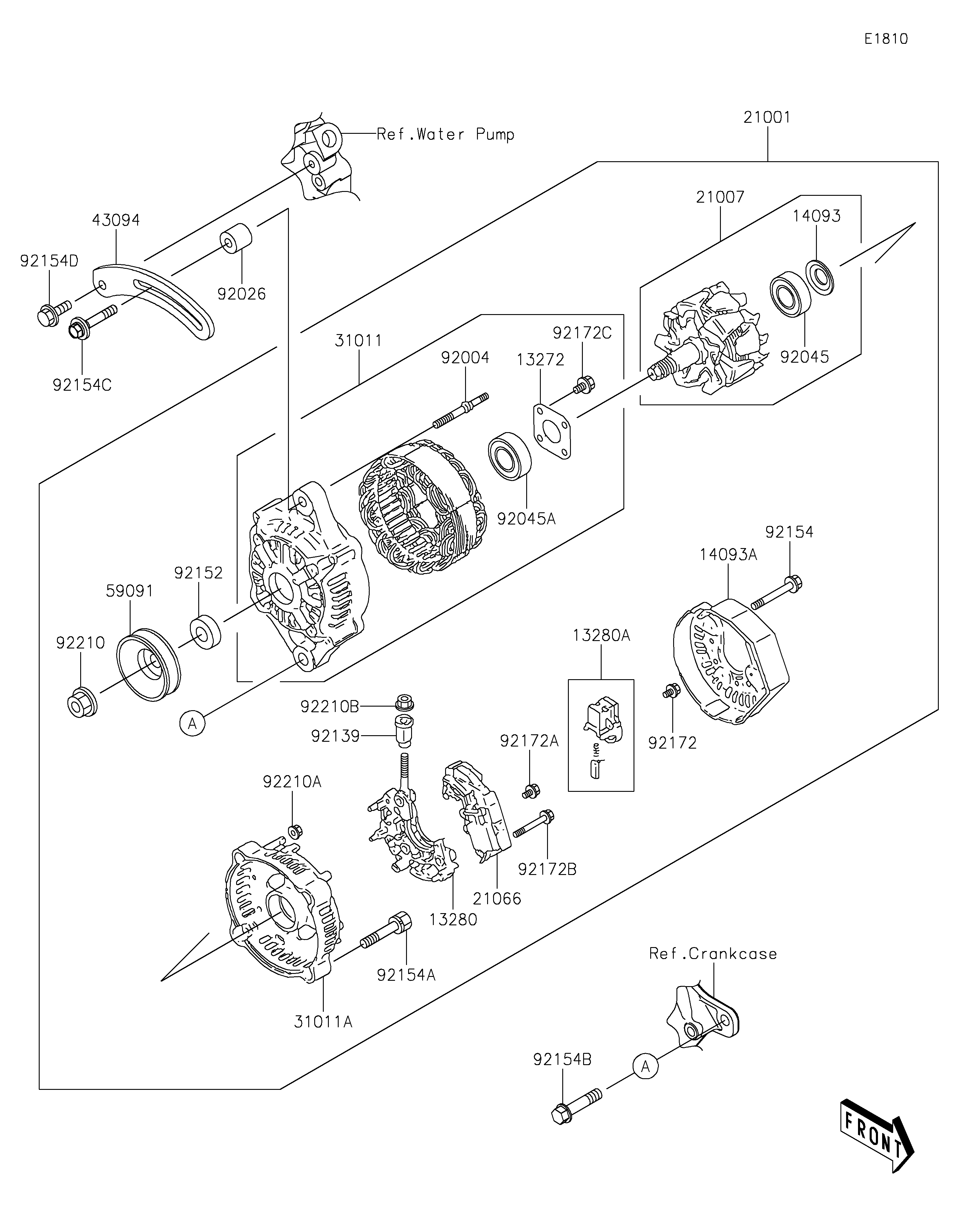

2019 MULE PRO-DXT™ EPS DIESEL - Generator

DOWNLOAD PDF
SELECT A NEW PART
13272
13280
13280A
14093
14093A
21001
21007
21066
31011
31011A
43094
59091
92004
92026
92045
92045A
92139
92152
92154
92154A
92154B
92154C
92154D
92172
92172A
92172B
92172C
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,RETAINER 13272 13272-2135 1
HOLDER 13280 13280-0864 1
HOLDER,BRUSH 13280A 13280-0865 1
COVER 14093 14093-0450 1
COVER 14093A 14093-0451 1
GENERATOR 21001 21001-0613 1
ROTOR 21007 21007-0637 1
REGULATOR-VOLTAGE 21066 21066-0749 1
FRAME 31011 31011-0027 1
FRAME 31011A 31011-0028 1
ADJUSTER 43094 43094-0007 1
PULLEY 59091 59091-0015 1
STUD 92004 92004-0751 2
SPACER 92026 92026-0821 1
BEARING-BALL 92045 92045-0812 1
BEARING-BALL 92045A 92045-0816 1
BUSHING 92139 92139-0861 1
COLLAR 92152 92152-2198 1
BOLT 92154 92154-2074 3
BOLT 92154A 92154-2075 2
BOLT,FLANGED,10X45 92154B 92154-2076 1
BOLT 92154C 92154-2077 1
BOLT,FLANGED,8X20 92154D 92154-2078 1
SCREW 92172 92172-0989 6
SCREW 92172A 92172-0990 1
SCREW 92172B 92172-0991 2
SCREW 92172C 92172-1096 4
NUT 92210 92210-1474 1
NUT 92210A 92210-1475 2
NUT 92210B 92210-1476 1
